Is the SAFLOKÂ® D socket with GW BSP, stainless steel compatible with other CAMLOCK couplings made to MIL-C-27487?

Yes. The SAFLOKÂ® D socket with GW BSP, stainless steel is compatible with other CAMLOCK couplings made to the MIL-C-27487 standard. It features spring-loaded latches in the levers for accidental-disconnection protection, uses AISI 316 stainless steel, NBR sealing, and is available in spare parts (levers with latches and pins). Pressure ratings: 20 bar for sizes 1/2"â2", 10 bar for 2Â½"â4". Temperature range: -40Â°C to +93Â°C.

Does the SAFLOKÂ® D socket with GW BSP, stainless steel require special maintenance for its springâloaded latches?

The SAFLOKÂ® D socket with GW BSP, stainless steel does not require special maintenance for its springâloaded latches beyond normal preventive care. The latches automatically lock when the lever is closed and must be pulled back to open; periodic inspection, cleaning of debris, light lubrication of moving parts (compatible with NBR seals and AISI 316), and checking for wear or damaged levers/pins is recommended. If latches or levers show wear or damage, replace them with available spare parts (levers with latches and pins). Regular checks help ensure reliable operation within specified pressure and temperature ranges.

Can the SAFLOKÂ® D socket with GW BSP, stainless steel be used with different seal materials for higher temperature ranges?

The SAFLOKÂ® D socket with GW BSP, stainless steel is supplied with NBR seals and specified operating temperature from â40Â°C to +93Â°C. Using different seal materials to extend the temperature range is technically possible in many CAMLOCK designs, but depends on compatibility with the coupling bore, chemical media, and available spare parts. Practical points: - Higher temperature service typically requires elastomers with better heat resistance (e.g., EPDM, FKM/Viton, Silicone, PTFE-based seals). These can raise maximum operating temperatures but each has different chemical compatibility and mechanical properties. - Confirm dimensional and fit compatibility: replacement seals must match the original groove/profile for reliable sealing. - Check chemical compatibility of the chosen material with the fluids being handled. - Verify pressure and mechanical limits remain acceptable at higher temperatures (elastomer mechanical properties change with heat). - Use only manufacturer-approved replacement seals or verified equivalents to avoid warranty/ safety issues. Recommendation: Contact the supplier/manufacturer with the exact operating temperature, fluid, and coupling size to obtain approved alternative seal materials or spare-part part numbers suitable for higher temperatures.

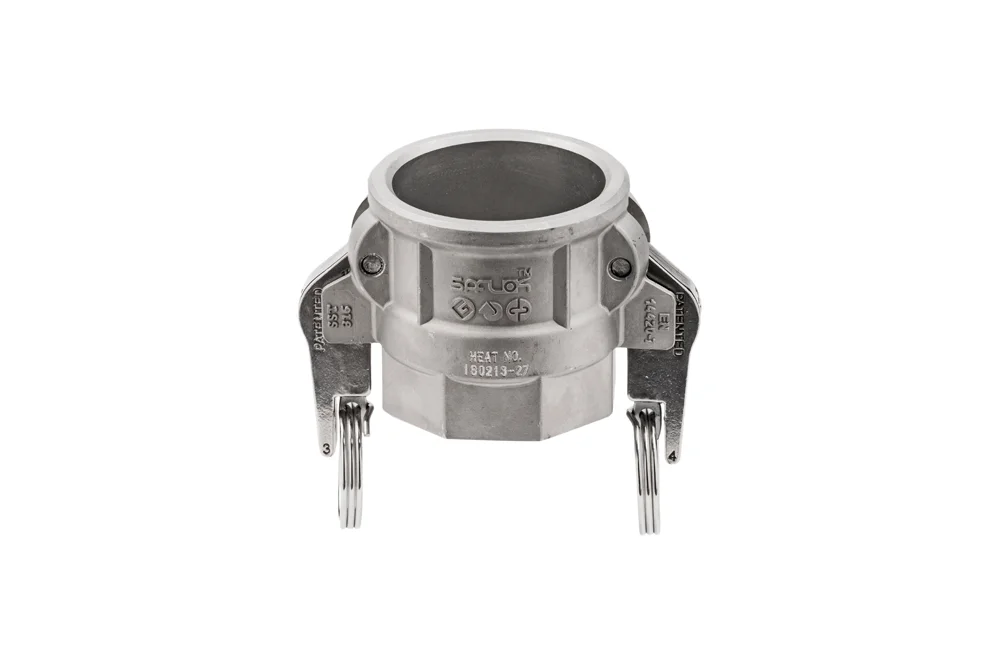

SAFLOK® D socket with GW BSP, stainless steel

Additional information

Material	SS – stainless steel

The SAFLOK® D socket with BSP internal thread is a variant of the CAMLOCK coupling with protection against accidental disconnection. The protection consists of spring-loaded latches located in the levers of the socket. During the closing of the lever, the latches automatically lock. Unlocking when opening requires pulling back the latches. The SAFLOK® D socket is compatible with other CAMLOCK couplings made according to the MIL-C-27487 standard. Spare parts are available: levers with latches and pins. The coupling size 1/2″ has a thread of 1/2″ and a socket of 3/4″. Material: AISI 316 steel. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-SL-D-050	SAFLOK D 1/2"" socket	-	20	In stock	Enquiry
AC-SL-D-075	SAFLOK D 3/4" socket	-	20	In stock	Enquiry
AC-SL-D-100	SAFLOK D 1 socket	-	20	In stock	Enquiry
AC-SL-D-125	SAFLOK D 1.1/4" socket	-	20	In stock	Enquiry
AC-SL-D-150	SAFLOK D 1.1/2"" socket	-	20	In stock	Enquiry
AC-SL-D-200	SAFLOK D 2"" socket	-	20	In stock	Enquiry
AC-SL-D-250	SAFLOK D 2.1/2"" socket	-	10	In stock	Enquiry
AC-SL-D-300	SAFLOK D 3 socket	-	10	In stock	Enquiry
AC-SL-D-400	SAFLOK D 4"" socket	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The SAFLOK® D socket with BSP internal thread is a variant of the CAMLOCK coupling with protection against accidental disconnection. The protection consists of spring-loaded latches located in the levers of the socket. During the closing of the lever, the latches automatically lock. Unlocking when opening requires pulling back the latches. The SAFLOK® D socket is compatible with other CAMLOCK couplings made according to the MIL-C-27487 standard. Spare parts are available: levers with latches and pins. The coupling size 1/2″ has a thread of 1/2″ and a socket of 3/4″. Material: AISI 316 steel. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.
