Can the SNAP-TITE quick connect plug with GW BSP with valve, brass, H series be used with hydraulic oil at 155 bar and which seal (NBR or Viton) should I choose?

Yes . the SNAP-TITE quick connect plug with GW BSP with valve, brass, H series can be used with hydraulic oil at up to 155 bar (rating depends on coupling size; product spec lists working pressure up to 155 bar with a 2:1 safety factor). For the seal choice: use NBR (nitrile) for standard hydraulic oils when operating temperature is between â35Â°C and +120Â°C. Choose Viton (FKM) if system temperatures may reach above +120Â°C (Viton rated â26Â°C to +204Â°C) or if the oil contains aggressive additives/fluids incompatible with NBR. If temperatures and fluid compatibility fall within NBR limits, NBR is the typical, cost-effective choice; if higher temperatures or chemical compatibility is a concern, select Viton.

Can the SNAP-TITE quick connect plug with GW BSP with valve, brass, H series handle steam applications and which seal (NBR or Viton) is recommended?

Yes. The SNAP-TITE quick connect plug with GW BSP with valve, brass, H series can handle steam applications, provided you choose the appropriate seal. Use Viton for steam - it withstands higher temperatures (â26Â°C to +204Â°C) vs NBR (â35Â°C to +120Â°C). Also confirm your operating temperature and pressure (unit rated up to 155 bar depending on size) and the specific steam conditions to ensure compatibility and safety.

Can the SNAP-TITE quick connect plug with GW BSP with valve, brass, H series be used for chemical or gas service and which seal is best?

The SNAP-TITE quick connect plug with GW BSP with valve, brass, H series can be used for certain chemical and gas services, but suitability depends on the specific media and operating conditions. Key points: - Materials: body is brass; seals available in NBR (nitrile) and Viton (FKM). - Applications listed include gases and chemicals, so the design and materials permit such use in many cases. - NBR: temperature range â35Â°C to +120Â°C, good for many oils, fuels and non-aggressive chemicals, but poor resistance to strong aromatics, ketones, some chlorinated solvents and high-temperature or aggressive chemical environments. - Viton (FKM): temperature range â26Â°C to +204Â°C, superior chemical resistance (stronger against fuels, oils, many acids, solvents and higher temperatures) and generally the better choice for aggressive chemicals and many gas services. - Brass body: suitable for many industrial fluids and gases but can be susceptible to dezincification or corrosion in highly corrosive or ammonia-containing environments; stainless steel would be preferred for very aggressive chemicals or corrosive gases. Recommendation: - For general gas service and most hydrocarbons, fuels and oils: SNAP-TITE quick connect plug with GW BSP with valve, brass, H series with Viton seals is recommended for broader chemical compatibility and higher temperature limits. - For non-aggressive fluids at lower temperatures where cost is a concern: NBR may be acceptable. - For specific or highly aggressive chemicals, corrosive gases, or where dezincification risk exists, verify compatibility with the fluid and consider using a stainless-steel coupling or consulting the manufacturer and chemical compatibility charts before use.

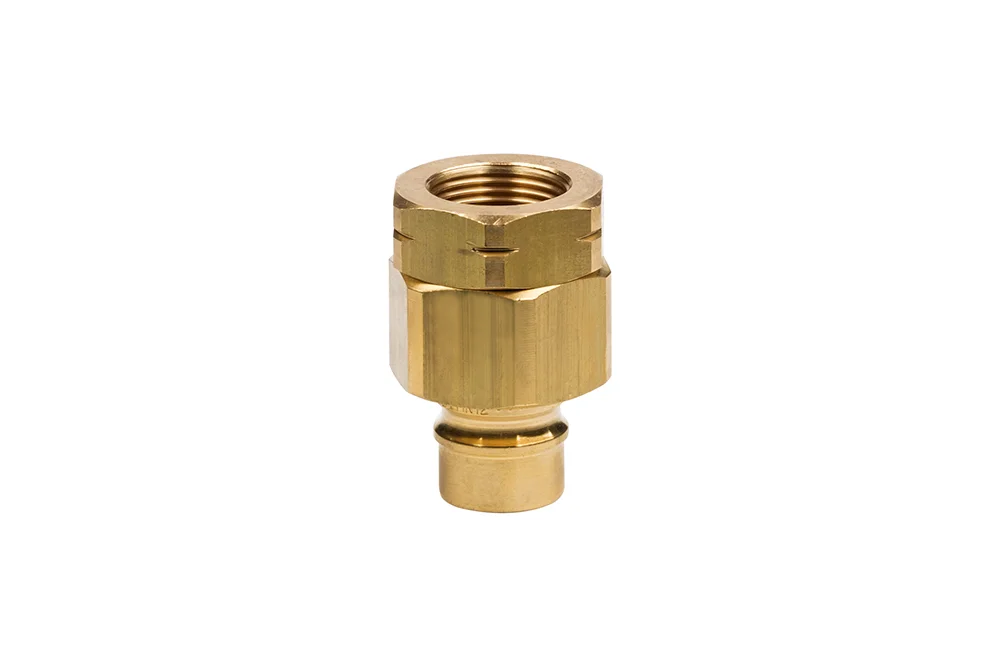

Quick-coupling plug SNAP-TITE with female thread BSP with a valve, brass, H series

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)

Quick-coupling plug SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 155 bar (depending on the quick-coupling size), Safety factor 2:1. Material: brass. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SN-BVHN12-12RP	Plug H 3/4", 3/4" BSP female, brass	-	138	In stock	Enquiry
SN-BVHN12-12RPV	Plug H 3/4", 3/4" BSP female, brass, Viton	-	138	In stock	Enquiry
SN-BVHN16-16RPV	Plug H 1", 1" BSP female, brass, Viton	-	121	In stock	Enquiry
SN-BVHN20-20RPV	Plug H 1.1/4", 1.1/4" BSP female, brass, Viton	-	24	In stock	Enquiry
SN-BVHN24-24RP	Plug H 1.1/2", 1.1/2" BSP female, brass	-	24	In stock	Enquiry
SN-BVHN24-24RPV	Plug H 1.1/2", 1.1/2" BSP female, brass, Viton	-	24	In stock	Enquiry
SN-BVHN32-32RP	Plug H 2", 2" BSP female, brass	-	28	In stock	Enquiry
SN-BVHN4-4RP	Plug H 1/4", 1/4" BSP female, brass	-	155	In stock	Enquiry
SN-BVHN4-4RPV	Plug H 1/4", 1/4" BSP female, brass, Viton	-	155	In stock	Enquiry
SN-BVHN6-6RP	Plug H 3/8", 3/8" BSP female, brass	-	155	In stock	Enquiry
SN-BVHN6-6RPV	Plug H 3/8", 3/8" BSP female, brass, Viton	-	155	In stock	Enquiry
SN-BVHN8-8RP	Plug H 1/2", 1/2" BSP female, brass	-	138	In stock	Enquiry
SN-BVHN8-8RPV	Plug H 1/2", 1/2" BSP female, brass, Viton	-	138	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling plug SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 155 bar (depending on the quick-coupling size), Safety factor 2:1. Material: brass. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.
