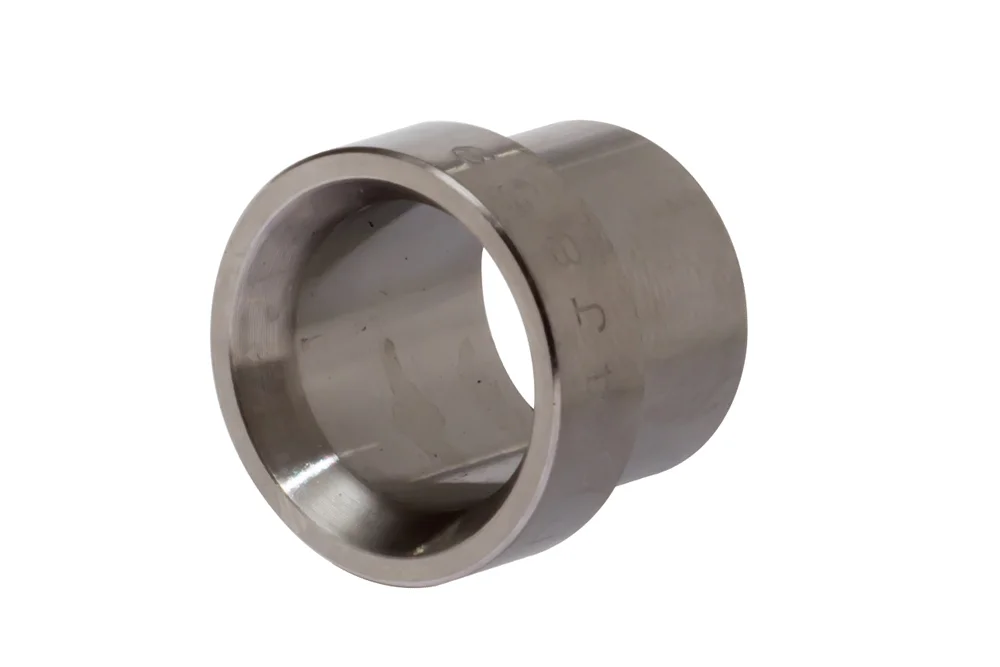

Stainless steel pressure sleeve, type FM

Additional information

Material	SS – stainless steel

Pressure sleeve, type FM, placed in the nut, allows for proper compression of the metric pipe to the fitting (coupling). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-FM-06-SS	6 mm bushing, AISI 316	6	-	In stock	Enquiry
HJ-FM-08-SS	8 mm bushing, AISI 316	8	-	In stock	Enquiry
HJ-FM-10-SS	10 mm bushing, AISI 316	10	-	In stock	Enquiry
HJ-FM-12-SS	12 mm bushing, AISI 316	12	-	In stock	Enquiry
HJ-FM-14-SS	14 mm bushing, AISI 316	14	-	In stock	Enquiry
HJ-FM-15-SS	15 mm bushing, AISI 316	16	-	In stock	Enquiry
HJ-FM-16-SS	16 mm bushing, AISI 316	16	-	In stock	Enquiry
HJ-FM-18-SS	18 mm bushing, AISI 316	18	-	In stock	Enquiry
HJ-FM-20-SS	20 mm bushing, AISI 316	20	-	In stock	Enquiry
HJ-FM-25-SS	25 mm sleeve, AISI 316	25	-	In stock	Enquiry
HJ-FM-30-SS	30 mm sleeve, AISI 316	30	-	In stock	Enquiry
HJ-FM-32-SS	32 mm bushing, AISI 316	32	-	In stock	Enquiry
HJ-FM-38-SS	38 mm sleeve, AISI 316	38	-	In stock	Enquiry
