What is the maximum working pressure and temperature for the Steam hose end with GW, steel/galvanized cast iron GF BOSS?

Steam hose end with GW, steel/galvanized cast iron GF BOSS Format . maximum working pressure is 18 bar for saturated steam at up to +210Â°C. The operating temperature capability is up to +230Â°C.

Can the Steam hose end with GW, steel/galvanized cast iron GF BOSS be used with non-steam fluids at high temperatures?

Steam hose end with GW, steel/galvanized cast iron GF BOSS Format is designed and rated for saturated steam service (working pressure 18 bar at +210Â°C, max temperature +230Â°C) with a conical polymer or copper insert ensuring a steam-tight highâtemperature seal. Use with nonâsteam fluids at high temperatures is possible only if those fluids are chemically compatible with the materials (galvanized steel/cast iron, polymer or copper insert) and within the same pressure/temperature limits. Avoid aggressive chemicals, oils or fluids that attack galvanizing, cast iron, copper or the polymer insert, or that require different sealing materials. For fluids with higher pressures/temperatures, or corrosive/flammable media, consult the manufacturer or select fittings specified for the fluid.

Steam hose end with GW, steel/galvanized cast iron GF BOSS

All products, Steam hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	60

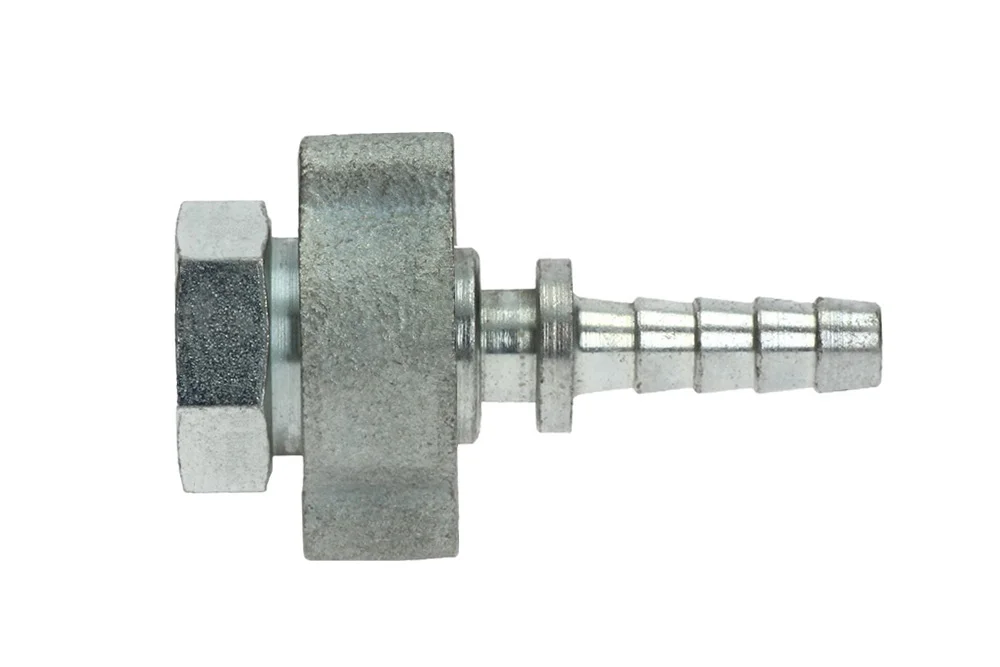

BSP and NPT internal threaded fittings for rubber hoses for steam, with a ribbed tail for the hose, with a lock – for installation in the hose using BOSS SBC type steam clamps. The complete fitting consists of three parts – a spherical end GB with a spigot (“tail”) for the hose, a wing nut B with a special internal thread (NPS), and a special GFB adapter with an external thread (NPS) matching the nut and an internal thread of the same size as the fitting. The GFB adapter has a conical polymer or copper insert that works with the spherical end. This creates a tight, steam-resistant, and high-temperature connection that is also easy to unscrew and screw without the use of special tools, using the wing nut. Material: galvanized steel/cast iron. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DX-GF-04-04-NPT	GF end with GW NPT 1/4", hose 1/4"	6	18	In stock	Enquiry
DX-GF-06-06	GF end with GW BSP 3/8", hose 3/8"	10	18	In stock	Enquiry
DX-GF-06-06-NPT	GF end with GW NPT 3/8", hose 3/8"	10	18	In stock	Enquiry
DX-GF-08-08	GF end with GW BSP 1/2", hose 1/2"	12	18	In stock	Enquiry
DX-GF-08-08-NPT	GF end with GW NPT 1/2", hose 1/2"	12	18	In stock	Enquiry
DX-GF-12-12	GF end with GW BSP 3/4", hose 3/4"	20	18	In stock	Enquiry
DX-GF-12-12-NPT	GF end with GW NPT 3/4", hose 3/4"	20	18	In stock	Enquiry
DX-GF-16-16	GF end with GW BSP 1", hose 1"	25	18	In stock	Enquiry
DX-GF-16-16-NPT	GF end with GW NPT 1", hose 1"	25	18	In stock	Enquiry
DX-GF-20-20	GF end with GW BSP 1.1/4", hose 1.1/4"	32	18	In stock	Enquiry
DX-GF-20-20-NPT	GF end with GW NPT 1.1/4", hose 1.1/4"	32	18	In stock	Enquiry
DX-GF-24-24	GF end with GW BSP 1.1/2", hose 1.1/2"	38	18	In stock	Enquiry
DX-GF-24-24-NPT	GF end with GW NPT 1.1/2", hose 1.1/2"	38	18	In stock	Enquiry
DX-GF-32-32	GF end with GW BSP 2", hose 2"	50	18	In stock	Enquiry
DX-GF-32-32-NPT	GF end with GW NPT 2", hose 2"	50	18	In stock	Enquiry
DX-GF-40-40	GF end with GW BSP 2.1/2", hose 2.1/2"	65	18	In stock	Enquiry
DX-GF-40-40-NPT	GF end with GW NPT 2.1/2", hose 2.1/2"	65	18	In stock	Enquiry
DX-GF-48-48	GF end with GW BSP 3", hose 3"	75	18	In stock	Enquiry
DX-GF-48-48-NPT	GF end with GW NPT 3", hose 3"	75	18	In stock	Enquiry
DX-GF-64-64	GF end with GW BSP 4", hose 4"	100	18	In stock	Enquiry
DX-GF-64-64-NPT	GF end with GW NPT 4", hose 4"	100	18	In stock	Enquiry
DX-GF-96-96-NPT	GF end with GW NPT 6", hose 6"	150	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

BSP and NPT internal threaded fittings for rubber hoses for steam, with a ribbed tail for the hose, with a lock – for installation in the hose using BOSS SBC type steam clamps. The complete fitting consists of three parts – a spherical end GB with a spigot (“tail”) for the hose, a wing nut B with a special internal thread (NPS), and a special GFB adapter with an external thread (NPS) matching the nut and an internal thread of the same size as the fitting. The GFB adapter has a conical polymer or copper insert that works with the spherical end. This creates a tight, steam-resistant, and high-temperature connection that is also easy to unscrew and screw without the use of special tools, using the wing nut. Material: galvanized steel/cast iron. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.
