Is the STECKO reducer socket fitting, automatic steel, compatible with standard mining hydraulic hose sizes and pressures?

The STECKO reducer socket fitting, automatic steel is designed for use in hydraulic systems for mining and, given its material (automatic steel, galvanized) and intended application, is compatible with standard mining hydraulic hose sizes and pressures when matched correctly. As a reducer socket, it connects hoses of differing diameters within the STECKO system and is built to withstand the mechanical and environmental demands of mining (abrasion, corrosion resistance due to galvanization). However, compatibility depends on specific size, thread/type standards and pressure ratings: you must verify that the reducerâs nominal bore and coupling type match the hose ends and that its working pressure and burst pressure ratings meet or exceed the hydraulic systemâs operating and maximum pressures. Also confirm seals and temperature/medium compatibility for your fluid and operating conditions. In summary: broadly compatible for standard mining hydraulic hoses when the reducerâs dimensions and pressure specifications are confirmed to match the system.

Can the STECKO reducer socket fitting, automatic steel, withstand corrosive mine environments after galvanization?

The STECKO reducer socket fitting, automatic steel, galvanized offers improved corrosion resistance compared with nonâcoated steel due to the galvanization layer. In many mine environments this zinc coating will protect against general atmospheric corrosion, moisture and splash contact. However, galvanization alone may not be sufficient in highly aggressive or chemically corrosive mine conditions (acidic waters, sulfideârich atmospheres, chlorideâladen sprays, prolonged immersion or heavy abrasion). In such cases the zinc layer can degrade, exposing the underlying automatic steel and risking accelerated corrosion and reduced service life. For reliable performance in highly corrosive mining environments, consider additional protective measures (thicker or specialized coatings, stainless or corrosionâresistant alloys, sacrificial anodes, regular inspection/maintenance) and validate with siteâspecific corrosion testing.

What maintenance is required for the STECKO reducer socket fitting, automatic steel, in mining hydraulic systems?

Maintenance for the STECKO reducer socket fitting, automatic steel, in mining hydraulic systems: 1. Regular inspection - Visually inspect the STECKO reducer socket fitting, automatic steel for corrosion, cracks, wear, deformation and proper galvanization condition at least weekly in heavy-use sites and monthly in less severe conditions. - Check for external damage from impacts, abrasion or contact with sharp edges. 2. Leak checks and seal condition - Perform pressure and leak tests during operation and after any maintenance shutdown. Look for hydraulic fluid seepage at the socket interface. - Inspect seals, O-rings and any internal sealing elements and replace if hardened, cracked, flattened or contaminated. 3. Connection integrity - Verify the coupling engages and locks smoothly; ensure automatic locking mechanism operates reliably and releases properly. - Check for play, misalignment or difficulty in mating/unmating which could indicate wear or deformation. 4. Cleanliness - Keep mating surfaces and port areas free of dirt, grit and metal particles. Clean with appropriate non-corrosive solvent and lint-free cloth before connection. - Use dust caps/plugs when disconnected to prevent contamination. 5. Corrosion protection - Inspect galvanization for wear; touch up or recoat exposed bare areas per maintenance procedures to prevent rust in the mining environment. - Avoid abrasive cleaners or processes that remove protective zinc coating. 6. Lubrication - Apply manufacturer-recommended light film lubrication to moving parts of the automatic mechanism as specified in intervals (typically monthly or per service schedule). Do not contaminate hydraulic fluid with excess lubricant. 7. Replacement schedule - Replace the STECKO reducer socket fitting, automatic steel if inspection reveals significant wear, damaged locking elements, compromised seals, persistent leaks after seal replacement, or corrosion that threatens structural integrity. - Keep spare fittings and seals on site to minimize downtime. 8. Documentation and testing - Record inspections, repairs, replacements and test results. Follow the hydraulic systemâs maintenance plan and manufacturerâs specific guidelines for pressure ratings and service life. - After maintenance, perform a pressure test and functional check before returning to service. Adhere to safety procedures, depressurize the system before disconnecting, and use personal protective equipment.

Fitting socket reducing STECKO, free-cutting steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

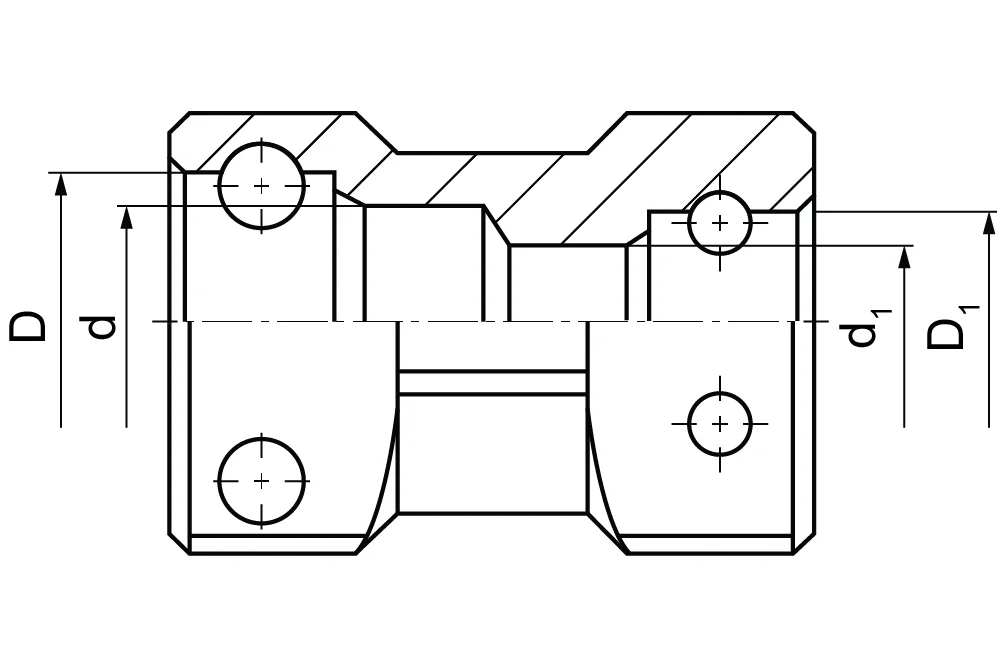

Fitting socket reducing systemu STECKO for use in hydraulic systems for mining. Material: free-cutting steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-GST-5-1CB	Fitting gniazdowa reducing STECKO 12/10	-	500	In stock	Enquiry
TI-GST-5-1EB	Fitting gniazdowa reducing STECKO 20/10	-	450	In stock	Enquiry
TI-GST-5-1EC	Fitting gniazdowa reducing STECKO 20/12	-	450	In stock	Enquiry
TI-GST-5-1FC	Fitting gniazdowa reducing STECKO 25/12	-	400	In stock	Enquiry
TI-GST-5-1FE	Fitting gniazdowa reducing STECKO 25/20	-	400	In stock	Enquiry
TI-GST-5-1GE	Fitting gniazdowa reducing STECKO 32/20	-	300	In stock	Enquiry
TI-GST-5-1GF	Fitting gniazdowa reducing STECKO 32/25	-	300	In stock	Enquiry
