Is the Straight connection with female thread, with swivel nut and measuring hose end available in both zincânickel coated steel and AISI 316 stainless steel for pressures up to 630 bar?

Yes. The Straight connection with female thread, with swivel nut and measuring hose end Format is available in both zincânickel coated steel and AISI 316 stainless steel, and it is rated for working pressures from 400 bar up to 630 bar depending on the size. Operating temperature range is â30Â°C to +120Â°C.

Can the Straight connection with female thread, with swivel nut and measuring hose end be supplied with a clamp sleeve for use at -30Â°C to +120Â°C?

Yes. The Straight connection with female thread, with swivel nut and measuring hose end Format can be supplied with a clamp sleeve suitable for use at -30Â°C to +120Â°C. The product description specifies it is supplied complete with a clamp sleeve and lists the operating temperature range as -30Â°C to +120Â°C. Materials available (steel with zincânickel coating or AISI 316 stainless steel) and working pressures (400â630 bar depending on size) support use across that temperature range.

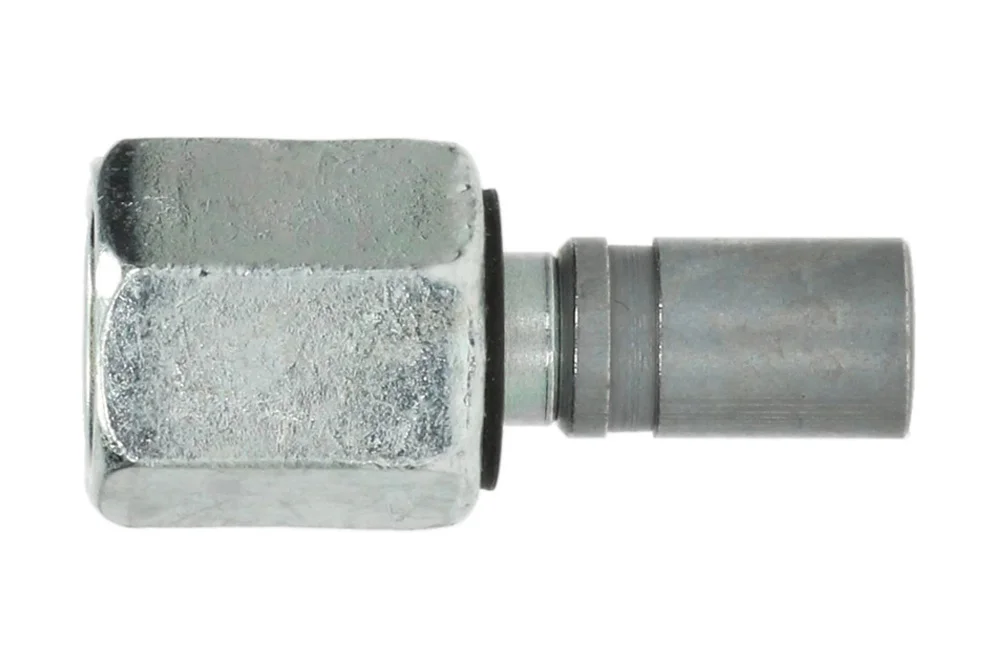

Straight connection with female thread, with swivel nut and measuring hose end

Additional information

Material	CS – steel (cast iron)

Straight connector with internal metric thread, BSP, JIC or ORFS, with a swivel nut and a measuring hose fitting, supplied complete with a clamp sleeve. Material: steel with zinc-nickel coating or AISI 316 steel. Working pressure: from 400 bar to 630 bar – depending on size. Operating temperature: from -30°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PS-801-53-506-00	End. ORFS GW 11/16" -16 UN, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-801-60-014-00	End. GW M14x1.5, 60° cone, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-801-60-202-00	End. GW 1/8" BSP, 60° cone, hose 2x5 mm, with sleeve	2	400	In stock	Enquiry
PS-801-60-204-00	End. GW 1/4" BSP, 60° cone, hose 2x5 mm, with sleeve	2	630	In stock	Enquiry
PS-801-60-206-00	End. GW 3/8" BSP, 60° cone, hose 2x5 mm, with sleeve	2	400	In stock	Enquiry
PS-801-60-404-00	End. JIC37° G 7/16" -20 UNF, hose 2x5 mm, with sleeve	2	450	In stock	Enquiry
PS-801-60-405-00	End. JIC37° G 1/2" -20 UNF, hose 2x5 mm, with sleeve	2	420	In stock	Enquiry
PS-801-60-406-00	End. JIC37° G 9/16"-18 UNF, hose 2x5 mm, with sleeve	2	350	In stock	Enquiry
PS-804-60-204-00	End. GW 1/4" BSP, 60° cone, hose 4x8 mm, with sleeve	4	500	In stock	Enquiry
PS-804-60-404-00	End. JIC 37°, G 7/16"-20 UNF, hose 4x8 mm, with sleeve	4	450	In stock	Enquiry
PS-811-60-204-00	End. GW 1/4" BSP, 60° cone, hose 2x5 mm, with sleeve, AISI 316	2	630	In stock	Enquiry
PS-811-60-404-00	End. JIC37° G 7/16" -20 UNF, hose 2x5 mm, with sleeve, AISI 316	2	450	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight connector with internal metric thread, BSP, JIC or ORFS, with a swivel nut and a measuring hose fitting, supplied complete with a clamp sleeve. Material: steel with zinc-nickel coating or AISI 316 steel. Working pressure: from 400 bar to 630 bar – depending on size. Operating temperature: from -30°C to +120°C.
