Can NON SKIVE DKO straight end, carbon steel, type NOW110 be crimped onto 4SP/4SH/R13/R15 hoses with TI-N sleeves without cutting the hose rubber?

Yes. The NON SKIVE DKO straight end, carbon steel, type NOW110 can be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber. The product description specifies it is a Straight NON SKIVE end fitting with internal UNF thread, featuring flat sealing (DKO), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N, and explicitly notes installation: without cutting the hose rubber. Material (carbon steel, galvanized) is suitable for standard crimping applications. Ensure correct sleeve size, proper crimping equipment and parameters for the hose type, and follow manufacturer crimping specifications and quality checks.

Does NON SKIVE DKO straight end, carbon steel, type NOW110 require hose rubber cutting for crimping onto 4SP/4SH/R13/R15 with TI-N sleeves?

No - NON SKIVE DKO straight end, carbon steel, type NOW110 does not require cutting the hose rubber for crimping onto 4SP/4SH/R13/R15 when used with TI-N sleeves. The product description specifies straight NON SKIVE end fitting with internal UNF thread, flat sealing (DKO), designed for crimping in hoses 4SP, 4SH, R13, and R15 using crimping sleeve TI-N, and explicitly states installation: without cutting the hose rubber.

Is special preparation needed to fit NON SKIVE DKO straight end, carbon steel, type NOW110 onto 4SP/4SH/R13/R15 with TI-N?

No special preparation is required. NON SKIVE DKO straight end, carbon steel, type NOW110 is designed for crimping onto 4SP/4SH/R13/R15 hoses using the TI-N crimping sleeve and is installed without cutting the hose rubber. Ensure correct sleeve size (TI-N matched to hose and fitting), clean hose end, confirm internal UNF thread orientation, and use the manufacturerâs crimping die/profile and recommended crimping parameters (pressure, stroke, and inspection gauge) for 4SP/4SH/R13/R15. After crimping, inspect for proper sleeve swage, no rubber extrusion, correct overall crimp dimensions, and thread engagement. Follow standard safety and quality checks; no additional skiving or rubber removal is needed.

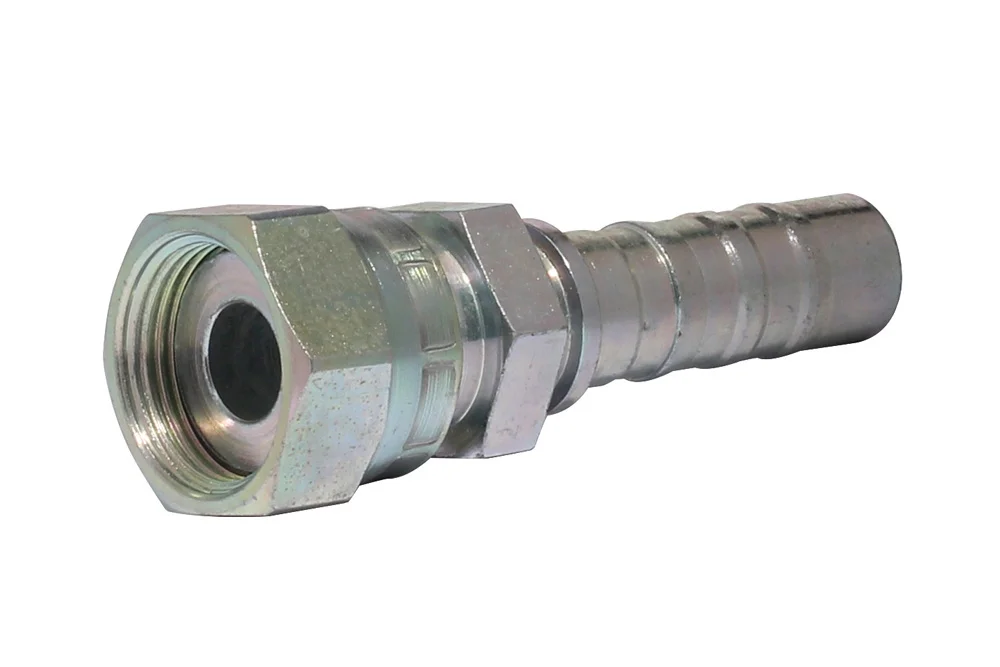

NON SKIVE DKO straight end, carbon steel, type NOW110

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Straight NON SKIVE end fitting with internal UNF thread, featuring flat sealing (DKO), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NOW110-19-12	End. ORFS NON SKIVE GW 1.3/16", hose 3/4"	20	420	In stock	Enquiry
TI-NOW110-23-12	End. ORFS NON SKIVE GW 1.7/16", hose 3/4"	20	420	In stock	Enquiry
TI-NOW110-23-16	End. ORFS NON SKIVE GW 1.7/16", hose 1"	25	415	In stock	Enquiry
TI-NOW110-27-16	End. ORFS NON SKIVE GW 1.11/16", hose 1"	25	345	In stock	Enquiry
TI-NOW110-27-20	End. ORFS NON SKIVE GW 1.11/16", hose 1.1/4"	32	345	In stock	Enquiry
TI-NOW110-32-24	End. ORFS NON SKIVE GW 2", hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight NON SKIVE end fitting with internal UNF thread, featuring flat sealing (DKO), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
