Is the Straight connector with BSPT male thread, stainless steel, AI-60000 suitable for use with aggressive chemicals and at what temperatures?

Yes. The Straight connector with BSPT male thread, stainless steel, AI-60000 is suitable for use with aggressive chemicals. It is manufactured entirely from AISI 316L stainless steel (high corrosion resistance), contains no plastic components, and uses Viton seals, which offer excellent chemical resistance to a wide range of corrosive agents. Operating limits: temperature range â15Â°C to +225Â°C, maximum working pressure 15 bar, and vacuum capability to 0.99 bar. Use within these temperature and pressure limits to ensure seal integrity and safe operation. For specific aggressive media (strong acids, alkalis or specialty solvents), verify chemical compatibility with AISI 316L and Viton or consult manufacturer data sheets.

Does the Straight connector with BSPT male thread, stainless steel, AI-60000 support use in food and pharmaceutical applications?

Yes. The Straight connector with BSPT male thread, stainless steel, AI-60000 is suitable for food and pharmaceutical applications. It is made entirely of AISI 316L stainless steel (no plastic components) and uses Viton seals, offering high chemical and corrosion resistance. AISI 316L is widely accepted in food and pharma for its corrosion resistance and cleanability; operating range (-15Â°C to +225Â°C), 15 bar pressure rating, and near-vacuum capability (0.99 bar) support typical processing conditions. Note: final suitability may require verification against specific regulatory standards (e.g., FDA, EU) and process requirements (cleaning/sterilization protocols, extractables/ leachables).

Can the Straight connector with BSPT male thread, stainless steel, AI-60000 withstand vacuum conditions down to 0.01 bar?

Straight connector with BSPT male thread, stainless steel, AI-60000 cannot reliably withstand vacuum conditions down to 0.01 bar. Specified vacuum rating is 0.99 bar (i.e., able to tolerate only a very light vacuum ~0.01 bar below atmospheric pressure), which means it is not suitable for deep vacuum applications such as 0.01 bar absolute. The connectorâs materials (AISI 316L and Viton seals) and temperature/pressure ratings (â15Â°C to +225Â°C; working pressure 15 bar) offer strong chemical and thermal resistance, but the listed vacuum capability confirms it is intended for near-atmospheric or slight vacuum use only, not for high or deep vacuum systems. If you need performance at 0.01 bar absolute, consider components specifically rated for high vacuum and consult the manufacturer for tested vacuum specifications and recommended seal materials.

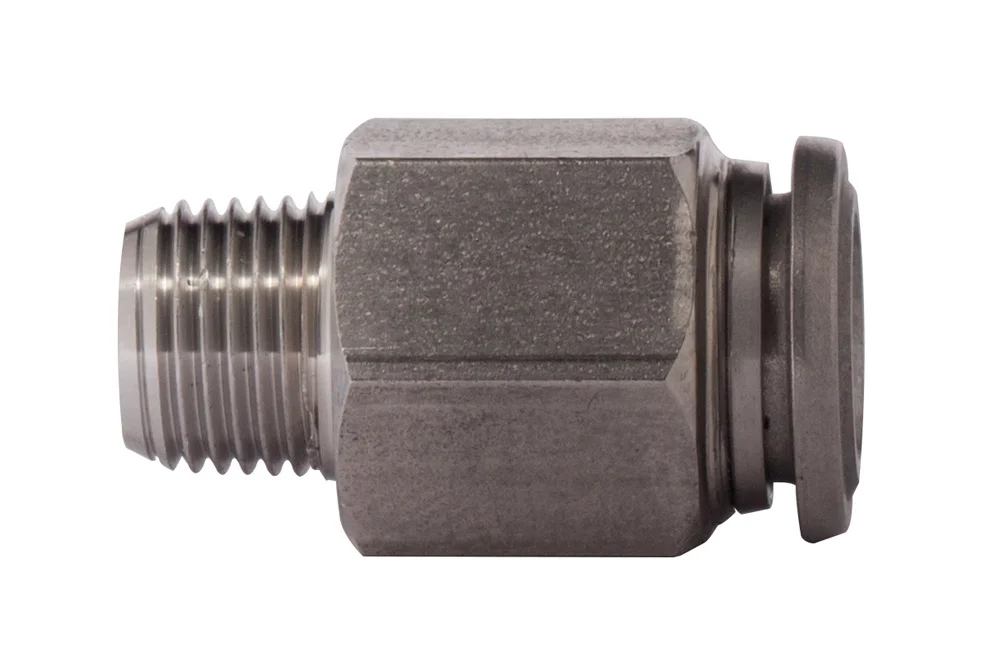

Straight connector with BSPT male thread, stainless steel, AI-60000

All products, Push-in fittings/

Additional information

Material	SS – stainless steel

High-quality straight plug connection with external BSPT thread, made entirely of AISI 316L steel, series 60000. No plastic components, and seals made of Viton ensure high resistance to corrosive agents and chemicals. Used in the chemical, food, pharmaceutical, electronic industries, and in medicine. Material: AISI 316L steel. Operating temperature: from -15°C to +225°C. Working pressure: 15 bar. Vacuum: 0.99 bar. Seal: Viton.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-60000-04-02	Straight connector, hose 4 mm, GZ 1/8" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-04-04	Straight connector, 4 mm hose, GZ 1/4" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-06-02	Straight connector, hose 6 mm, GZ 1/8" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-06-04	Straight connector, hose 6 mm, GZ 1/4" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-08-02	Straight connector, hose 8 mm, GZ 1/8" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-08-04	Straight connector, hose 8 mm, GZ 1/4" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-10-04	Straight connector, hose 10 mm, GZ 1/4" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-10-06	Straight connector, hose 10 mm, GZ 3/8" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-12-06	Straight connector, hose 12 mm, GZ 3/8" BSPT, AISI 316L	-	15	In stock	Enquiry
AI-60000-12-08	Straight connector, hose 12 mm, GZ 1/2" BSPT, AISI 316L	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-quality straight plug connection with external BSPT thread, made entirely of AISI 316L steel, series 60000. No plastic components, and seals made of Viton ensure high resistance to corrosive agents and chemicals. Used in the chemical, food, pharmaceutical, electronic industries, and in medicine. Material: AISI 316L steel. Operating temperature: from -15°C to +225°C. Working pressure: 15 bar. Vacuum: 0.99 bar. Seal: Viton.
