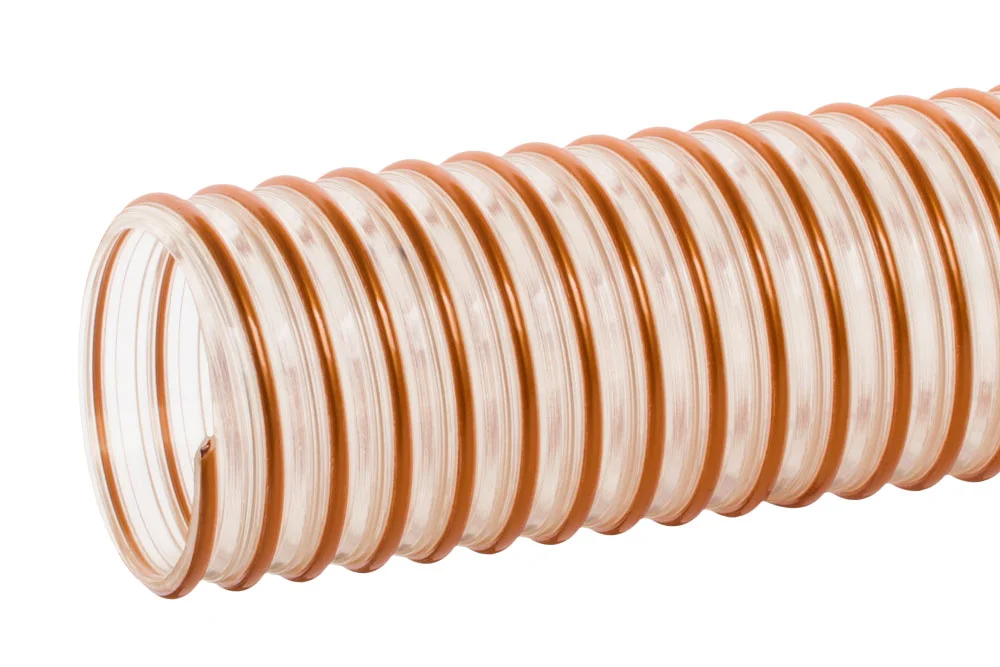

Suction hose for the transport of granules, sand, gravel P3SVPU, P3SVPUAE

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 2

Reinforcement

steel spiral

Very strong and thick, flexible hose designed for suction and transport of abrasive bulk materials, granules, sand, gravel, pebbles, agricultural substrate. Used for loading and unloading silos, vehicles, and suction excavators, transloading from tankers, etc. Thick wall and fairly dense reinforcing spiral provide high resistance to pressure and vacuum. Smooth inside, non-compressible, quite flexible (r=2.5xD), elastic even at low temperatures. Hose with good abrasion resistance, also resistant to oils and gasoline. Installation on couplings with bridge clamps (right-handed) or special installation on industrial ends, e.g., flanges. Other diameters may be available upon special request. Versions: P3 SV PU – with polyester – polyurethane, very abrasion resistant; P3 SV PU AE – version with polyether – polyurethane, abrasion resistant, resistant to microbes and hydrolysis, compliant with European regulations 1935/2004/EC and 10/2011/EU (simulant E), 2023/2006/EC (GMP) and American FDA 21 CFR 177.2600 and 178.2010. Suitable for temporary contact with food during the transfer of dry, bulk, non-fatty substances – under the conditions specified in the manufacturer’s declaration of conformity (available at Tubes International). Hose material: transparent polyester-polyurethane (P3 SV PU), polyether – polyurethane (P3 SV PU AE). Wall thickness measured between the spiral: 2.5 mm. Reinforcement: spiral made of steel wire. Operating temperature: from -40°C to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-P3SVPU-038Hose P 3 SV PU 38 mm383.3In stock
Enquiry
SC-P3SVPU-040Hose P 3 SV PU 40 mm403.3In stock
Enquiry
SC-P3SVPU-045Hose P 3 SV PU 45 mm453.1In stock
Enquiry
SC-P3SVPU-050Hose P 3 SV PU 50 mm503.05In stock
Enquiry
SC-P3SVPU-055Hose P 3 SV PU 55 mm553In stock
Enquiry
SC-P3SVPU-060Hose P 3 SV PU 60 mm603In stock
Enquiry
SC-P3SVPU-065Hose P 3 SV PU 65 mm652.9In stock
Enquiry
SC-P3SVPU-070Hose P 3 SV PU 70 mm702.8In stock
Enquiry
SC-P3SVPU-075Hose P 3 SV PU 75 mm752.3In stock
Enquiry
SC-P3SVPU-080Hose P 3 SV PU 80 mm802In stock
Enquiry
SC-P3SVPU-090Hose P 3 SV PU 90 mm901.8In stock
Enquiry
SC-P3SVPU-100Hose P 3 SV PU 100 mm1001.45In stock
Enquiry
SC-P3SVPU-110Hose P 3 SV PU 110 mm1101.3In stock
Enquiry
SC-P3SVPU-120Hose P 3 SV PU 120 mm1201.1In stock
Enquiry
SC-P3SVPU-125Hose P 3 SV PU 125 mm1251.1In stock
Enquiry
SC-P3SVPU-140Hose P 3 SV PU 140 mm1401.05In stock
Enquiry
SC-P3SVPU-150Hose P 3 SV PU 150 mm1500.95In stock
Enquiry
SC-P3SVPU-160Hose P 3 SV PU 160 mm1600.8In stock
Enquiry
SC-P3SVPU-180Hose P 3 SV PU 180 mm1800.7In stock
Enquiry
SC-P3SVPU-200Hose P 3 SV PU 200 mm2000.65In stock
Enquiry
SC-P3SVPU-225Hose P 3 SV PU 225 mm2250.6In stock
Enquiry
SC-P3SVPU-250Hose P 3 SV PU 250 mm2500.4In stock
Enquiry
SC-P3SVPU-300Hose P 3 SV PU 300 mm3000.3In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very strong and thick, flexible hose designed for suction and transport of abrasive bulk materials, granules, sand, gravel, pebbles, agricultural substrate. Used for loading and unloading silos, vehicles, and suction excavators, transloading from tankers, etc. Thick wall and fairly dense reinforcing spiral provide high resistance to pressure and vacuum. Smooth inside, non-compressible, quite flexible (r=2.5xD), elastic even at low temperatures. Hose with good abrasion resistance, also resistant to oils and gasoline. Installation on couplings with bridge clamps (right-handed) or special installation on industrial ends, e.g., flanges. Other diameters may be available upon special request. Versions: P3 SV PU – with polyester – polyurethane, very abrasion resistant; P3 SV PU AE – version with polyether – polyurethane, abrasion resistant, resistant to microbes and hydrolysis, compliant with European regulations 1935/2004/EC and 10/2011/EU (simulant E), 2023/2006/EC (GMP) and American FDA 21 CFR 177.2600 and 178.2010. Suitable for temporary contact with food during the transfer of dry, bulk, non-fatty substances – under the conditions specified in the manufacturer’s declaration of conformity (available at Tubes International). Hose material: transparent polyester-polyurethane (P3 SV PU), polyether – polyurethane (P3 SV PU AE). Wall thickness measured between the spiral: 2.5 mm. Reinforcement: spiral made of steel wire. Operating temperature: from -40°C to +100°C.

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 2

Reinforcement

steel spiral
