Can SYNFLEX 1300 polyethylene-aluminum air hose be buried without additional protective coverings and still maintain performance?

Yes. SYNFLEX 1300 polyethylene-aluminum air hose can be buried without additional protective coverings and still maintain performance. Its construction.polyethylene inner and outer layers with an aluminum reinforcement.provides very good chemical resistance and increased durability, allowing long uninterrupted runs and operation in chemically aggressive environments. The hoseâs shape-memory feature aids installation in hard-to-reach places. It is rated for working pressures from 20 to 28.8 bar (depending on diameter) and an operating temperature range of â40Â°C to +80Â°C. Additionally, SYNFLEX 1300 is about five times lighter than standard pneumatic hoses, simplifying handling and burial.

Is SYNFLEX 1300 polyethylene-aluminum air hose suitable for long unsupported runs thanks to its aluminum reinforcement?

Yes. SYNFLEX 1300 polyethylene-aluminum air hose is suitable for long unsupported runs because its aluminum reinforcement increases durability and allows installation of long sections without additional supports. Its shape-memory aids routing in hard-to-reach places, it can be buried without extra coverings, and being much lighter than standard pneumatic hoses further facilitates long runs. Operating pressure ranges from 20 to 28.8 bar (depending on diameter) and temperature range is â40Â°C to +80Â°C.

Can SYNFLEX 1300 polyethylene-aluminum air hose resist chemical exposure in harsh industrial environments?

Yes. SYNFLEX 1300 polyethylene-aluminum air hose is designed to resist chemical exposure in harsh industrial environments. The hoseâs outer layer is made of black polyethylene with âvery good chemical resistance,â explicitly allowing operation in chemically aggressive surroundings. The aluminum reinforcement provides increased durability and enables long uninterrupted runs, while the polyethylene inner layer resists many common chemicals used in pneumatic systems. Its ability to be buried without extra protection and to operate across a wide temperature range (â40Â°C to +80Â°C) further supports suitability for demanding conditions. Caveat: âVery good chemical resistanceâ indicates strong general resistance, but compatibility depends on specific chemicals, concentrations, temperatures and exposure duration. For critical or continuous contact with aggressive solvents, strong acids/alkalis, or specialty chemicals, verify compatibility with manufacturer data or test the hose with the exact chemicals and conditions before long-term use.

SYNFLEX 1300 polyethylene-aluminum air hose

All products, Pneumatic hoses/

Additional information

Material	PE – polyethylene
Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-40
Vacuum resistance	check
Standard length [m]	10, 100

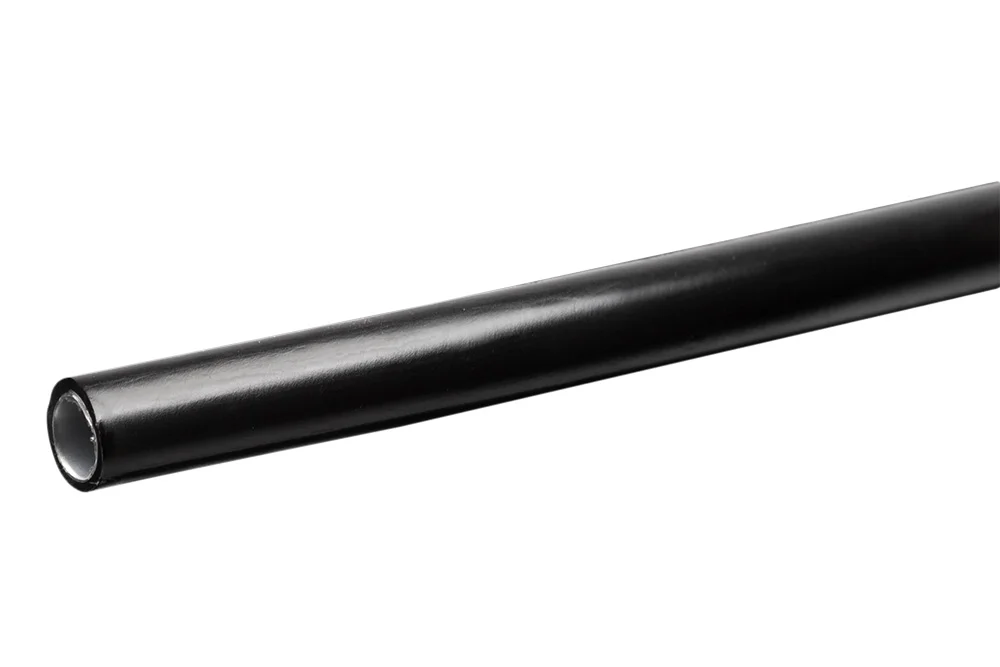

Polyethylene and aluminum pneumatic hose for use in pneumatic control systems. Very good chemical resistance of the outer layer allows operation in chemically aggressive environments. The reinforcement in the form of an aluminum coating increases the hose’s durability, enabling the installation of long sections without additional supports. An additional advantage is its so-called shape memory, allowing installation in hard-to-reach places. It can operate buried without the need for additional coverings. Due to its unique construction, the hose is about 5 times lighter than standard pneumatic hoses. Inner layer: polyethylene. Reinforcement: aluminum. Outer layer: black polyethylene. Working pressure: from 20 bar to 28.8 bar (depending on hose diameter). Operating temperature: from -40°C to +80°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
SY-1300-M060B	SYNFLEX1300 hose 6x4 mm	4	28.8
SY-1300-M080B	SYNFLEX1300 hose 8x5.3 mm	5	28.8
SY-1300-M100B	SYNFLEX1300 hose 10x6.2 mm	6	28.8
SY-1300-M120B	SYNFLEX1300 hose 12x8.13 mm	8	24.5
SY-1300-M140B	SYNFLEX1300 hose 14x9.75 mm	10	24.5
SY-1300-M150B	SYNFLEX1300 hose 15x10.75 mm	10	20

Polyethylene and aluminum pneumatic hose for use in pneumatic control systems. Very good chemical resistance of the outer layer allows operation in chemically aggressive environments. The reinforcement in the form of an aluminum coating increases the hose’s durability, enabling the installation of long sections without additional supports. An additional advantage is its so-called shape memory, allowing installation in hard-to-reach places. It can operate buried without the need for additional coverings. Due to its unique construction, the hose is about 5 times lighter than standard pneumatic hoses. Inner layer: polyethylene. Reinforcement: aluminum. Outer layer: black polyethylene. Working pressure: from 20 bar to 28.8 bar (depending on hose diameter). Operating temperature: from -40°C to +80°C.

Additional information

Material	PE – polyethylene
Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-40
Vacuum resistance	check
Standard length [m]	10, 100
