Is the Adapter from GZ BSP/GW BSP, stainless steel, type A104 compatible with both male and female BSP fittings under high-pressure conditions?

Yes. The Adapter from GZ BSP/GW BSP, stainless steel, type A104 is designed to connect both male and female BSP fittings in high-pressure systems. It features an external BSP thread with a 60Â° cone seal and an internal BSP thread with a swivel nut that also uses a 60Â° cone seal. Made from AISI 316L stainless steel, the materials and sealing geometry are appropriate for high-pressure applications when used within the adapterâs rated pressure and temperature limits and when installed on properly matched BSP cone fittings. Ensure correct tightening torque, compatible thread sizes and pressure ratings for the connected fittings, and use appropriate sealing practices to maintain safe, leak-free operation under high pressure.

Does the Adapter from GZ BSP/GW BSP, stainless steel, type A104 require special torque settings for the swivel nut under high pressure?

No. The Adapter from GZ BSP/GW BSP, stainless steel, type A104 does not require special or higher torque settings for the swivel nut beyond standard BSP cone-seal assembly practices. It uses 60Â° cone seals on both the external and internal BSP threads and the swivel nut is designed to form the seal by proper engagement of the cone surfaces. Tighten to the manufacturerâs recommended torque range for stainless steel BSP cone fittings or to the torque necessary to achieve a leak-tight 60Â° cone seal, avoiding over-tightening which can damage threads or deform the cone. If available, follow specific torque values from the component supplier or use calibrated torque control and pressure testing for final verification.

Can Adapter from GZ BSP/GW BSP, stainless steel, type A104 withstand corrosive fluids in high-pressure systems?

Yes. Adapter from GZ BSP/GW BSP, stainless steel, type A104 can be used with many corrosive fluids in high-pressure systems, but suitability depends on the specific fluid, concentration, temperature and pressure. Why itâs generally suitable: - Material: AISI 316L stainless steel offers excellent corrosion resistance compared with common steels, especially against chlorides, acids (weak to moderate), and many chemical environments. Itâs widely used in chemical, petrochemical and marine applications. - Design: High-pressure adaptor A104 with 60Â° cone seals and BSP threads is made for sealed, high-pressure connections; the swivel nut helps maintain proper sealing under load. Limitations and considerations: - Chloride-rich, strongly oxidizing or highly reducing media (e.g., hot concentrated hydrochloric acid, ferric chloride, some brines at elevated temperature) can promote pitting, crevice corrosion or stress corrosion cracking in 316L. For such fluids duplex stainless steels, nickel alloys (e.g., Hastelloy) or suitable linings may be required. - Temperature and pressure: Corrosion resistance of 316L decreases with increasing temperature; high temperature combined with aggressive chemicals reduces service life. Verify operating temperature and pressure against material performance charts. - Mechanical wear and erosion: High-velocity particulates or erosive fluids can cause mechanical damage to threads/seals, compromising corrosion performance. - Seal compatibility: The metal-to-metal 60Â° cone seal is robust, but any elastomer seals or PTFE components in the system must be compatible with the fluid. - System-specific testing: For critical or long-term service, perform compatibility checks, corrosion testing, or consult corrosion engineers. Refer to chemical compatibility charts and relevant standards. Conclusion: Adapter from GZ BSP/GW BSP, stainless steel, type A104 is suitable for many corrosive fluids in high-pressure systems due to its AISI 316L construction, but confirm compatibility for your exact fluid, concentration, temperature and pressure. For highly aggressive media or extreme conditions consider higher-alloy materials or consult a specialist.

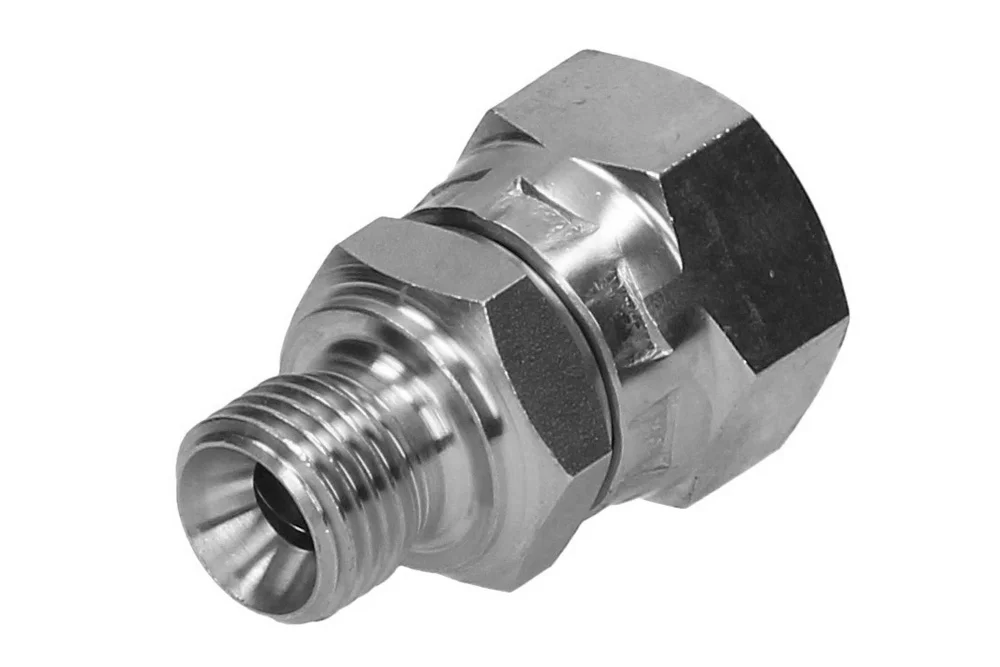

Adapter with BSP male/BSP female, stainless steel, type A104

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel
Standard length [m]	10

High-pressure adapter type A104 with BSP male thread (60° cone sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A104-02-02-SS	Adapter 1/8" BSP male / 1/8" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A104-02-04-SS	Adapter 1/8" BSP male / 1/4" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A104-04-04-SS	Adapter 1/4" BSP male / 1/4" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A104-04-06-SS	Adapter 1/4" BSP male / 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A104-04-08-SS	Adapter 1/4" BSP male / 1/2" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A104-06-06-SS	Adapter 3/8" BSP male / 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A104-06-08-SS	Adapter 3/8" BSP male / 1/2" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A104-08-04-SS	Adapter 1/2" BSP male / 1/4" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A104-08-06-SS	Adapter 1/2" BSP male / 3/8" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A104-08-08-SS	Adapter 1/2" BSP male / 1/2" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A104-08-12-SS	Adapter 1/2" BSP male / 3/4" BSP female, AISI 316	-	315	In stock	Enquiry
TI-A104-12-12-SS	Adapter 3/4" BSP male / 3/4" BSP female, AISI 316	-	315	In stock	Enquiry
TI-A104-12-16-SS	Adapter 3/4" BSP male / 1" BSP female, AISI 316	-	250	In stock	Enquiry
TI-A104-16-12-SS	Adapter 1" BSP male / 3/4" BSP female, AISI 316	-	250	In stock	Enquiry
TI-A104-16-16-SS	Adapter 1" BSP male / 1" BSP female, AISI 316	-	250	In stock	Enquiry
TI-A104-16-20-SS	Adapter 1" BSP male / 1.1/4" BSP female, AISI 316	-	200	In stock	Enquiry
TI-A104-20-20-SS	Adapter 1.1/4" BSP male / 1.1/4" BSP female, AISI 316	-	200	In stock	Enquiry
TI-A104-20-24-SS	Adapter 1.1/4" BSP male / 1.1/2" BSP female, AISI 316	-	160	In stock	Enquiry
TI-A104-24-24-SS	Adapter 1.1/2" BSP male / 1.1/2" BSP female, AISI 316	-	160	In stock	Enquiry
TI-A104-24-32-SS	Adapter 1.1/2" BSP male / 2" BSP female, AISI 316	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter type A104 with BSP male thread (60° cone sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: AISI 316L.
