Is the BANJO WH-ME adjustable angle screw connection, carbon steel rated with a 4:1 safety factor for both L (light) and S (heavy) series?

Yes. The BANJO WH-ME adjustable angle screw connection, carbon steel is rated with a 4:1 safety factor for both the L (light) and S (heavy) series.

Does the BANJO WH-ME adjustable angle screw connection, carbon steel support both L (light) and S (heavy) series with DIN 3852 E elastomer sealing?

Yes. Based on the description, the BANJO WH-ME adjustable angle screw connection, carbon steel supports both L (light) and S (heavy) series and uses DIN 3852 type E elastomer sealing (rectangular crossâsection). The product is a DIN 2353 24Â° socket with external metric thread, safety factor 4:1, carbon steel galvanized.

Does the BANJO WH-ME adjustable angle screw connection, carbon steel, comply with DIN 2353 and DIN 3852 type E sealing?

Yes. The BANJO WH-ME adjustable angle screw connection, carbon steel conforms to DIN 2353 and uses DIN 3852 type E sealing. The product description specifies a 24Â° DIN 2353 socket with external metric thread on both sides and explicitly states sealing as DIN 3852 type E (elastomer gasket with rectangular cross-section). Material and series options (carbon steel, galvanized; L light series, S heavy series) and the 4:1 safety factor do not conflict with those standards.

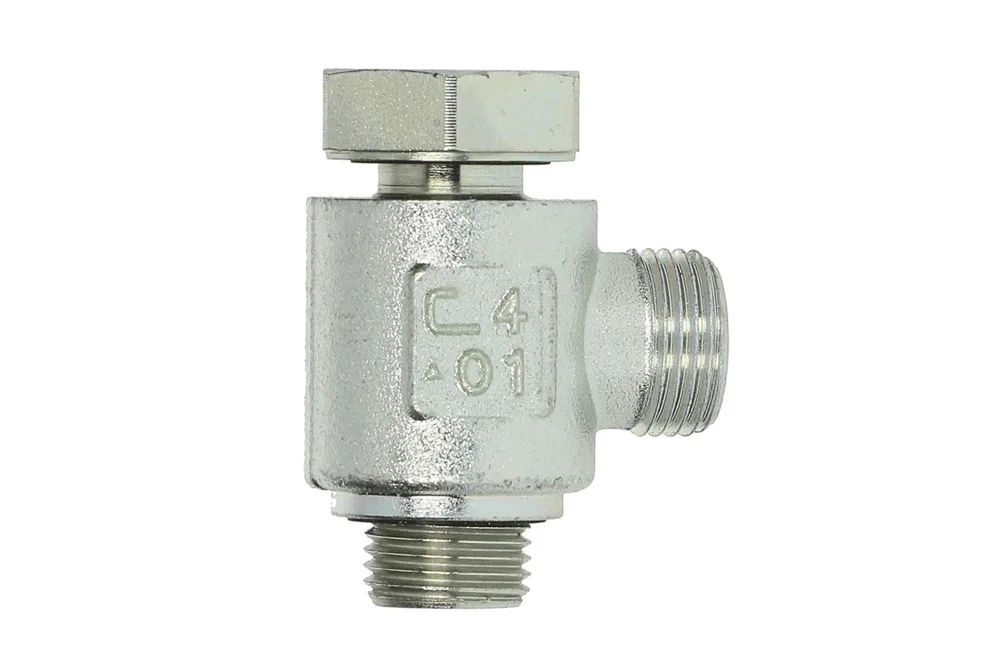

BANJO WH-ME adjustable angle screw connection, carbon steel

Additional information

Material	CS – steel (cast iron)

DIN 2353 screw-in angular adjustable BANJO connector, type WH-ME: 24° DIN 2353 socket with external metric thread and external metric thread (sealing DIN 3852 type E – elastomer gasket with rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WH-06L-ME-10	DIN 2353 fitting WH 6L M10x1	-	315	In stock	Enquiry
HD-WH-06S-ME-12	DIN 2353 fitting WH 6S M12x1.5	-	630	In stock	Enquiry
HD-WH-08L-ME-12	DIN 2353 fitting WH 8L M12x1.5	-	315	In stock	Enquiry
HD-WH-08S-ME-14	DIN 2353 fitting WH 8S M14x1.5	-	630	In stock	Enquiry
HD-WH-10L-ME-14	DIN 2353 fitting WH 10L M14x1.5	-	315	In stock	Enquiry
HD-WH-10S-ME-16	DIN 2353 fitting WH 10S M16x1.5	-	630	In stock	Enquiry
HD-WH-12L-ME-16	DIN 2353 fitting WH 12L M16x1.5	-	315	In stock	Enquiry
HD-WH-12S-ME-18	DIN 2353 fitting WH 12S M18x1.5	-	630	In stock	Enquiry
HD-WH-14S-ME-20	DIN 2353 fitting WH 14S M20x1.5	-	630	In stock	Enquiry
HD-WH-15L-ME-18	DIN 2353 fitting WH 15L M18x1.5	-	315	In stock	Enquiry
HD-WH-16S-ME-22	DIN 2353 fitting WH 16S M22x1.5	-	400	In stock	Enquiry
HD-WH-18L-ME-22	DIN 2353 fitting WH 18L M22x1.5	-	315	In stock	Enquiry
HD-WH-20S-ME-27	DIN 2353 fitting WH 20S M27x2	-	400	In stock	Enquiry
HD-WH-22L-ME-26	DIN 2353 fitting WH 22L M26x1.5	-	160	In stock	Enquiry
HD-WH-25S-ME-33	DIN 2353 fitting WH 25S M33x2	-	400	In stock	Enquiry
HD-WH-28L-ME-33	DIN 2353 fitting WH 28L M33x2	-	160	In stock	Enquiry
HD-WH-30S-ME-42	DIN 2353 fitting WH 30S M42x2	-	400	In stock	Enquiry
HD-WH-35L-ME-42	DIN 2353 fitting WH 35L M42x2	-	160	In stock	Enquiry
HD-WH-38S-ME-48	DIN 2353 fitting WH 38S M48x2	-	315	In stock	Enquiry
HD-WH-42L-ME-48	DIN 2353 fitting WH 42L M48x2	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 screw-in angular adjustable BANJO connector, type WH-ME: 24° DIN 2353 socket with external metric thread and external metric thread (sealing DIN 3852 type E – elastomer gasket with rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: carbon steel, galvanized.
