Is the Angled, adjustable triple plug connector with male thread, type R52 compatible with pneumatic systems using temperatures between -20Â°C and +80Â°C?

Yes. The Angled, adjustable triple plug connector with male thread, type R52 is compatible with pneumatic systems operating between â20Â°C and +80Â°C. Its specified operating temperature range is â20Â°C to +80Â°C, it is designed for pneumatic media (air, vacuum), rated for 16 bar working pressure, and uses NBR sealing suitable for that temperature span.

Can the Angled, adjustable triple plug connector with male thread, type R52 maintain a seal with NBR when used in vacuum applications?

Yes. The Angled, adjustable triple plug connector with male thread, type R52 can maintain a seal with NBR in vacuum applications. It is specified for vacuum and air, uses NBR sealing, and is designed to preserve sealing on both mechanical and pneumatic sides. Operating range (â20Â°C to +80Â°C) and the material (nickel-plated brass) support typical vacuum use within its working pressure limits. Ensure application vacuum level and temperature remain within the productâs specifications for reliable sealing.

Does the Angled, adjustable triple plug connector with male thread, type R52 withstand 16 bar working pressure reliably?

Yes. The Angled, adjustable triple plug connector with male thread, type R52 is specified with a working pressure of 16 bar, made of nickelâplated brass, sealed with NBR and intended for vacuum and air. Given those specifications and the stated operating temperature range (â20Â°C to +80Â°C), it is designed to reliably withstand a 16 bar working pressure when used within its intended media and temperature limits, with proper installation and maintenance. Take care that application conditions (e.g., temperature near limits, aggressive media, pulsating pressures, improper mounting, or mechanical stress) can affect sealing life and reliability; in such cases validate with testing or consult the manufacturer.

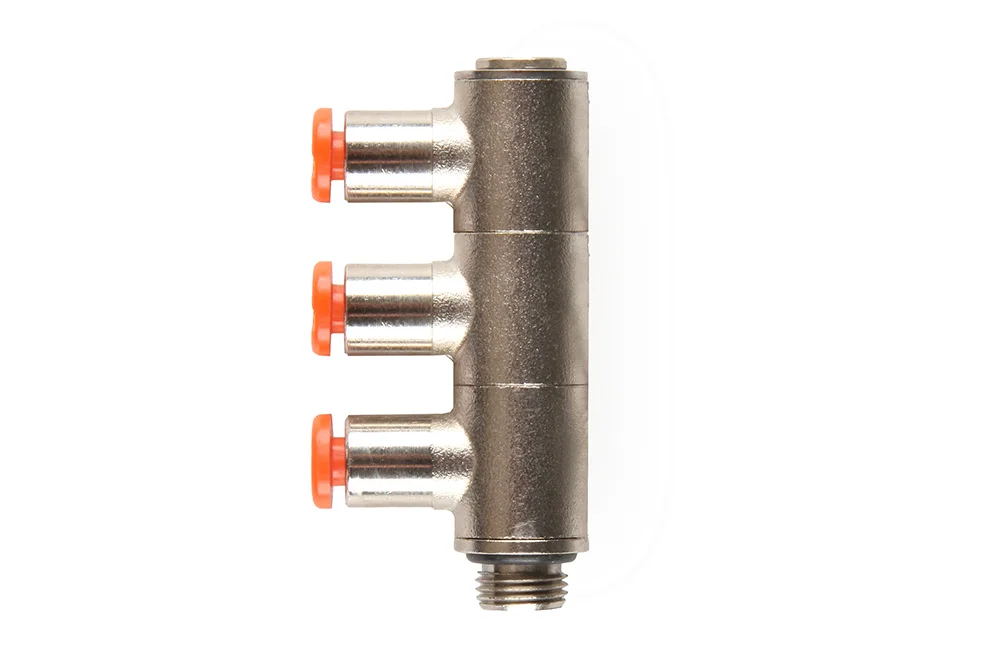

Coupling push-in angled, adjustable triple with a thread external, type R52

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Coupling push-in angled, adjustable triple with a thread external, type R52, Intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2L52002	Fitting angled triple adjustable RL52 hose 4 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L52008	Fitting angled triple adjustable RL52 hose 6 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L52009	Fitting angled triple adjustable RL52 hose 6 mm, 1/4" BSP male	-	16	In stock	Enquiry
MW-2L52010	Fitting angled triple adjustable RL52 hose 8 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L52011	Fitting angled triple adjustable RL52 hose 8 mm, 1/4" BSP male	-	16	In stock	Enquiry
MW-2L52013	Fitting angled triple adjustable RL52 hose 10 mm, 1/4" BSP male	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling push-in angled, adjustable triple with a thread external, type R52, Intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.
