Is the Branch block with Ã 4-6-8 mm connections, aluminum compatible with standard pneumatic fittings and tubing for 4, 6, and 8 mm sizes?

Yes. The Branch block with Ã 4-6-8 mm connections, aluminum is designed for use in pneumatic systems and provides distribution points for compressed air to several branches. Its Ã 4, 6, and 8 mm connection sizes correspond to standard metric pneumatic tubing and fittings commonly used in industrial and automation applications. The anodized aluminum construction and specified working pressure of 12 bar mean it is suitable for typical pneumatic system pressures, and the operating temperature range (-10Â°C to +80Â°C) covers standard operating conditions for such fittings. Additional mounting holes let you secure it in the installation. Note: confirm thread/type (push-in, barbed, or threaded) with your specific fittings to ensure a direct mechanical seal, but in terms of diameter, pressure rating and materials, the Branch block with Ã 4-6-8 mm connections, aluminum is compatible with standard 4, 6 and 8 mm pneumatic fittings and tubing.

Can the Branch block with Ã 4-6-8 mm connections, aluminum be mounted on different surfaces using its additional securing holes?

Yes. The Branch block with Ã 4-6-8 mm connections, aluminum can be mounted on different surfaces using its additional securing holes. The product description specifies additional holes for securing it in the desired installation location, and the anodized aluminum body with a working pressure of 12 bar and operating temperature range â10Â°C to +80Â°C supports typical pneumatic mounting requirements. Ensure you use appropriate fasteners and mounting method for the surface and load conditions.

How should I maintain and clean the Branch block with Ã 4-6-8 mm connections, aluminum to ensure longevity?

To ensure longevity of the Branch block with Ã 4-6-8 mm connections, aluminum, follow these maintenance and cleaning guidelines: 1. Routine inspection - Visually inspect weekly or before each use for signs of corrosion, physical damage, loose fastenings or deformation. - Check connection ports (Ã 4/6/8 mm) and sealing faces for wear, scratches or embedded debris that could compromise seals. 2. Cleaning - Depressurize the pneumatic system completely before any cleaning or maintenance. - Remove the Branch block from the system if deep cleaning or access to internal passages is required. - Wipe external surfaces with a soft cloth dampened with mild soapy water. Rinse with clean water and dry thoroughly to avoid standing moisture. - For internal passages blow out with dry, oil-free compressed air rated below the maximum working pressure to remove dust and particles. - Avoid aggressive solvents, strong acids/alkalis or chlorinated cleaners that can damage anodized aluminum finish and seals. - If grease or oil buildup occurs, use isopropyl alcohol sparingly on a lint-free cloth; ensure complete evaporation before re-pressurizing. 3. Seals and fittings - Inspect O-rings and sealing elements at each service interval; replace if cracked, flattened or discolored. - Use compatible lubricants recommended for pneumatic systems (light mineral-based or synthetic pneumatic lubricants). Do not apply lubricants that swell or degrade elastomers used in the block. - Tighten fittings and securing screws to manufacturer torque recommendations; avoid over-tightening which may strip threads or deform ports. 4. Environmental control - Operate within specified temperature range (-10Â°C to +80Â°C) and working pressure (max 12 bar). Avoid thermal cycling or pressure spikes. - Protect the Branch block from prolonged exposure to corrosive atmospheres, salt spray or direct water jets. Use protective covers in harsh environments. 5. Storage - Store disconnected units in a clean, dry place away from direct sunlight and chemicals. Cap ports to prevent ingress of dust or moisture. 6. Recordkeeping and replacement - Maintain service records noting inspections, cleanings and parts replaced. - Replace the Branch block if structural damage, significant corrosion of anodized surface or persistent leakage cannot be repaired. Following these steps will preserve functionality and appearance of the Branch block with Ã 4-6-8 mm connections, aluminum and help ensure safe, long-term operation.

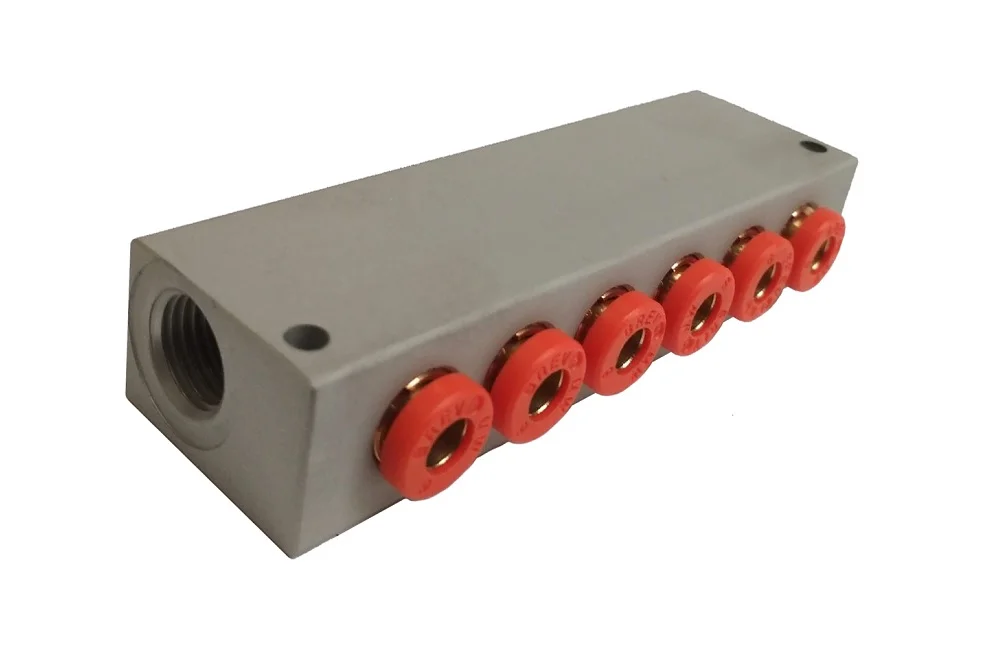

Branch block with Ø 4-6-8 mm connections, aluminum

All products, Accessories for pneumatic fittings/

Additional information

Material	AL – aluminum

Distribution rail with connections O 4-6-8 mm for use in pneumatic systems, allowing the distribution of compressed air under pressure to several other branches. It has additional holes for securing it in the desired location of the installation. Working pressure: 12 bar. Operating temperature: from -10°C to +80°C. Material: anodized aluminum.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7304106	Distribution block with R26 connectors, 2 x BSP 1/8" female thread, 6 x 4 mm hose.	-	12	In stock	Enquiry
MW-7304112	Distribution block with R26 connectors, 2 x BSP 1/8" female thread, 12 x 4 mm hose	-	12	In stock	Enquiry
MW-7306206	Distribution block with R26 connectors, 2 x BSP 1/4" female thread, 6 x 6 mm hose.	-	12	In stock	Enquiry
MW-7306212	Distribution block with R26 connectors, 2 x BSP 1/4" female thread, 12 x 6 mm hose	-	12	In stock	Enquiry
MW-7308306	Distribution block with R26 connectors, 2 x BSP 3/8" female threads, 6 x 8 mm hose.	-	12	In stock	Enquiry
MW-7308312	Distribution block with R26 connectors, 2 x BSP 3/8" female thread, 12 x 8 mm hose	-	12	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Distribution rail with connections O 4-6-8 mm for use in pneumatic systems, allowing the distribution of compressed air under pressure to several other branches. It has additional holes for securing it in the desired location of the installation. Working pressure: 12 bar. Operating temperature: from -10°C to +80°C. Material: anodized aluminum.
