Can the CAMLOCK F connector plug with male thread, aluminum withstand continuous pressures up to 10 bar in petrochemical transfer applications?

Yes . the CAMLOCK F connector plug with male thread, aluminum can withstand continuous pressures up to 10 bar in petrochemical transfer applications, provided the specific connector size is rated for that pressure. The product description states a working pressure of up to 10 bar, depending on connector size, and it is made to the MIL-C-27487 (A-A-59326) standard commonly used for petrochemical transfer. Ensure you verify the exact size and its certified pressure rating, confirm compatibility with the transferred media and temperature range, and follow applicable industry safety and installation guidelines.

Is the CAMLOCK F connector plug with male thread, aluminum compatible with BSPT and NPT fittings in petrochemical transfer systems?

Yes. The CAMLOCK F connector plug with male thread, aluminum is designed with external BSPT or NPT threads per MIL-C-27487 (A-A-59326) and is commonly used as a transfer connection in the petrochemical industry. It will mate with corresponding BSPT or NPT female fittings of the correct type and size. Ensure thread type (BSPT vs NPT) and size match the mating fitting, and verify sealing method (tapered threads typically require appropriate thread sealant or tape). Also confirm the working pressure (up to 10 bar depending on size) and chemical compatibility of aluminum for the specific petrochemical fluid and operating conditions before use.

Does the CAMLOCK F connector plug with male thread, aluminum meet MIL-C-27487 (A-A-59326) certification for petrochemical transfers?

Yes. The CAMLOCK F connector plug with male thread, aluminum is manufactured according to the American military standard MILâCâ27487 (AâAâ59326), and it is commonly used as a transfer connection in the petrochemical industry. Its construction (aluminum body, external BSPT or NPT male thread) and working pressure rating (up to 10 bar, depending on size) make it suitable for typical petrochemical transfer applications that require compliance with MILâCâ27487 (AâAâ59326).

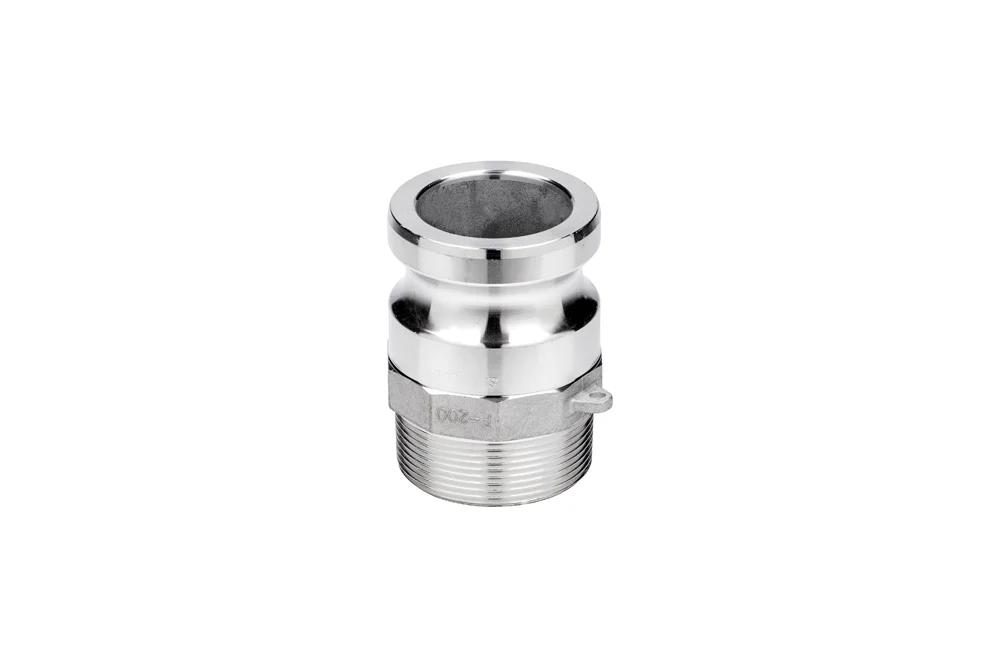

CAMLOCK F connector plug with male thread, aluminum

Additional information

Material	AL – aluminum

CAMLOCK F connector plug with external BSPT or NPT thread made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: aluminum.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-F-050-A	CAMLOCK F 1/2" aluminum connector	-	9	In stock	Enquiry
AC-F-050-AX	CAMLOCK F 1/2" connector, aluminum	-	9	In stock	Enquiry
AC-F-075-A	CAMLOCK F 3/4" aluminum connector	-	10	In stock	Enquiry
AC-F-075-AX	CAMLOCK F 3/4" connector, aluminum	-	10	In stock	Enquiry
AC-F-100-A	CAMLOCK F 1" aluminum connector	-	10	In stock	Enquiry
AC-F-100-A-NPT	CAMLOCK F 1" NPT connector, aluminum	-	10	In stock	Enquiry
AC-F-100-AX	CAMLOCK F 1" connector, aluminum	-	10	In stock	Enquiry
AC-F-100-AX-NPT	CAMLOCK F 1" NPT connector, aluminum	-	10	In stock	Enquiry
AC-F-125-A	CAMLOCK F 1.1/4" aluminum connector	-	10	In stock	Enquiry
AC-F-125-AX	CAMLOCK F 1.1/4" connector, aluminum	-	10	In stock	Enquiry
AC-F-150-A	CAMLOCK F 1.1/2" aluminum connector	-	10	In stock	Enquiry
AC-F-150-AX	CAMLOCK F 1.1/2" connector, aluminum	-	10	In stock	Enquiry
AC-F-200-A	CAMLOCK F 2" aluminum connector	-	10	In stock	Enquiry
AC-F-200-AX	CAMLOCK F 2" connector, aluminum	-	10	In stock	Enquiry
AC-F-250-A	CAMLOCK F 2.1/2" aluminum connector	-	10	In stock	Enquiry
AC-F-250-AX	CAMLOCK F 2.1/2" connector, aluminum	-	10	In stock	Enquiry
AC-F-300-150-AX	CAMLOCK F 3" coupling with GZ 1.1/2", aluminum	-	10	In stock	Enquiry
AC-F-300-200-AX	CAMLOCK F 3" connector with GZ 2", aluminum	-	10	In stock	Enquiry
AC-F-300-400-AX	CAMLOCK F 3" connector with GZ 4", aluminum	-	10	In stock	Enquiry
AC-F-300-A	CAMLOCK F 3" aluminum connector	-	10	In stock	Enquiry
AC-F-300-A-NPT	CAMLOCK F 3" NPT connector, aluminum	-	10	In stock	Enquiry
AC-F-300-AX	CAMLOCK F 3" connector, aluminum	-	10	In stock	Enquiry
AC-F-300-AX-NPT	CAMLOCK F 3" NPT connector, aluminum	-	10	In stock	Enquiry
AC-F-400-A	CAMLOCK F 4" aluminum connector	-	10	In stock	Enquiry
AC-F-400-AX	CAMLOCK F 4" connector, aluminum	-	10	In stock	Enquiry
AC-F-500-A	CAMLOCK F 5" aluminum connector	-	5	In stock	Enquiry
AC-F-500-AX	CAMLOCK F 5" connector, aluminum	-	5	In stock	Enquiry
AC-F-600-A	CAMLOCK F 6" aluminum connector	-	5	In stock	Enquiry
AC-F-600-AX	CAMLOCK F 6" connector, aluminum	-	5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CAMLOCK F connector plug with external BSPT or NPT thread made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: aluminum.
