Is the Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 compatible with both D1 (outer) and D2 (inner) diameter specifications?

Yes. Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 is compatible with both D1 (outer) and D2 (inner) diameter specifications: D1 specifies the outer diameter of the hose and D2 specifies the inner diameter. The BPMT1 clamping sleeve is described with both Diameter D1 [mm] - outer diameter and Diameter D2 [mm] - inner diameter, so the part is intended to fit hoses defined by those two measurements. The material is carbon steel, galvanized.

Can the Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 be used for varying D1 and D2 diameter tolerances?

Yes. The Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 is designed to accommodate hoses by outer diameter D1 and inner diameter D2 within the specified size range for MT1/MTH1 systems. It clamps around the hose outer diameter (D1) while matching the hose bore (D2) to ensure secure seating; slight manufacturing tolerances in D1 and D2 are acceptable as long as the hose dimensions remain within the nominal range for the chosen BPMT1 size. However, significant deviations beyond the specified D1/D2 limits can compromise clamp engagement and sealing, so always verify hose dimensions against the BPMT1 nominal size chart before use.

Does the Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 require matching D1 (outer) or D2 (inner) diameter measurements?

The Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1 requires matching to the hose outer diameter (D1). According to the description, Diameter D1 [mm] is the outer diameter and Diameter D2 [mm] is the inner diameter; for proper clamping of a thermoplastic hose you must select the collet corresponding to the hose outer diameter (D1).

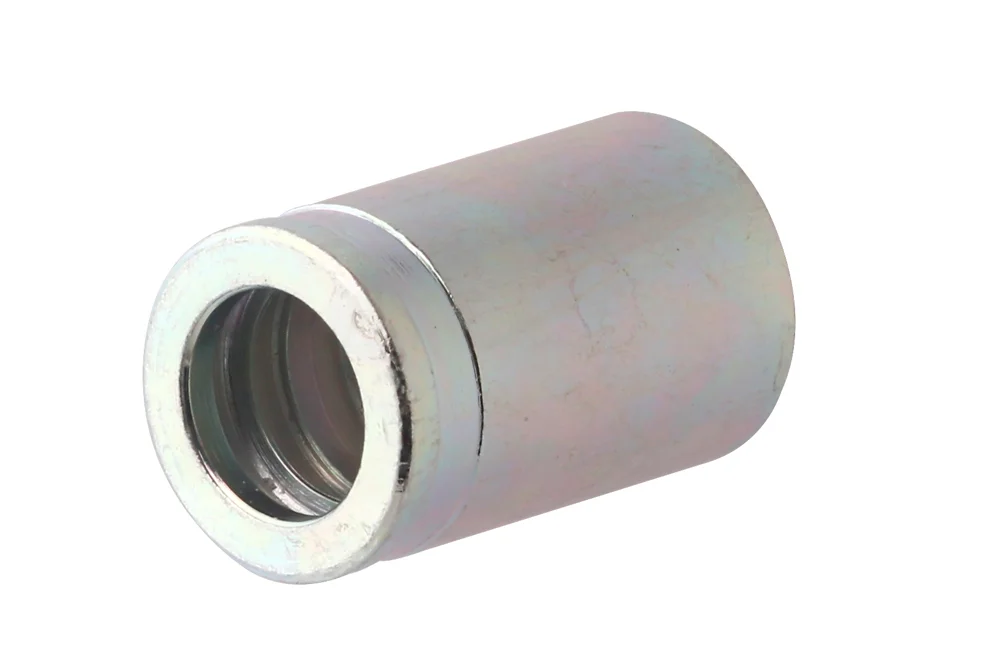

Collet for MT1, MTH1 thermoplastic hoses, carbon steel, type BPMT1

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

BPMT1 clamping sleeve for thermoplastic hoses type MT1 and MTH1. Diameter D1 [mm] – outer diameter. Diameter D2 [mm] – inner diameter. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
ZC-BPMT1-04	Thermoplastic hose sleeve MT1/MTH1 1/4" (BP14MT1)	6	-	In stock	0 zł		Enquiry
ZC-BPMT1-12	Thermoplastic hose sleeve MT1/MTH1 3/4" (BP34R1)	20	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

BPMT1 clamping sleeve for thermoplastic hoses type MT1 and MTH1. Diameter D1 [mm] – outer diameter. Diameter D2 [mm] – inner diameter. Material: carbon steel, galvanized.
