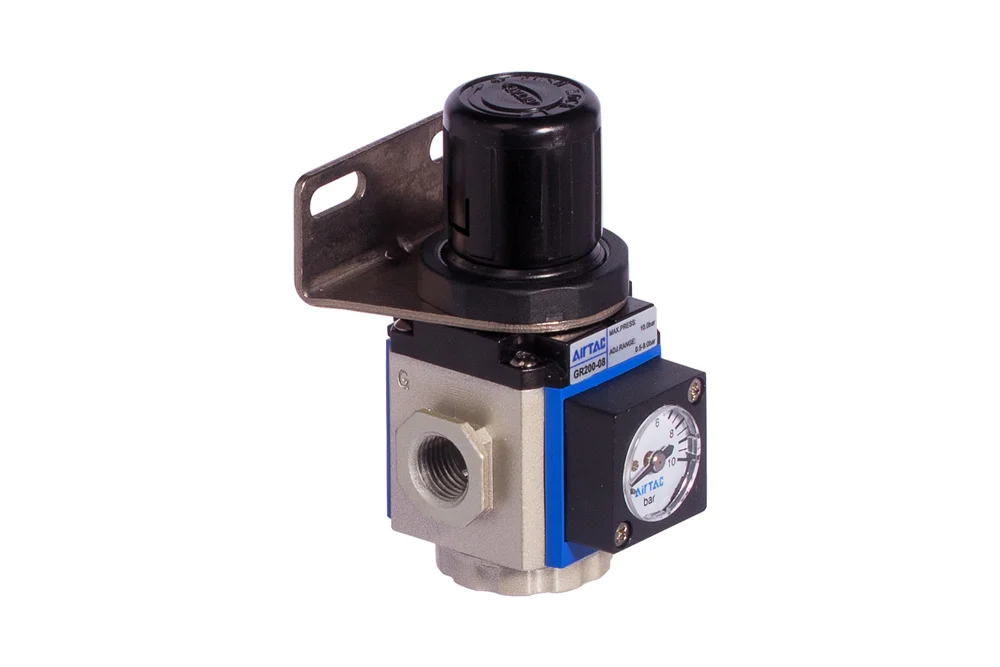

GR compressed air regulator with BSP female thread, G series
GR series G reducer with internal BSP thread, manually adjustable, maintains a constant output pressure regardless of fluctuations in pressure before the valve. The package includes a mounting bracket and a pressure gauge. Connection sets GA (L, T, U shapes) are used for connecting individual components. Size: 200, 300, 400, 600. Supply pressure: up to 10 bar. Operating temperature: up to +70°C. Connection: BSP 1/8″ to 1″. Flow rate: 3000 l/min – size 200, 4000 l/min – size 300, 7500 l/min – size 400, 12000 l/min – size 600 (at input pressure of 6 bar Δp = 1 bar).
Do you need a larger quantity of products or a bespoke quote?
GR series G reducer with internal BSP thread, manually adjustable, maintains a constant output pressure regardless of fluctuations in pressure before the valve. The package includes a mounting bracket and a pressure gauge. Connection sets GA (L, T, U shapes) are used for connecting individual components. Size: 200, 300, 400, 600. Supply pressure: up to 10 bar. Operating temperature: up to +70°C. Connection: BSP 1/8″ to 1″. Flow rate: 3000 l/min – size 200, 4000 l/min – size 300, 7500 l/min – size 400, 12000 l/min – size 600 (at input pressure of 6 bar Δp = 1 bar).
Additional information
| Maximum operating temperature [°C] | 70 |
|---|
