Is the DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel, compatible with both L (light) and S (heavy) series hoses and fittings?

Yes. The DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel is offered in both L (light series) and S (heavy series) versions and thus is compatible with hoses and fittings specified for either series. The product description explicitly lists availability as L (light series) and S (heavy series), so you should select the matching series (L or S) to ensure proper fit and performance with the corresponding hoses and fittings.

Does the DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel, include an O-ring seal as standard?

Yes. The DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel includes an O-ring seal as standard (description: DIN2353 connector Walterscheidâ¢ with metric threaded nut and JIC sleeve, O-ring seal). Available in L (light) and S (heavy) series; carbon steel with Guardian Sealâ¢ galvanic coating.

Can the DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel, be used in corrosive environments due to its Guardian Sealâ¢ coating?

The DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel, with Guardian Sealâ¢ galvanic coating offers improved corrosion resistance compared to uncoated carbon steel, but it is not guaranteed suitable for highly corrosive environments long-term. Explanation: Guardian Sealâ¢ is a protective galvanic coating that enhances corrosion protection and sacrificially protects the base carbon steel. This makes the DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel more robust in humid, mildly corrosive, or indoor applications and extends service life versus bare steel. However, galvanic coatings vary in thickness and composition and are normally intended for moderate protection. they will eventually degrade under aggressive conditions (sea water, salt spray, acidic or alkaline atmospheres, continuous immersion, or chemical exposure). Recommendation: For mildly corrosive or controlled environments the DIN2353 Walterscheidâ¢ connector with nut and JIC bushing, carbon steel with Guardian Sealâ¢ may be acceptable. For highly corrosive environments (marine, offshore, chemical processing, or prolonged wet/salty exposure) consider stainless steel variants or connectors specified for that exposure, or verify coating specifications, test data (salt spray/ISO standards), and expected service life with the supplier before use.

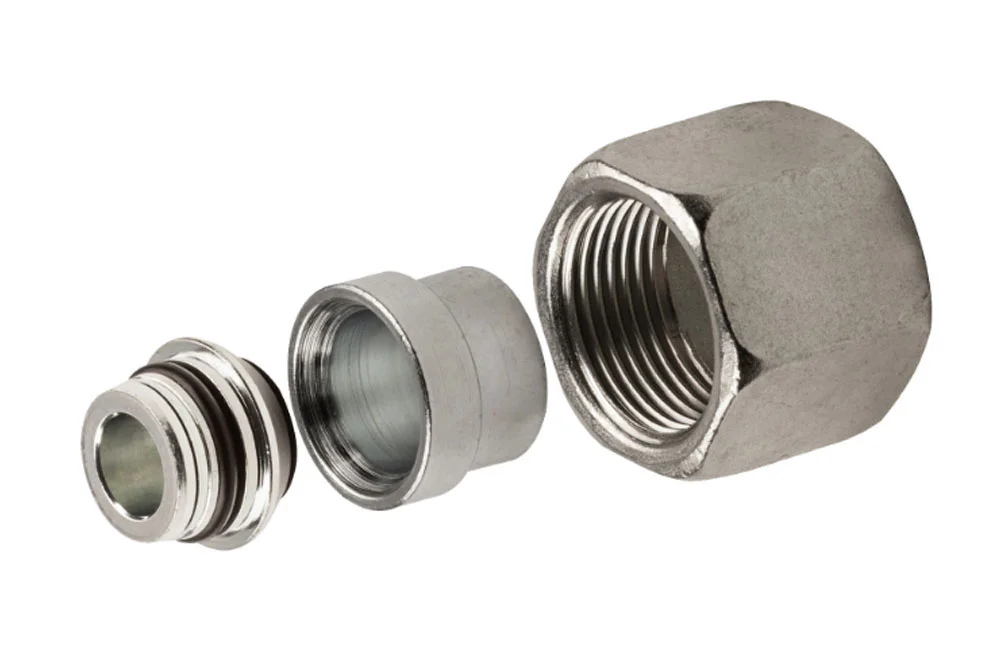

Connector DIN2353 Walterscheid™ with a nut and sleeve JIC, carbon steel

Additional information

Material	CS – steel (cast iron)

Connector DIN2353 Walterscheid™ with a nut with metric thread and sleeve JIC, sealing O-ring. Available as: L (series light), S (series heavy). Material: carbon steel, with galvanic coating Guardian Seal™.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-HJ-06L-W	Connector DIN2353/JIC + nut 6L (M12x1.5) + sleeve JIC	-	500	In stock	Enquiry
HD-HJ-06S-W	Connector DIN2353/JIC + nut 6S (M14x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-08L-W	Connector DIN2353/JIC + nut 8L (M14x1.5) + sleeve JIC	-	500	In stock	Enquiry
HD-HJ-08S-W	Connector DIN2353/JIC + nut 8S (M16x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-10L-W	Connector DIN2353/JIC + nut 10L (M16x1.5) + sleeve JIC	-	500	In stock	Enquiry
HD-HJ-10S-W	Connector DIN2353/JIC + nut 10S (M18x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-12L-W	Connector DIN2353/JIC + nut 12L (M18x1.5) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-12S-W	Connector DIN2353/JIC + nut 12S (M20x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-14S-W	Connector DIN2353/JIC + nut 14S (M22x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-15L-W	Connector DIN2353/JIC + nut 15L (M22x1.5) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-16S-W	Connector DIN2353/JIC + nut 16S (M24x1.5) + sleeve JIC	-	630	In stock	Enquiry
HD-HJ-18L-W	Connector DIN2353/JIC + nut 18L (M26x1.5) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-20S-W	Connector DIN2353/JIC + nut 20S (M30x2) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-22L-W	Connector DIN2353/JIC + nut 22L (M30x2) + sleeve JIC	-	250	In stock	Enquiry
HD-HJ-25S-W	Connector DIN2353/JIC + nut 25S (M36x2) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-28L-W	Connector DIN2353/JIC + nut 28L (M36x2) + sleeve JIC	-	250	In stock	Enquiry
HD-HJ-30S-W	Connector DIN2353/JIC + nut 30S (M42x2) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-35L-W	Connector DIN2353/JIC + nut 35L (M45x2) + sleeve JIC	-	250	In stock	Enquiry
HD-HJ-38S-W	Connector DIN2353/JIC + nut 38S (M52x2) + sleeve JIC	-	400	In stock	Enquiry
HD-HJ-42L-W	Connector DIN2353/JIC + nut 42L (M52x2) + sleeve JIC	-	250	In stock	Enquiry
