Is the FINN-POWER P20 CS press brake available with a 1.6 kW (12 V) or 2.2 kW (24 V) motor for battery-powered service vehicles?

Yes. The FINN-POWER P20 CS press is available with either a 1.6 kW (12 V) or a 2.2 kW (24 V) motor supplied from a battery, specifically designed for equipping service vehicles and technical wagons.

Can the FINN-POWER P20 CS press brake be configured with left- or right-side clamping heads for service vehicle use?

Yes. The FINN-POWER P20 CS press brake is available in two versions with the clamping head positioned either on the right or the left side, specifically designed for service vehicles and technical wagons.

What clamp diameter range and jaw set numbers are required for the FINN-POWER P20 CS press brake?

For the FINN-POWER P20 CS press brake, the clamp diameter is adjustable with a micrometric knob and electrically indicated by an LED. To cover a clamp diameter range from 10 to 61 mm you need 12 interchangeable standard jaw sets, specifically FP-20-10 through FP-20-54 (ordered separately).

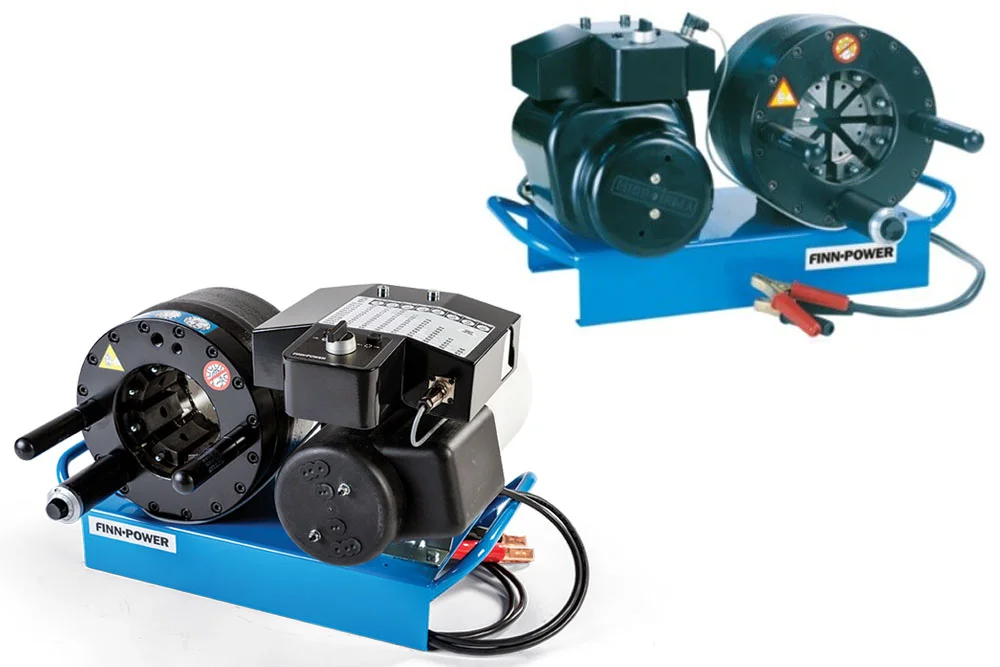

Crimping press FINN-POWER P20 CS

Additional information

Press P20 CS Powered is motor electric 1.6 kW o voltage 12 V or 2.2 kW o voltage 24 V, powered with battery, Intended in particular for equipment cars service and vehicles technical. Diameter crimp set knob micrometric. indicator reaching diameter crimp, signalled is electrically using indicator light LED. press occurs in two versions in which head crimping can be placed po right or left side. All FINN-POWER crimping presses are adapted to work with interchangeable jaw sets (ordered separately). On example for range diameters crimp od 10 for 61 mm should order 12 sets jaws standard od FP-20-10 for FP-20-54.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FP-P20CS-12V-L	Prasa clamping FINN POWER type P20 CS 12V, left	-	-	In stock	Enquiry
FP-P20CS-12V-R	Prasa clamping FINN POWER type P20 CS 12V, right	-	-	In stock	Enquiry
FP-P20CS-24V-L	Prasa clamping FINN POWER type P20 CS 24V, left	-	-	In stock	Enquiry
FP-P20CS-24V-R	Prasa clamping FINN POWER type P20 CS 24V, right	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Press P20 CS Powered is motor electric 1.6 kW o voltage 12 V or 2.2 kW o voltage 24 V, powered with battery, Intended in particular for equipment cars service and vehicles technical. Diameter crimp set knob micrometric. indicator reaching diameter crimp, signalled is electrically using indicator light LED. press occurs in two versions in which head crimping can be placed po right or left side. All FINN-POWER crimping presses are adapted to work with interchangeable jaw sets (ordered separately). On example for range diameters crimp od 10 for 61 mm should order 12 sets jaws standard od FP-20-10 for FP-20-54.
