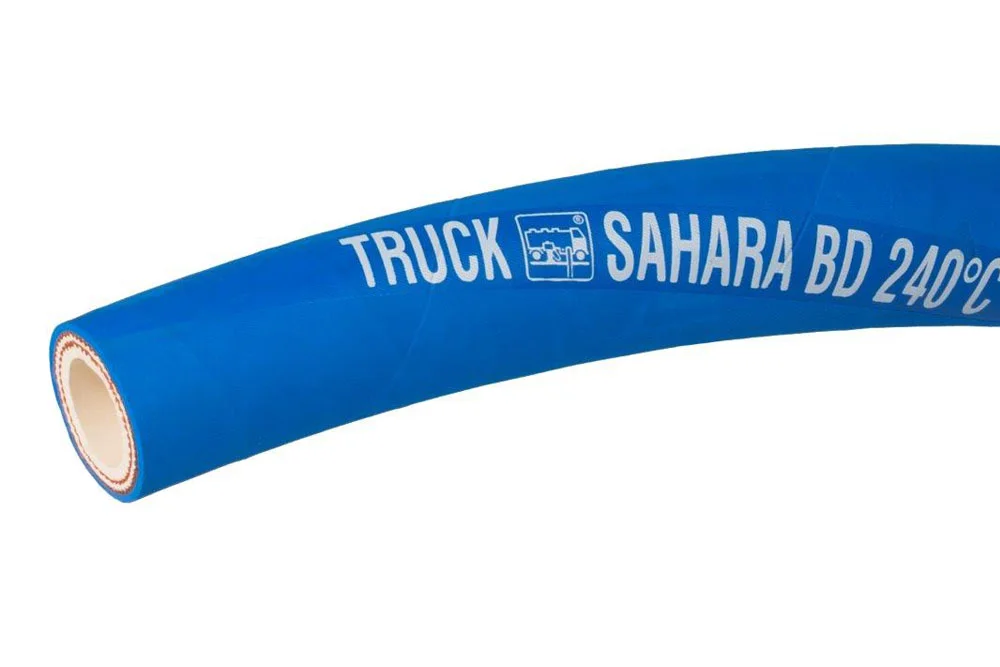

SAHARA® BD hot air delivery hose
Thick, strong, flexible, crush-resistant pressure hose designed for the transmission of hot, dry air from the compressor to the tank installation of the tanker. Used in road tankers for the transport of bulk materials: cement trucks, feed trucks, etc., as well as in other industrial installations. The outer layer is resistant to ozone and weather conditions. Standard length: 60 m or 120 m. Inner layer: white EPR rubber. Reinforcement: synthetic cord. Outer layer: blue EPDM rubber. Working pressure: 10 bar. Operating temperature: from -40°C to +200°C (temporarily up to +240°C).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-SAHARA-BD-025 | SAHARA hose BD 25x41 mm | 25 | 10 | |
| IV-SAHARA-BD-032 | Sahara hose BD 32x48 mm | 32 | 10 | |
| IV-SAHARA-BD-038 | Sahara hose BD 38x54 mm | 38 | 10 | |
| IV-SAHARA-BD-040 | Sahara hose BD 40x56 mm | 40 | 10 | |
| IV-SAHARA-BD-051 | Hose SAHARA BD 51x69 mm | 50 | 10 | |
| IV-SAHARA-BD-060 | Sahara hose BD 60x78 mm | 60 | 10 | |
| IV-SAHARA-BD-063 | Hose SAHARA BD 63.5x82 mm | 65 | 10 | |
| IV-SAHARA-BD-076 | Hose SAHARA BD 76x93 mm | 75 | 10 | |
| IV-SAHARA-BD-076-94 | Sahara hose BD 76x94 mm | 75 | 10 | |
| IV-SAHARA-BD-090 | Hose SAHARA BD 90x108 mm | 90 | 10 | |
| IV-SAHARA-BD-102 | Hose SAHARA BD 102x125 mm | 100 | 10 |
Thick, strong, flexible, crush-resistant pressure hose designed for the transmission of hot, dry air from the compressor to the tank installation of the tanker. Used in road tankers for the transport of bulk materials: cement trucks, feed trucks, etc., as well as in other industrial installations. The outer layer is resistant to ozone and weather conditions. Standard length: 60 m or 120 m. Inner layer: white EPR rubber. Reinforcement: synthetic cord. Outer layer: blue EPDM rubber. Working pressure: 10 bar. Operating temperature: from -40°C to +200°C (temporarily up to +240°C).
Additional information
| Material | EPM (EPR) – ethylene-propylene rubber |
|---|---|
| Maximum operating temperature [°C] | 200 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 40, 60 / 120 |
| Reinforcement | synthetic braid |
