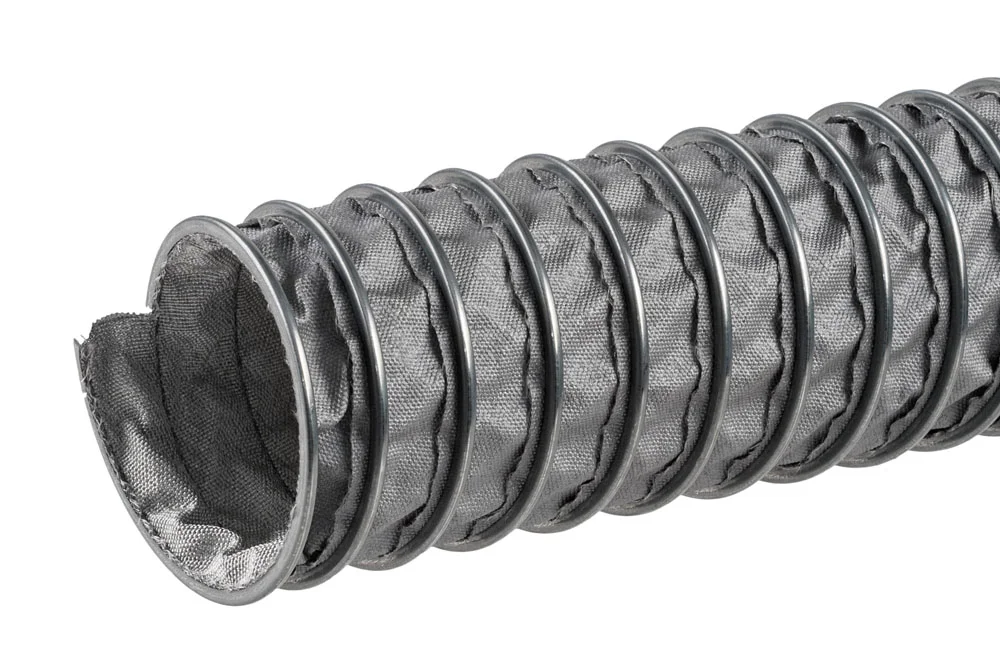

Extraction hose for hot air, exhaust gas up to 400°C GRIPFLEX 400

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

400

Minimum operating temperature [°C]

-50

Vacuum resistance

yes

Standard length [m]

10, 100, 2, 60 / 120

Reinforcement

external spiral made of galvanized steel wire and sheet metal

Light, flexible, and pliable suction hose resistant to temperature, designed for the discharge of gases, vapors, smoke, and high-temperature air. Flame-retardant, resistant to hot sparks within a certain range. Mainly used in the metallurgical, foundry, ceramic, and glass industries, around furnaces, engines, and as thermal insulation. Characterized by high compressibility – up to 1:6, strong construction due to glass fabric reinforced with stainless steel threads, and impact resistance thanks to the external spiral. Used exclusively as a suction hose operating under vacuum, due to the possibility of gas permeation when under pressure (degassing). Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with left-handed bridge clamps. Standard length: from 2 to 10 m – contact Tubes International. Hose material: impregnated glass fabric with stainless steel fibers, externally gray. Reinforcement: external spiral made of wire and galvanized steel sheet. Operating temperature: from -50°C to +400°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TS-GRIP400-050GRIPFLEX 400 hose 50 mm50-In stock
Enquiry
TS-GRIP400-060GRIPFLEX 400 hose 60 mm60-In stock
Enquiry
TS-GRIP400-065GRIPFLEX hose 400 65 mm65-In stock
Enquiry
TS-GRIP400-070GRIPFLEX hose 400 70 mm70-In stock
Enquiry
TS-GRIP400-075GRIPFLEX hose 400 75 mm75-In stock
Enquiry
TS-GRIP400-080GRIPFLEX hose 400 80 mm80-In stock
Enquiry
TS-GRIP400-090GRIPFLEX hose 400 90 mm90-In stock
Enquiry
TS-GRIP400-100GRIPFLEX hose 400 100 mm100-In stock
Enquiry
TS-GRIP400-110GRIPFLEX hose 400 110 mm110-In stock
Enquiry
TS-GRIP400-120GRIPFLEX hose 400 120 mm120-In stock
Enquiry
TS-GRIP400-125GRIPFLEX hose 400 125 mm125-In stock
Enquiry
TS-GRIP400-130GRIPFLEX hose 400 130 mm130-In stock
Enquiry
TS-GRIP400-140GRIPFLEX hose 400 140 mm140-In stock
Enquiry
TS-GRIP400-150GRIPFLEX hose 400 150 mm150-In stock
Enquiry
TS-GRIP400-160GRIPFLEX hose 400 160 mm160-In stock
Enquiry
TS-GRIP400-170GRIPFLEX hose 400 170 mm160-In stock
Enquiry
TS-GRIP400-175GRIPFLEX hose 400 175 mm180-In stock
Enquiry
TS-GRIP400-180GRIPFLEX hose 400 180 mm180-In stock
Enquiry
TS-GRIP400-200GRIPFLEX hose 400 200 mm200-In stock
Enquiry
TS-GRIP400-215GRIPFLEX hose 400 215 mm220-In stock
Enquiry
TS-GRIP400-225GRIPFLEX hose 400 225 mm225-In stock
Enquiry
TS-GRIP400-250GRIPFLEX hose 400 250 mm250-In stock
Enquiry
TS-GRIP400-275GRIPFLEX hose 400 275 mm275-In stock
Enquiry
TS-GRIP400-300GRIPFLEX hose 400 300 mm300-In stock
Enquiry
TS-GRIP400-315GRIPFLEX hose 400 315 mm325-In stock
Enquiry
TS-GRIP400-325GRIPFLEX hose 400 325 mm325-In stock
Enquiry
TS-GRIP400-350GRIPFLEX hose 400 350 mm350-In stock
Enquiry
TS-GRIP400-375GRIPFLEX hose 400 375 mm350-In stock
Enquiry
TS-GRIP400-400GRIPFLEX hose 400 400 mm400-In stock
Enquiry
TS-GRIP400-450GRIPFLEX hose 400 450 mm450-In stock
Enquiry
TS-GRIP400-500GRIPFLEX hose 400 500 mm500-In stock
Enquiry
TS-GRIP400-600GRIPFLEX hose 400 600 mm600-In stock
Enquiry
TS-GRIP400-700GRIPFLEX hose 400 700 mm700-In stock
Enquiry
TS-GRIP400-800GRIPFLEX hose 400 800 mm800-In stock
Enquiry
TS-GRIP400-900GRIPFLEX hose 400 900 mm900-In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light, flexible, and pliable suction hose resistant to temperature, designed for the discharge of gases, vapors, smoke, and high-temperature air. Flame-retardant, resistant to hot sparks within a certain range. Mainly used in the metallurgical, foundry, ceramic, and glass industries, around furnaces, engines, and as thermal insulation. Characterized by high compressibility – up to 1:6, strong construction due to glass fabric reinforced with stainless steel threads, and impact resistance thanks to the external spiral. Used exclusively as a suction hose operating under vacuum, due to the possibility of gas permeation when under pressure (degassing). Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with left-handed bridge clamps. Standard length: from 2 to 10 m – contact Tubes International. Hose material: impregnated glass fabric with stainless steel fibers, externally gray. Reinforcement: external spiral made of wire and galvanized steel sheet. Operating temperature: from -50°C to +400°C.

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

400

Minimum operating temperature [°C]

-50

Vacuum resistance

yes

Standard length [m]

10, 100, 2, 60 / 120

Reinforcement

external spiral made of galvanized steel wire and sheet metal

Do you need a larger quantity of products or a bespoke quote?
