Can AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel be sealed on BSPT threads using Teflon tape or liquid sealant and also on the 60Â° cone?

Yes. The AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel is designed for sealing on the BSPT external thread using PTFE (Teflon) tape or a suitable liquid thread sealant. It also supports sealing on the 60Â° cone face. The part is intended for crimping into hydraulic and industrial hoses and has a zincânickel coating (6â10 Âµm) for high corrosion resistance. When assembling, follow proper thread sealant application and torque practices for BSPT (tapered) threads and ensure the 60Â° cone face is clean and properly engaged to achieve the intended dual sealing.

Can AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel be sealed only on the 60Â° cone instead of using Teflon tape or liquid sealant on BSPT threads?

Yes. AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel can be sealed on the 60Â° cone instead of using Teflon tape or liquid sealant on the BSPT threads, provided the mating port is designed to accept cone sealing. The product description states possible sealing on a 60Â° cone (AGR-K) and also mentions thread sealing options; use cone sealing when the counterpart has a matching 60Â° cone face to ensure proper metal-to-metal or elastomer-assisted seal. Ensure correct assembly, torque and surface condition; if the port lacks a 60Â° cone, then use Teflon tape or liquid sealant on the BSPT threads as specified.

Is AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel compatible with PTFE tape on BSPT threads and cone sealing?

Yes. AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel is compatible with PTFE (Teflon) tape on BSPT threads and with 60Â° cone sealing. The product description explicitly states external BSPT thread sealing can be done using Teflon tape or liquid sealant, and it also allows possible sealing on a 60Â° cone (AGR-K). The zinc-nickel coating and carbon steel construction do not prevent use of PTFE tape or cone sealing; the coating provides corrosion resistance but does not affect the sealing methods specified. Ensure correct application of PTFE tape (wrap in the thread direction, appropriate number of turns) and proper assembly torque to achieve reliable thread or cone seal without damaging threads or the coating.

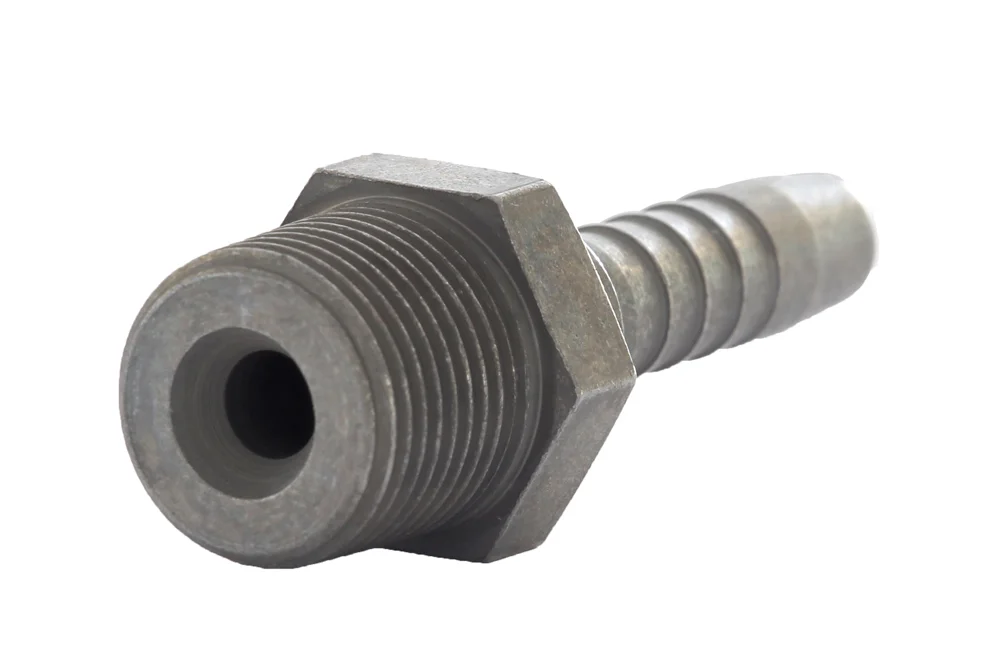

AGR-K hydraulic end, type ZBZ130, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	6

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external BSPT thread, sealing on the thread using Teflon tape or liquid sealant; possible sealing on a 60° cone (AGR-K). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ130-02-03-CN	End. GZ 1/8" BSPT, hose 3/16", Zn-Ni	5		In stock	Enquiry
TI-ZBZ130-02-04-CN	End. GZ 1/8" BSPT, hose 1/4", Zn-Ni	6		In stock	Enquiry
TI-ZBZ130-04-04-CN	End. GZ 1/4" BSPT, hose 1/4", Zn-Ni	6	350	In stock	Enquiry
TI-ZBZ130-06-04-CN	End. GZ 3/8" BSPT, hose 1/4", Zn-Ni	6	280	In stock	Enquiry
TI-ZBZ130-06-05-CN	End. GZ 3/8" BSPT, hose 5/16", Zn-Ni	8	280	In stock	Enquiry
TI-ZBZ130-06-06-CN	End. GZ 3/8" BSPT, hose 3/8", Zn-Ni	10	280	In stock	Enquiry
TI-ZBZ130-08-06-CN	End. GZ 1/2" BSPT, hose 3/8", Zn-Ni	10	280	In stock	Enquiry
TI-ZBZ130-08-08-CN	End. GZ 1/2" BSPT, hose 1/2", Zn-Ni	12	280	In stock	Enquiry
TI-ZBZ130-12-10-CN	End. GZ 3/4" BSPT, hose 5/8", Zn-Ni	16	280	In stock	Enquiry
TI-ZBZ130-12-12-CN	End. GZ 3/4" BSPT, hose 3/4", Zn-Ni	20	280	In stock	Enquiry
TI-ZBZ130-16-12-CN	End. GZ 1" BSPT, hose 3/4", Zn-Ni	20	280	In stock	Enquiry
TI-ZBZ130-16-16-CN	End. GZ 1" BSPT, hose 1", Zn-Ni	25	280	In stock	Enquiry
TI-ZBZ130-20-16-CN	End. GZ 1.1/4" BSPT, hose 1", Zn-Ni	25	210	In stock	Enquiry
TI-ZBZ130-20-20-CN	End. GZ 1.1/4" BSPT, hose 1.1/4", Zn-Ni	32	210	In stock	Enquiry
TI-ZBZ130-24-24-CN	End. GZ 1.1/2" BSPT, hose 1.1/2", Zn-Ni	38	185	In stock	Enquiry
TI-ZBZ130-32-32-CN	End. GZ 2" BSPT, hose 2", Zn-Ni	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with external BSPT thread, sealing on the thread using Teflon tape or liquid sealant; possible sealing on a 60° cone (AGR-K). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt chamber). Material: carbon steel, zinc-nickel.
