Can DKL hydraulic end, type ZMW111, light series, AISI 304 steel be crimped using standard crimping sleeves for hydraulic hoses?

Yes . the DKL hydraulic end, type ZMW111, light series, AISI 304 steel can be crimped using a standard crimping sleeve appropriate for the hose type. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Key points to ensure correct and safe crimping: - Use a crimping sleeve matched to the hose construction (e.g., single-wire, multi-wire, textile) and nominal size. - Verify sleeve material and dimensions are compatible with AISI 304 steel fitting and hose specifications. - Ensure the crimping machine and die set are rated for the lightweight series dimensions of ZMW111 to achieve proper crimp diameter and uniform pressure. - Confirm metal-to-metal sealing (internal metric thread and nut, universal cone 24Â°/60Â° DKL) is properly engaged and that the crimped sleeve provides sufficient retention for intended pressure and application. - Follow hose manufacturer and crimp-sleeve supplier guidelines, and perform pressure testing after assembly. If any uncertainty exists about sleeve size or crimping parameters, consult the hose and sleeve manufacturers or technical datasheets before assembly.

Is DKL hydraulic end, type ZMW111, light series, AISI 304 steel compatible with stainless-steel crimping sleeves for industrial hoses?

Yes. DKL hydraulic end, type ZMW111, light series, AISI 304 steel is compatible with stainless-steel crimping sleeves for industrial hoses, provided the sleeve is designed for the specific hose type and crimping dimensions. The fitting is explicitly designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose; material AISI 304 is compatible with stainless sleeves. Ensure the sleeve profile, crimp diameter, and crimping procedure match the hose and ZMW111 specifications to achieve a proper metal-to-metal seal and safe operation.

Does DKL hydraulic end, type ZMW111, light series, AISI 304 steel require a specific crimp diameter for compatible sleeves?

DKL hydraulic end, type ZMW111, light series, AISI 304 steel does not specify a single universal crimp diameter in the provided description. The fitting is described as a standard hydraulic end (type Z) with a universal cone (24Â°/60Â° DKL), designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. This means the required crimp sleeve diameter depends on the hose construction, hose inner and outer diameters, and the sleeve profile recommended by the hose manufacturer. For correct and safe assembly you must: - Use the crimp sleeve size and profile recommended by the hose manufacturer for the specific hose model paired with the ZMW111 fitting. - Follow crimping tool and procedure specifications (crimp force, die set) appropriate for the sleeve and hose. - Verify compatibility with AISI 304 material if sleeves or mating components require specific materials or surface treatments. If you need a precise crimp diameter, provide the exact hose type (manufacturer and part number) or consult the hose supplierâs crimp charts and the sleeve manufacturerâs recommendations.

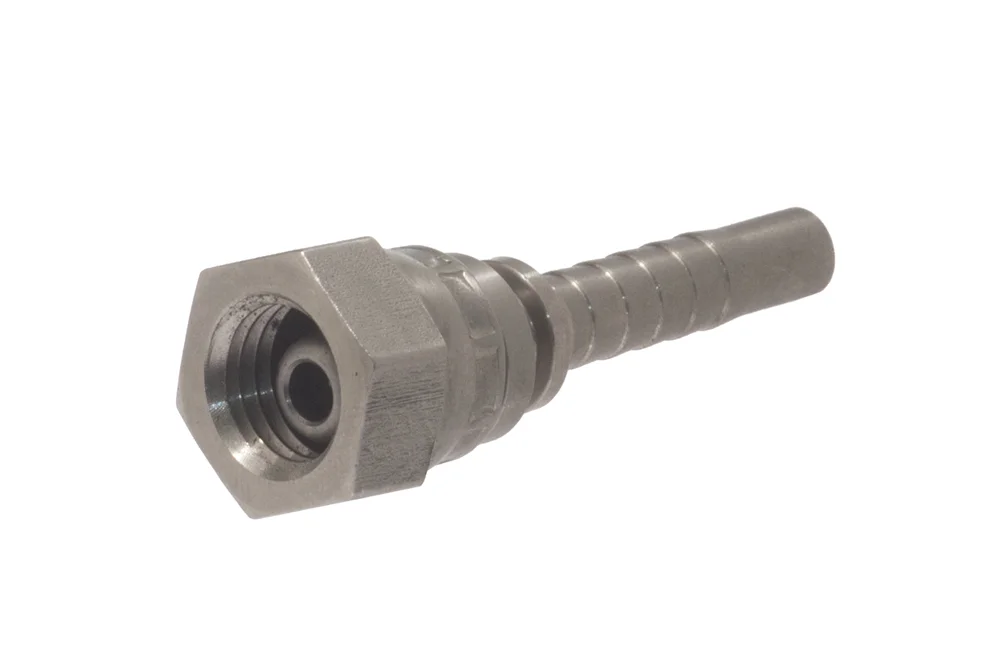

Fitting hydraulic DKL, type ZMW111, series light, AISI 304

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	2

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing metal – metal, cone uniwersalny 24°/60° (DKL), series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW111-12-04-SS304	Fitting M12x1.5 female, hose 1/4", 24/60°, light, AISI 304	6	-	In stock	Enquiry
TI-ZMW111-16-05-SS304	Fitting M16x1.5 female, hose 5/16", 24/60°, light, AISI 304	8	-	In stock	Enquiry
TI-ZMW111-16-10-SS304	Fitting M16x1.5 female, hose 5/8", 24/60°, light, AISI 304	16	-	In stock	Enquiry
TI-ZMW111-18-08-SS304	Fitting M18x1.5 female, hose 1/2", 24/60°, light, 304	12	-	In stock	Enquiry
TI-ZMW111-22-08-SS304	Fitting M22x1.5 female, hose 1/2", 24/60°, light, AISI 304	12	-	In stock	Enquiry
TI-ZMW111-26-08-SS304	Fitting M26x1.5 female, hose 1/2", 24/60°, light, 304	12	-	In stock	Enquiry
TI-ZMW111-26-10-SS304	Fitting M26x1.5 female, hose 5/8", 24/60°, light, AISI 304	16	-	In stock	Enquiry
TI-ZMW111-30-12-SS304	Fitting M30x2 female, hose 3/4", 24/60°, light, AISI 304	20	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing metal – metal, cone uniwersalny 24°/60° (DKL), series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 304.
