Is the TOYOTA hydraulic end, type ZBW150, AISI 316L steel compatible with standard crimping sleeves for industrial hoses?

Yes. The TOYOTA hydraulic end, type ZBW150, AISI 316L steel is designed for crimping in hydraulic and industrial hoses and is compatible with standard crimping sleeves appropriate for the hose type. It features a regular hydraulic tail (type Z) with internal BSP thread and nut, and seals on a 60Â° reverse cone (TOYOTA type), so you must use a crimping sleeve that matches the hose's O.D., reinforcement, and material specifications. Also ensure the sleeve profile and crimp dimensions are suitable for the hose construction and that crimping is performed with the correct crimping tool and procedure for AISI 316L fittings and the specific hose to achieve proper seal and mechanical integrity.

Does the TOYOTA hydraulic end, type ZBW150, AISI 316L steel require specific torque settings when crimped with standard sleeves?

No, the TOYOTA hydraulic end, type ZBW150, AISI 316L steel does not require a unique torque setting when crimped with standard sleeves. It is designed for crimping using a sleeve appropriate for the hose type; crimping must follow the sleeve and hose manufacturerâs specified crimp dimensions and tooling program (die profile, press force, and crimping pattern). Ensure correct sleeve selection, proper hose insertion depth, and use calibrated crimping equipment set to the hose/sleeve supplierâs parameters. After crimping, inspect for correct dimensions, no visible damage, and pressure-test the assembly per applicable standards.

Can the TOYOTA hydraulic end, type ZBW150, AISI 316L steel be used with BSP-threaded hose fittings from other manufacturers?

Generally yes, but with important caveats. Explanation: - The TOYOTA hydraulic end, type ZBW150, AISI 316L steel has an internal BSP thread and nut and seals on a 60Â° reverse cone. That geometry and BSP thread form the basis for compatibility with external BSP-threaded hose fittings from other manufacturers. - Compatibility requires matching thread type and size (BSPP or BSPT as specified), correct pitch and diameter, and the same 60Â° reverse-cone sealing face geometry. If the external fitting from another manufacturer uses the same BSP thread standard and a complementary 60Â° reverse-cone sealing surface, it can physically mate and form a seal. - Material (AISI 316L) does not prevent use with other manufacturersâ fittings, but ensure corrosion and galvanic compatibility with the mating fitting material and the fluid/media used. - Crimping considerations: ZBW150 is designed for crimping with a sleeve suitable for the hose type. When using a fitting from another maker, verify the crimp sleeve dimensions and crimp profile are compatible with the fitting and hose to achieve a reliable crimped assembly. - Seal reliability and safety: Even with matching thread and cone, tolerances and surface finish between manufacturers can differ. For high-pressure, safety-critical, or vibration-prone applications, use fittings and ends with documented compatibility or from the same system supplier, or perform pressure testing after assembly. Recommendations: 1. Confirm the external fitting uses BSP thread (type and size) and a 60Â° reverse-cone sealing face matching ZBW150. 2. Verify crimp sleeve and crimping die compatibility for the hose + fitting combination. 3. Check material compatibility (galvanic corrosion) for AISI 316L vs the mating fitting material. 4. Perform pressure/leak testing after assembly; for critical applications prefer matched-system components or manufacturer confirmation of cross-compatibility. Conclusion: The TOYOTA hydraulic end, type ZBW150, AISI 316L steel can be used with BSP-threaded hose fittings from other manufacturers if thread, cone geometry, crimping specs, and materials are matched and verified; otherwise, use caution and test.

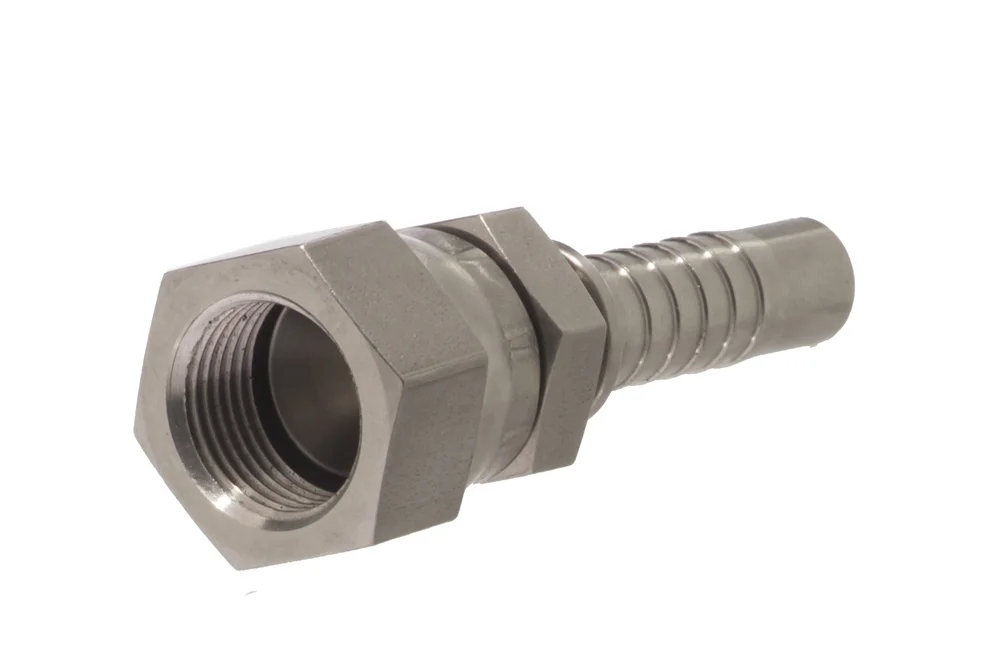

Fitting hydraulic TOYOTA, type ZBW150, AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, inverted 60° cone sealing – type TOYOTA. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-ZBW150-06-06-SS	Fitting 3/8" BSP female, hose 3/8", 60° cone odwr. AISI 316L	10	-	In stock	0 zł		Enquiry
TI-ZBW150-12-12-SS	Fitting 3/4" BSP female, hose 3/4", 60° cone odwr., AISI 316	20	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, inverted 60° cone sealing – type TOYOTA. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.
