Can DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel be crimped using standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel can be crimped using standard crimping sleeves intended for industrial hydraulic hoses, provided the sleeve matches the hose type and size. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure the chosen sleeve and crimping machine are rated for the hose construction, diameter, and pressure class, and follow the hose and fitting manufacturersâ crimp specifications and quality checks (correct crimp dimension, no leakage, and pressure testing) to guarantee a safe, reliable assembly.

Is DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel compatible with crimping sleeves for high-pressure hydraulic hoses?

Yes. DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel Format is compatible with crimping sleeves for high-pressure hydraulic hoses. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you select a crimping sleeve and hose assembly rated for the intended pressure and hose manufacturer specifications, and follow proper crimping tooling and dimension guidelines for a secure, leak-free connection.

Is DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel suitable for crimping with sleeves for medium-pressure hoses?

Yes. DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel is suitable for crimping with sleeves for medium-pressure hoses. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. Key points supporting suitability: - Geometry and sealing: It has an internal metric thread and nut with an O-ring seal on a 24Â° cone (DKOL), a common sealing method for hydraulic fittings at medium pressures. - Crimping design: The fitting is specified for crimping with a sleeve, meaning its tail and dimensions are intended to accept standard crimp sleeves for compatible hoses. - Material: AISI 304 stainless steel provides corrosion resistance and adequate mechanical properties for many medium-pressure hydraulic applications (verify compatibility with fluid and environment). - 90Â° light series: The angled, lightweight design is intended for hose assemblies where crimping is required without heavy-duty bulk; ensure sleeve and crimping parameters match the light series dimensions. Recommended checks before crimping: - Confirm exact hose type, diameter, and manufacturer-recommended sleeve dimensions and crimping parameters (die set, pressure). - Verify pressure rating compatibility between the hose, sleeve, and DKOL ZMW221 fitting for your specific medium-pressure application. - Ensure crimper tooling is suitable for the light-series fitting geometry and stainless-steel material. If those checks are satisfied, the DKOL 90Â° hydraulic end, type ZMW221, light series, AISI 304 steel is appropriate for crimping with sleeves for medium-pressure hoses.

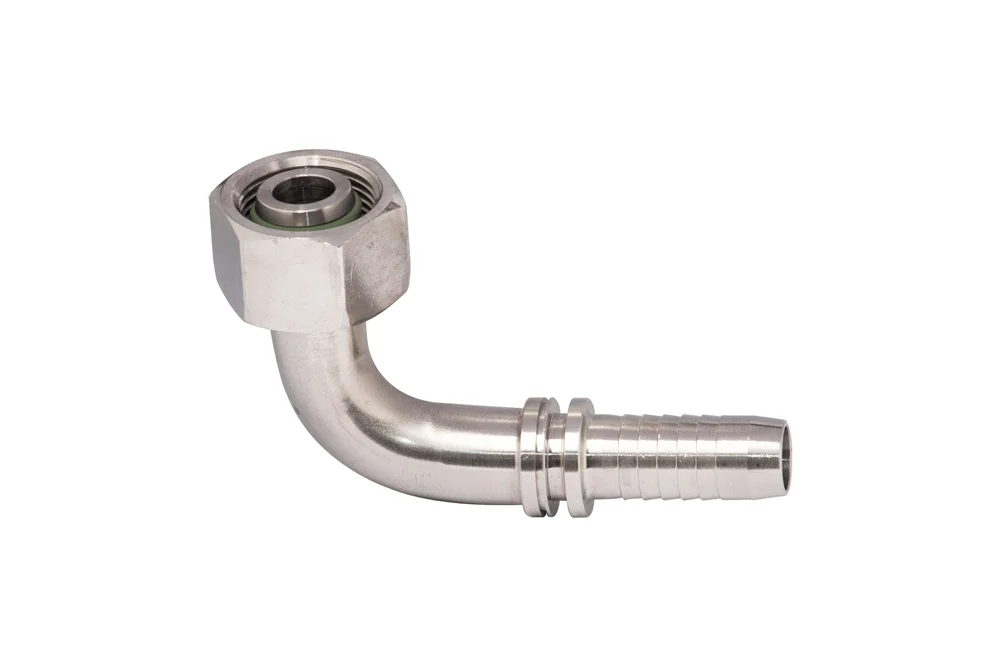

Fitting hydraulic DKOL 90°, type ZMW221, series light, AISI 304

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	2

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 90°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW221-14-04-SS304	Fitting 90° M14x1.5 female, hose 1/4", 24°, O-ring, light, AISI 304	6	280	In stock	Enquiry
TI-ZMW221-16-04-SS304	Fitting 90° M16x1.5 female, hose 1/4", 24°, O-ring, light, AISI 304	6	280	In stock	Enquiry
TI-ZMW221-18-06-SS304	Fitting 90° M18x1.5 female, hose 3/8", 24°, O-ring, light, AISI 304	10	280	In stock	Enquiry
TI-ZMW221-22-08-SS304	Fitting 90° M22x1.5 female, hose 1/2", 24°, O-ring, light, AISI 304	12	210	In stock	Enquiry
TI-ZMW221-30-10-SS304	Fitting 90° M30x2 female, hose 5/8", 24°, O-ring, light, AISI 304	16	210	In stock	Enquiry
TI-ZMW221-30-12-SS304	Fitting 90° M30x2 female, hose 3/4", 24°, O-ring, light, AISI 304	20	210	In stock	Enquiry
TI-ZMW221-45-16-SS304	Fitting 90° M45x2 female, hose 1", 24°, O-ring, light, AISI 304	25	100	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 90°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 304.
