Does the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel require a specific flat gasket size for proper sealing with internal BSP thread and nut?

Yes. The DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel requires a specific flat gasket for proper flat sealing when used with an internal BSP thread and nut. The product description explicitly states that flat sealing requires the use of an additional flat gasket (DKR-F). To ensure correct sealing and compatibility you must use the gasket size and material specified by the manufacturer that matches the internal BSP thread size of the ZBW240 fitting and the nut. Using an incorrect gasket size or thickness can lead to leaks or improper fit; verify the BSP thread nominal size (e.g., 1/4", 1/2", etc.) and order the corresponding DKR-F flat gasket recommended for that thread.

Is the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel compatible with standard BSP nuts and flat gaskets for industrial hose crimping?

Yes. The DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel is compatible with standard internal BSP nuts and flat gaskets: it is designed as a standard hydraulic end fitting (type Z) with internal BSP thread and nut, flat sealing that requires an additional flat gasket (DKR-F). It is intended for crimping into hydraulic and industrial hoses using an appropriate crimping sleeve for the hose type, and the AISI 316L construction is suitable for typical industrial applications.

Can the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel be used with metric BSP adapters for flat sealing?

Yes. the DKR-F 90Â° hydraulic end, type ZBW240, AISI 316L steel can be used with metric BSP adapters for flat sealing, provided a matching flat gasket is installed. The product description specifies internal BSP thread and nut with flat sealing and explicitly states it requires the use of an additional flat gasket (DKR-F). Ensure the BSP adapterâs face dimensions and sealing surface match the gasket and ZBW240âs nut/thread size, and verify crimping sleeve compatibility with your hose type when assembling.

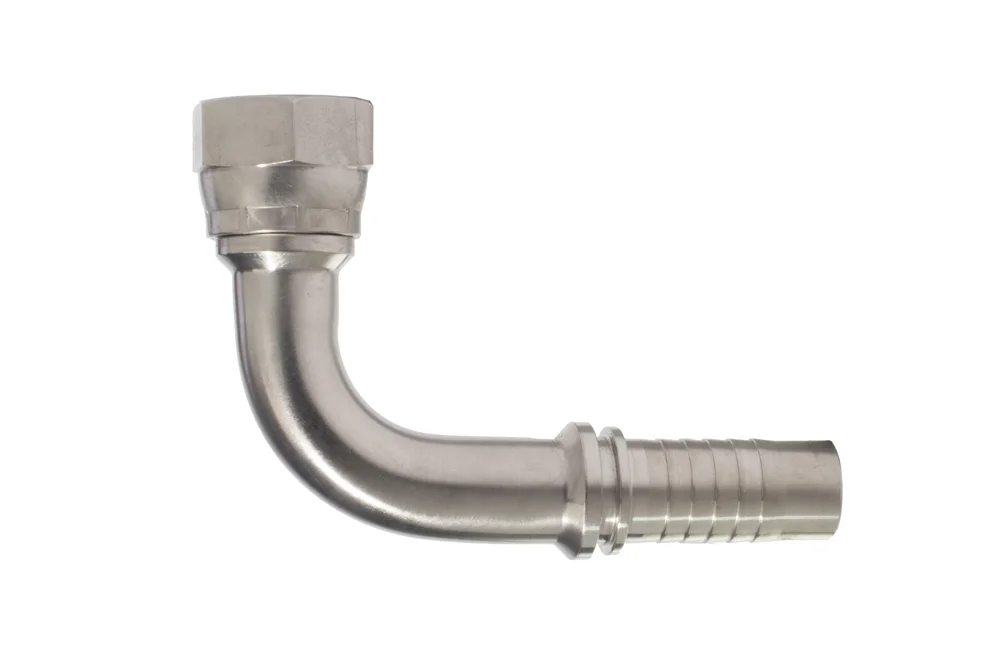

DKR-F 90° hydraulic end, type ZBW240, AISI 316L steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	2

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, flat sealing – requires the use of an additional flat gasket (DKR-F), 90° angled. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW240-04-04-SS	End fitting 90° G 1/4" BSP, hose 1/4", butt weld, AISI 316L	6	450	In stock	Enquiry
TI-ZBW240-06-05-SS	End fitting 90° G 3/8" BSP, hose 5/16", butt, AISI 316	8		In stock	Enquiry
TI-ZBW240-06-06-SS	End fitting 90° G 3/8" BSP, hose 3/8", butt weld, AISI 316L	10	445	In stock	Enquiry
TI-ZBW240-08-08-SS	End fitting 90° G 1/2" BSP, hose 1/2", butt weld, AISI 316L	12	415	In stock	Enquiry
TI-ZBW240-12-12-SS	End fitting 90° G 3/4" BSP, hose 3/4", butt weld, AISI 316L	20	350	In stock	Enquiry
TI-ZBW240-16-16-SS	End fitting 90° G 1" BSP, hose 1", face-to-face, AISI 316L	25	280	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal BSP thread and nut, flat sealing – requires the use of an additional flat gasket (DKR-F), 90° angled. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: AISI 316L steel.
