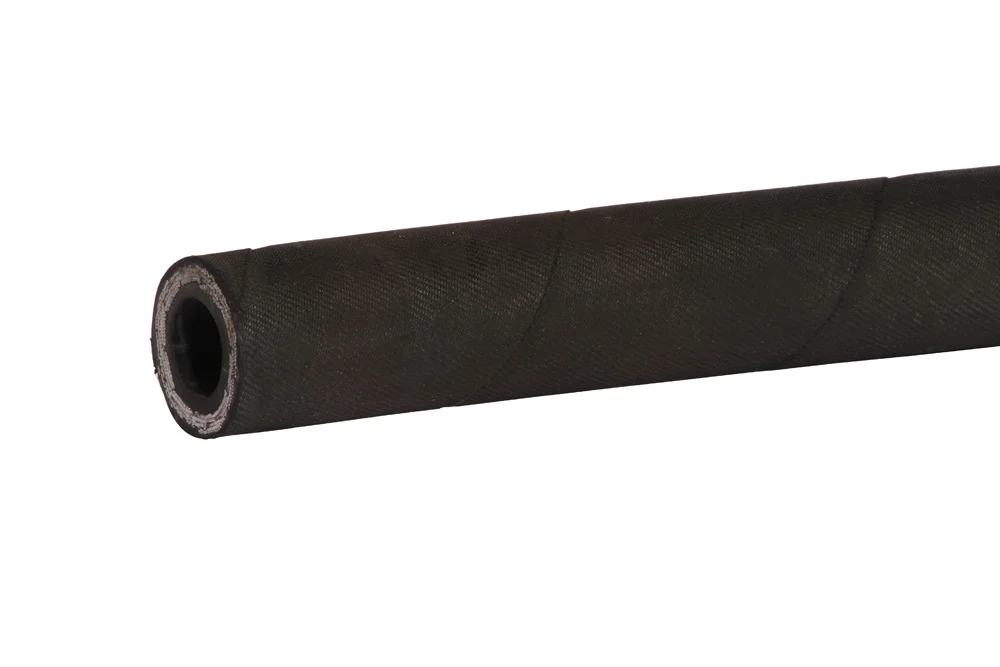

PERFORMER 2SN long life hydraulic hose
General-purpose hydraulic hose with increased lifespan compared to the standard. Confirmed hose lifespan of 400,000 impulse cycles. Standards: EN 853 2SN, ISO 1436-2SN, SAE 100R2S-AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: double steel braid. Outer layer: black, oil-resistant synthetic rubber. Working pressure: from 80 bar to 400 bar depending on hose diameter. Operating temperature: from -40°C to +100°C (temporarily +120°C). For water and air, maximum operating temperature +70°C. For air above 17 bar, micro-perforation of the outer layer is required.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| HW-2SN-06P | PERFORMER 2SN 1/4" hydraulic hose | 6 | 400 | |
| HW-2SN-08P | PERFORMER 2SN 5/16 hydraulic hose | 8 | 350 | |
| HW-2SN-10P | PERFORMER 2SN 3/8" hydraulic hose | 10 | 330 | |
| HW-2SN-13P | PERFORMER 2SN 1/2" hydraulic hose | 12 | 275 | |
| HW-2SN-16P | PERFORMER 2SN 5/8" hydraulic hose | 16 | 250 | |
| HW-2SN-19P | PERFORMER 2SN 3/4" hydraulic hose | 20 | 215 | |
| HW-2SN-25P | PERFORMER 2SN 1" hydraulic hose | 25 | 165 | |
| HW-2SN-32P | PERFORMER 2SN 1.1/4" hydraulic hose | 32 | 125 | |
| HW-2SN-38P | PERFORMER 2SN 1.1/2" hydraulic hose | 38 | 90 | |
| HW-2SN-51P | PERFORMER 2SN 2" hydraulic hose | 50 | 80 |
General-purpose hydraulic hose with increased lifespan compared to the standard. Confirmed hose lifespan of 400,000 impulse cycles. Standards: EN 853 2SN, ISO 1436-2SN, SAE 100R2S-AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: double steel braid. Outer layer: black, oil-resistant synthetic rubber. Working pressure: from 80 bar to 400 bar depending on hose diameter. Operating temperature: from -40°C to +100°C (temporarily +120°C). For water and air, maximum operating temperature +70°C. For air above 17 bar, micro-perforation of the outer layer is required.
Additional information
| Material | synthetic rubber |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -40 |
