What hose diameters can the UPS-3 lever hose crimper handle and which EC ferrule sizes correspond to each range?

The UPS-3 lever hose crimper handles two hose diameter ranges with corresponding EC ferrule internal diameters: - DN 3â8 hoses â EC ferrules with internal diameters 8â17 mm - DN 10â16 hoses â EC ferrules with internal diameters 18â28 mm (Note: an additional base with index EC-100250 is available for purchase.)

Does the UPS-3 lever hose crimper include additional jaw sets or accessories like the EC-100250 base for extended crimping ranges?

Yes. The UPS-3 lever hose crimper comes standard with two sets of jaws (8 crimping segments each) covering DN 3â8 (EC ferrules Ã 8â17 mm) and DN 10â16 (EC ferrules Ã 18â28 mm). Additionally, an EC-100250 base can be purchased separately to extend crimping capabilities.

Can the UPS-3 lever hose crimper be used with EC-type ferrules outside the standard DN 3â16 ranges?

Yes. with limitations. The UPS-3 lever hose crimper is supplied with two sets of jaws that cover DN 3â8 (EC ferrule I.D. 8â17 mm) and DN 10â16 (EC ferrule I.D. 18â28 mm). Within those stated ranges it will crimp EC-type ferrules correctly. To work outside the standard DN 3â16 ranges you must fit compatible additional tooling: the press can accept an optional base with index EC-100250, which extends the machineâs capability when used with appropriate crimping segments. You cannot reliably crimp EC ferrules outside the specified diameters without obtaining the correct additional tooling (EC-100250 and matching segment sets) sized for the larger or smaller ferrules.

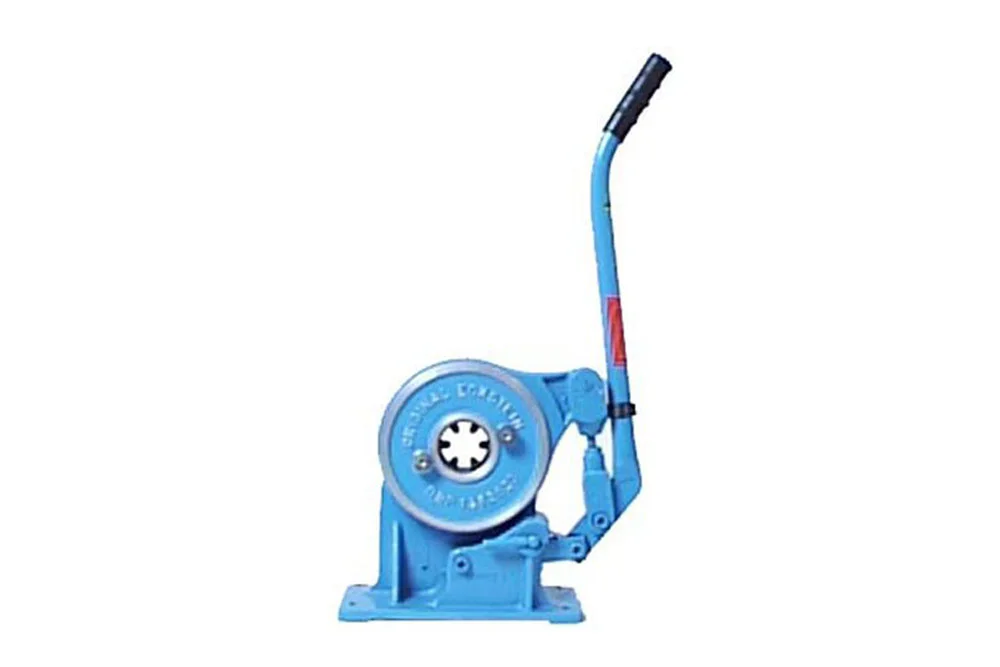

UPS-3 lever hose crimper

Additional information

The UPS crimping press is designed for crimping textile-reinforced hoses with EC-type ferrules using a manual lever. It is standardly equipped with two sets (of 8 crimping segments each) of jaws. The working range for the internal diameter of the crimped hoses for the UPS-3 press: DN 3 ÷ 8 (range of internal diameters of EC ferrules: 8 ÷ 17 mm), DN 10 ÷ 16 (range of internal diameters of EC ferrules: 18 ÷ 28 mm). An additional base with index EC-100250 can be purchased for the press.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EC-UPS-3	UPS 3 type clamping press (8-jaw clamp)	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The UPS crimping press is designed for crimping textile-reinforced hoses with EC-type ferrules using a manual lever. It is standardly equipped with two sets (of 8 crimping segments each) of jaws. The working range for the internal diameter of the crimped hoses for the UPS-3 press: DN 3 ÷ 8 (range of internal diameters of EC ferrules: 8 ÷ 17 mm), DN 10 ÷ 16 (range of internal diameters of EC ferrules: 18 ÷ 28 mm). An additional base with index EC-100250 can be purchased for the press.
