Is the MAV straight manometer fitting, stainless steel, compatible with BSP threaded pressure gauges and a 24Â° DIN 2353 cone connection?

Yes. The MAV straight manometer fitting, stainless steel Format described is compatible with BSP threaded pressure gauges and a 24Â° DIN 2353 cone connection. The fitting features an internal cylindrical BSP thread with a sealing ring, which matches BSP-threaded gauges, and a 24Â° DIN 2353 socket with external metric thread for the DIN 2353 cone connection. Constructed from AISI 316 stainless steel and offered in L (light) and S (heavy) series, it is designed specifically to join those two connection types.

Does the MAV straight manometer fitting, stainless steel, accept both light (L) and heavy (S) series pressure gauge installations?

Yes. The MAV straight manometer fitting, stainless steel accepts both light (L) and heavy (S) series pressure gauge installations. The fitting is offered in two versions-L (light series) and S (heavy series)-and features an internal cylindrical BSP thread with sealing ring plus a 24Â° DIN 2353 socket with external metric thread, made of AISI 316 steel.

Can the MAV straight manometer fitting, stainless steel, be used with pressure gauges requiring a sealing ring and BSP internal thread?

Yes. The MAV straight manometer fitting, stainless steel, described as DIN 2353 straight pressure gauge fitting, type MAV-B, has an internal cylindrical BSP thread designed to accept a sealing ring and a 24Â° DIN 2353 socket with external metric thread. That means it is compatible with pressure gauges that require a sealing ring and a BSP internal thread. The fittingâs AISI 316 stainless steel construction and availability in light (L) and heavy (S) series ensure appropriate strength and corrosion resistance for typical gauge connections.

Fitting straight pressure-gauge MAV, stainless steel

Additional information

Material	SS – stainless steel

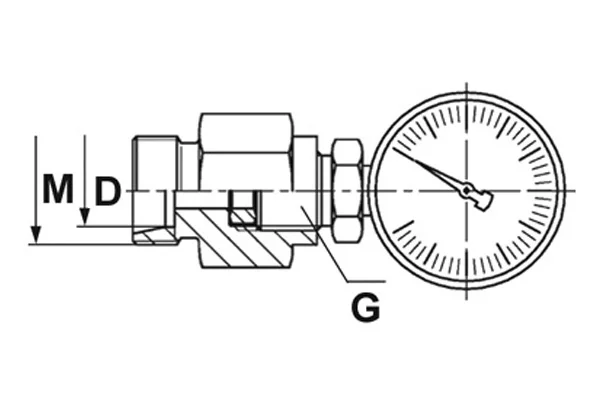

Fitting DIN 2353 straight pressure-gauge, type MAV-B: parallel BSP female thread with a sealing ring and 24° DIN 2353 socket with metric male thread. Available as: L (series light), S (series heavy). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MAV-06L-B-04-SS	Fitting DIN 2353 MAV 6L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-MAV-06S-B-08-SS	Fitting DIN 2353 MAV 6S 1/2" BSP, AISI 316	-	630	In stock	Enquiry
HD-MAV-08L-B-04-SS	Fitting DIN 2353 MAV 8L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-MAV-08S-B-08-SS	Fitting DIN 2353 MAV 8S 1/2" BSP, AISI 316	-	630	In stock	Enquiry
HD-MAV-10L-B-04-SS	Fitting DIN 2353 MAV 10L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-MAV-10S-B-08-SS	Fitting DIN 2353 MAV 10S 1/2" BSP, AISI 316	-	630	In stock	Enquiry
HD-MAV-12L-B-04-SS	Fitting DIN 2353 MAV 12L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-MAV-12S-B-08-SS	Fitting DIN 2353 MAV 12S 1/2" BSP, AISI 316	-	630	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight pressure-gauge, type MAV-B: parallel BSP female thread with a sealing ring and 24° DIN 2353 socket with metric male thread. Available as: L (series light), S (series heavy). Material: AISI 316.
