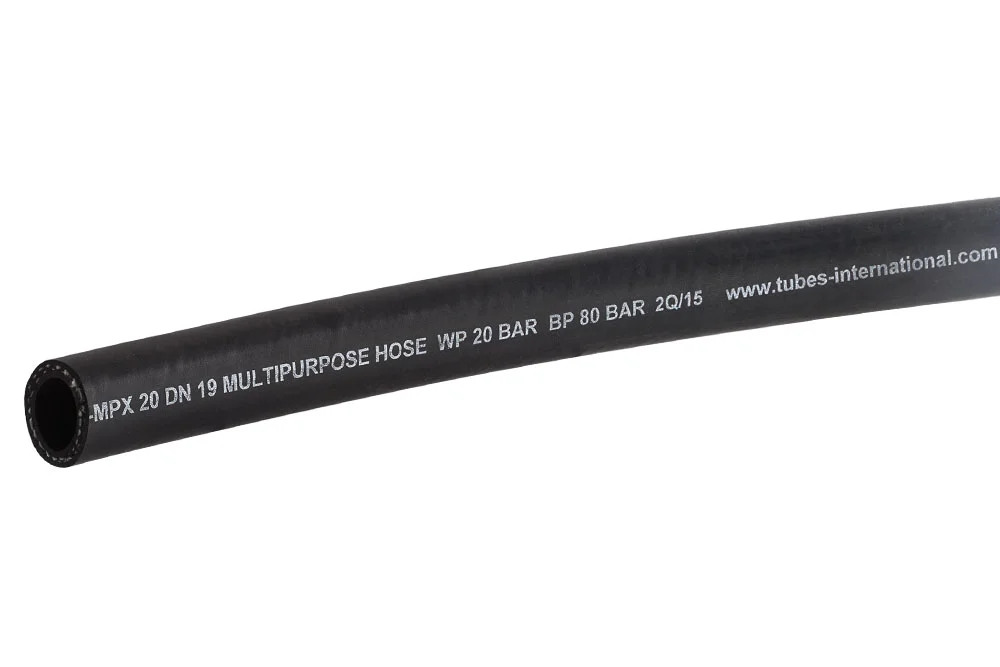

MPX 20 rubber hose
Universal, strong, and highly flexible rubber suction hose, designed for air, water, and light chemicals. It can be used for dispersive water-based epoxy and polyurethane paints. Not suitable for oils, fuels, aromatic hydrocarbons, cellulose paints, chloroprene, and others containing aromatic solvents (e.g., toluene, xylene) or gasoline. For chemical applications, we recommend contacting Tubes International. Inner and outer layers are antistatic (R<109 Ω/m), outer layer resistant to ozone, aging, and weather conditions. Inner layer: black EPDM rubber. Reinforcement: textile braid. Outer layer: black EPDM rubber. Working pressure: 20 bar. Operating temperature: from -40°C to +100°C (temporarily +120°C).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| SP-MPX20-06 | MPX hose 20 bar 6x13 mm | 6 | 20 | |
| SP-MPX20-08 | MPX hose 20 bar 8x15 mm | 8 | 20 | |
| SP-MPX20-10 | MPX hose 20 bar 10x17 mm | 10 | 20 | |
| SP-MPX20-13 | MPX hose 20 bar 13x21 mm | 12 | 20 | |
| SP-MPX20-16 | MPX hose 20 bar 16x24 mm | 16 | 20 | |
| SP-MPX20-19 | MPX hose 20 bar 19x28 mm | 20 | 20 | |
| SP-MPX20-25 | MPX hose 20 bar 25x35 mm | 25 | 20 | |
| SP-MPX20-32 | MPX hose 20 bar 32x44 mm | 32 | 20 | |
| SP-MPX20-38 | MPX hose 20 bar 38x50 mm | 38 | 20 |
Universal, strong, and highly flexible rubber suction hose, designed for air, water, and light chemicals. It can be used for dispersive water-based epoxy and polyurethane paints. Not suitable for oils, fuels, aromatic hydrocarbons, cellulose paints, chloroprene, and others containing aromatic solvents (e.g., toluene, xylene) or gasoline. For chemical applications, we recommend contacting Tubes International. Inner and outer layers are antistatic (R<109 Ω/m), outer layer resistant to ozone, aging, and weather conditions. Inner layer: black EPDM rubber. Reinforcement: textile braid. Outer layer: black EPDM rubber. Working pressure: 20 bar. Operating temperature: from -40°C to +100°C (temporarily +120°C).
Additional information
| Material | EPDM – ethylene-propylene-diene rubber |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 50 |
| Reinforcement | textile braid |
