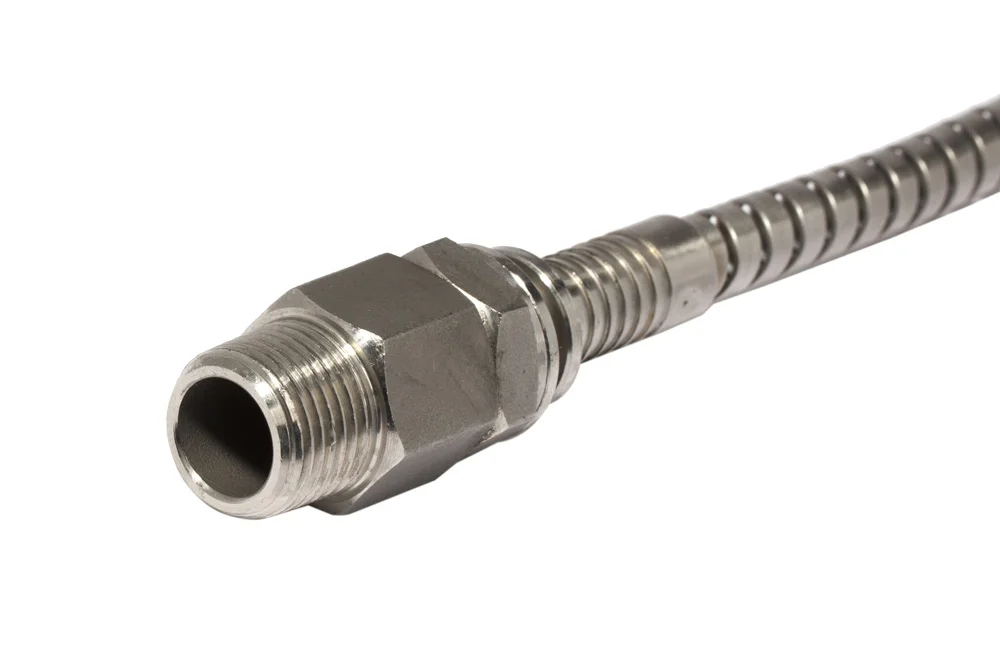

Rotary end with GZ BSPT and anti-bending spring, stainless steel, type AK
Rotary end AK with external conical BSPT thread and anti-kink spring, 200 mm in length. Designed for installation in industrial hoses, particularly in washing hoses at the connection point with the water gun, where bending of the hose and rotation of the gun are required due to operation. The spring provides additional protection for the hose. Material: AISI 316 steel. Working pressure: up to 40 bar.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| AK-SWIFB13-C17-SP | Rotary end GZ 1/2" BSPT, flange 17 mm, spring, for hose 1/2", AISI 316 | 12 | 40 | |
| AK-SWIFB13-C20-SP | Rotary end GZ 1/2" BSPT, flange 20 mm, spring, for hose 1/2", AISI 316 | 12 | 40 | |
| AK-SWIFB16-C21-SP | Rotary end GZ 1/2" BSPT, flange 21 mm, spring, for hose 5/8", AISI 316 | 16 | 40 | |
| AK-SWIFB19-C24-SP | Rotary end GZ 1/2" BSPT, flange 24 mm, spring, for hose 3/4", AISI 316 | 20 | 40 |
Rotary end AK with external conical BSPT thread and anti-kink spring, 200 mm in length. Designed for installation in industrial hoses, particularly in washing hoses at the connection point with the water gun, where bending of the hose and rotation of the gun are required due to operation. The spring provides additional protection for the hose. Material: AISI 316 steel. Working pressure: up to 40 bar.
Additional information
| Material | SS – stainless steel |
|---|
Additional information
| Material | SS – stainless steel |
|---|
