Is the GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S compatible with standard BSP threads and suitable for use with rubber and thermoplastic hoses?

Yes. The GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S is compatible with standard external BSP threads and is suitable for use with rubber and thermoplastic hoses. It is a screwed hydraulic end, type S, with an external BSP thread and a 60Â° sealing cone (AGR), specifically designed to be screwed into rubber and thermoplastic hoses using a screwed sleeve. Made of AISI 316 stainless steel, it offers corrosion resistance appropriate for many hydraulic applications and hose assemblies.

Can GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S be used in saltwater or marine environments without additional corrosion protection?

GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S offers good corrosion resistance due to AISI 316 stainless steel, which contains molybdenum and performs better than 304 in chloride environments. However, 316 is not immune to pitting and crevice corrosion in aggressive marine or stagnant saltwater conditions, especially at elevated temperatures, under mechanical stresses, or where galvanic coupling, deposits or poor drainage occur. For critical or long-term marine use, additional protection (passivation, sacrificial anodes, protective coatings) and proper installation (avoid crevices, use compatible materials) are recommended. For short-term or intermittently wet exposures in well-ventilated, clean seawater conditions, 316 may be acceptable without extra protection, but assess application specifics and consider marine-grade alloys (e.g., 904L, duplex) for higher assurance.

Does GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S require special tools for installation into hoses?

No, the GZ BSP twisted hydraulic end, AISI 316 steel, AGR type S does not require special tools beyond standard hose-assembly equipment. It is designed for screwing into rubber and thermoplastic hoses using a screwed sleeve, with an external BSP thread and a 60Â° sealing cone (AGR). Typical installation requires: - a suitable screwed sleeve sized for the hose and fitting, - a vise or clamp to hold the hose without damage, - standard hand tools (wrenches/spanners) to tighten the external BSP thread to the specified torque, - cutters and deburring tools to prepare the hose end cleanly. Ensure correct sleeve selection, proper hose preparation (cut squarely, remove burrs), and tighten to the manufacturerâs recommended torque to achieve the 60Â° cone seal. For critical applications or corrosive environments, use torque wrenches and follow assembly procedures for AISI 316 components. If manufacturer instructions specify special tools or crimping equipment for a particular sleeve type, follow those instructions; otherwise standard hose-assembly tools are sufficient.

Fitting hydraulic screw-together BSP male, AISI 316, AGR type S

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10

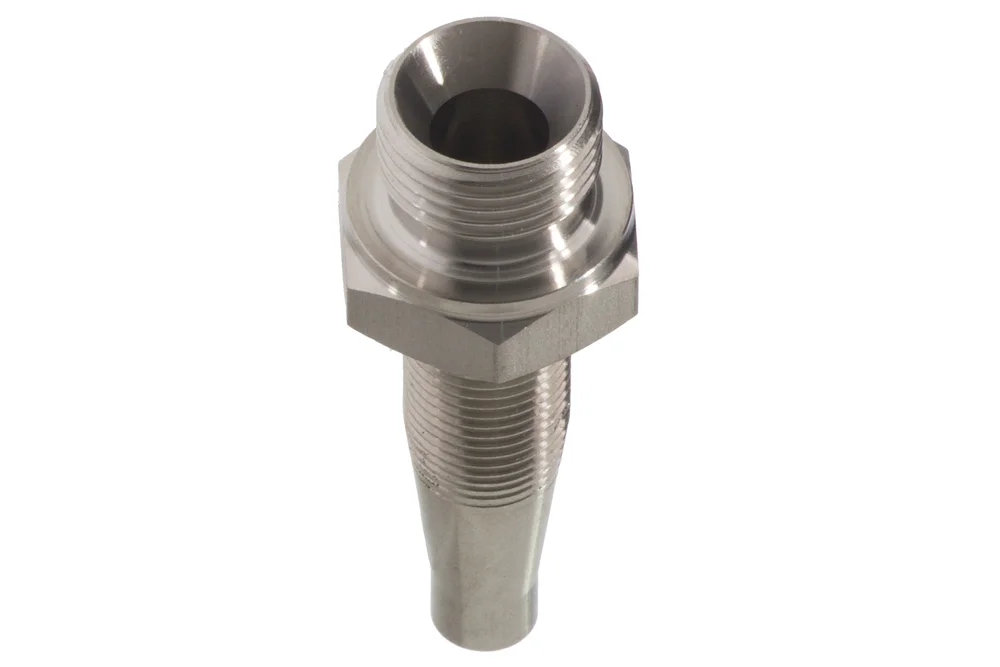

Fitting hydraulic screw-together, type S, with BSP male thread, 60° sealing cone (AGR). intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-SBZ110-08-08-SS	Fitting screw-together 1/2" BSP male, hose 1/2", AISI 316L	12	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting hydraulic screw-together, type S, with BSP male thread, 60° sealing cone (AGR). intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: AISI 316.
