Smooth inside extraction hose P1NPU, P1NPUAS, P1NPUEL

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 15, 152.4, 2, 60 / 120, 60/ 120

Reinforcement

steel spiral coated with PVC

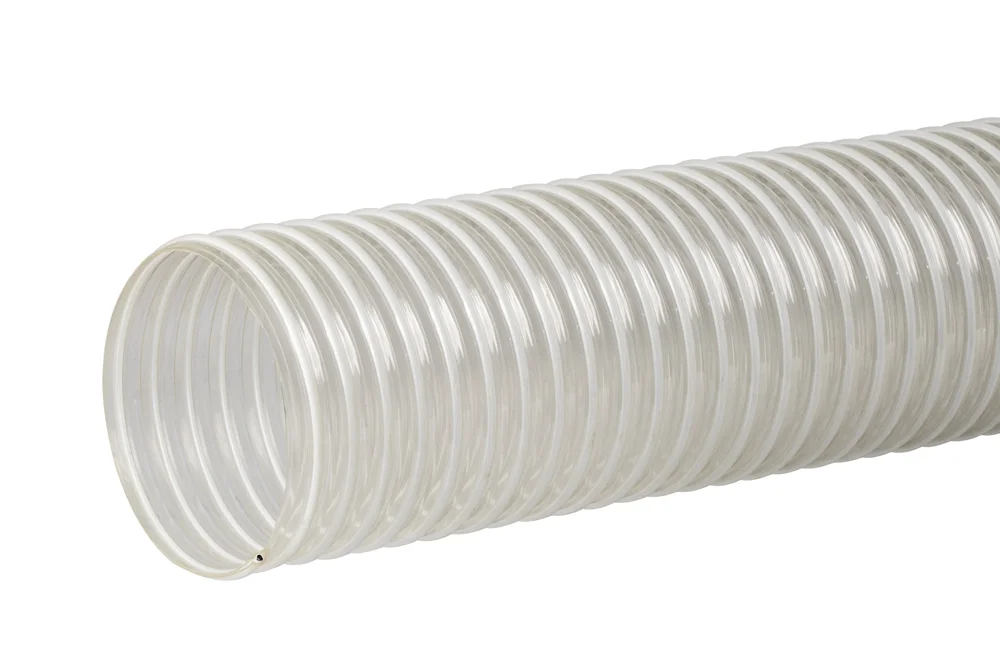

Light, flexible, and smooth interior hose with a white spiral, designed for the removal of dust, chips, fibers, and lightweight bulk materials in the paper, textile, and wood industries. It retains its flexibility and bendability even at low temperatures. The dense steel spiral coated with white PVC ensures high pressure parameters, is resistant to corrosion, and has good adhesion to the hose material. The hose has good resistance to abrasion, oils, and gasoline. Installation on couplings – with bridge clamps (right-handed). Other diameters available upon request. Versions: P1 N PU – standard with high abrasion resistance; P1 N PU AS – antistatic (R ≤ 108 Ω), compliant with TRBS 2153 and for extraction also with TRGS 727, resistant to microbes and hydrolysis; P1 N PU EL – electrically conductive (R ≤ 104 Ω), compliant with ATEX 2014/34/EU, TRBS 2153 and for extraction also with TRGS 727, can be used in explosion hazard zones (after conducting a risk assessment). Hose material: transparent polyester-polyurethane (P1 N PU), transparent polyether-polyurethane (P1 N PU AS), black polyether-polyurethane (P1 N PU EL). Reinforcement: steel wire spiral coated with PVC. Wall thickness measured between the spiral: 0.5 mm and 0.6 mm from diameters of 100 mm. Operating temperature: from -40°C to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-P1NPU-015Hose P 1 N PU 15 mm161.96In stock
Enquiry
SC-P1NPU-020Hose P 1 N PU 20 mm201.85In stock
Enquiry
SC-P1NPU-025Hose P 1 N PU 25 mm251.65In stock
Enquiry
SC-P1NPU-030Hose P 1 N PU 30 mm301.55In stock
Enquiry
SC-P1NPU-035Hose P 1 N PU 35 mm351.48In stock
Enquiry
SC-P1NPU-040Hose P 1 N PU 40 mm401.4In stock
Enquiry
SC-P1NPU-045Hose P 1 N PU 45 mm451.35In stock
Enquiry
SC-P1NPU-050Hose P 1 N PU 50 mm501.3In stock
Enquiry
SC-P1NPU-055Hose P 1 N PU 55 mm551.2In stock
Enquiry
SC-P1NPU-060Hose P 1 N PU 60 mm601.1In stock
Enquiry
SC-P1NPU-065Hose P 1 N PU 65 mm650.95In stock
Enquiry
SC-P1NPU-070Hose P 1 N PU 70 mm700.85In stock
Enquiry
SC-P1NPU-075Hose P 1 N PU 75 mm750.8In stock
Enquiry
SC-P1NPU-080Hose P 1 N PU 80 mm800.75In stock
Enquiry
SC-P1NPU-090Hose P 1 N PU 90 mm900.7In stock
Enquiry
SC-P1NPU-100Hose P 1 N PU 100 mm1000.6In stock
Enquiry
SC-P1NPU-105Hose P 1 N PU 105 mm1100.55In stock
Enquiry
SC-P1NPU-110Hose P 1 N PU 110 mm1100.5In stock
Enquiry
SC-P1NPU-115Hose P 1 N PU 115 mm1200.47In stock
Enquiry
SC-P1NPU-120Hose P 1 N PU 120 mm1200.45In stock
Enquiry
SC-P1NPU-125Hose P 1 N PU 125 mm1250.4In stock
Enquiry
SC-P1NPU-130Hose P 1 N PU 130 mm1300.35In stock
Enquiry
SC-P1NPU-140Hose P 1 N PU 140 mm1400.3In stock
Enquiry
SC-P1NPU-150Hose P 1 N PU 150 mm1500.25In stock
Enquiry
SC-P1NPU-160Hose P 1 N PU 160 mm1600.22In stock
Enquiry
SC-P1NPU-170Hose P 1 N PU 170 mm1600.22In stock
Enquiry
SC-P1NPU-175Hose P 1 N PU 175 mm1800.22In stock
Enquiry
SC-P1NPU-180Hose P 1 N PU 180 mm1800.2In stock
Enquiry
SC-P1NPU-200Hose P 1 N PU 200 mm2000.2In stock
Enquiry
SC-P1NPU-215Hose P 1 N PU 215 mm2200.17In stock
Enquiry
SC-P1NPU-225Hose P 1 N PU 225 mm2250.16In stock
Enquiry
SC-P1NPU-250Hose P 1 N PU 250 mm2500.13In stock
Enquiry
SC-P1NPU-275Hose P 1 N PU 275 mm2750.12In stock
Enquiry
SC-P1NPU-280Hose P 1 N PU 280 mm2750.11In stock
Enquiry
SC-P1NPU-300Hose P 1 N PU 300 mm3000.11In stock
Enquiry
SC-P1NPU-305Hose P 1 N PU 305 mm3000.1In stock
Enquiry
SC-P1NPU-325Hose P 1 N PU 325 mm3250.09In stock
Enquiry
SC-P1NPU-350Hose P 1 N PU 350 mm3500.09In stock
Enquiry
SC-P1NPU-375Hose P 1 N PU 375 mm3500.08In stock
Enquiry
SC-P1NPU-400Hose P 1 N PU 400 mm4000.07In stock
Enquiry
SC-P1NPUEL-025Hose P 1 N PU EL 25 mm251.65In stock
Enquiry
SC-P1NPUEL-030Hose P 1 N PU EL 30 mm301.55In stock
Enquiry
SC-P1NPUEL-040Hose P 1 N PU EL 40 mm401.4In stock
Enquiry
SC-P1NPUEL-050Hose P 1 N PU EL 50 mm501.3In stock
Enquiry
SC-P1NPUEL-060Hose P 1 N PU EL 60 mm601.1In stock
Enquiry
SC-P1NPUEL-070Hose P 1 N PU EL 70 mm700.85In stock
Enquiry
SC-P1NPUEL-075Hose P 1 N PU EL 75 mm750.8In stock
Enquiry
SC-P1NPUEL-080Hose P 1 N PU EL 80 mm800.75In stock
Enquiry
SC-P1NPUEL-100Hose P 1 N PU EL 100 mm1000.6In stock
Enquiry
SC-P1NPUEL-120Hose P 1 N PU EL 120 mm1200.45In stock
Enquiry
SC-P1NPUEL-125Hose P 1 N PU EL 125 mm1250.4In stock
Enquiry
SC-P1NPUEL-150Hose P 1 N PU EL 150 mm1500.25In stock
Enquiry
SC-P1NPUEL-160Hose P 1 N PU EL 160 mm1600.22In stock
Enquiry
SC-P1NPUEL-175Hose P 1 N PU EL 175 mm1800.22In stock
Enquiry
SC-P1NPUEL-200Hose P 1 N PU EL 200 mm2000.2In stock
Enquiry
SC-P1NPUEL-225Hose P 1 N PU EL 225 mm2250.16In stock
Enquiry
SC-P1NPUEL-250Hose P 1 N PU EL 250 mm2500.13In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light, flexible, and smooth interior hose with a white spiral, designed for the removal of dust, chips, fibers, and lightweight bulk materials in the paper, textile, and wood industries. It retains its flexibility and bendability even at low temperatures. The dense steel spiral coated with white PVC ensures high pressure parameters, is resistant to corrosion, and has good adhesion to the hose material. The hose has good resistance to abrasion, oils, and gasoline. Installation on couplings – with bridge clamps (right-handed). Other diameters available upon request. Versions: P1 N PU – standard with high abrasion resistance; P1 N PU AS – antistatic (R ≤ 108 Ω), compliant with TRBS 2153 and for extraction also with TRGS 727, resistant to microbes and hydrolysis; P1 N PU EL – electrically conductive (R ≤ 104 Ω), compliant with ATEX 2014/34/EU, TRBS 2153 and for extraction also with TRGS 727, can be used in explosion hazard zones (after conducting a risk assessment). Hose material: transparent polyester-polyurethane (P1 N PU), transparent polyether-polyurethane (P1 N PU AS), black polyether-polyurethane (P1 N PU EL). Reinforcement: steel wire spiral coated with PVC. Wall thickness measured between the spiral: 0.5 mm and 0.6 mm from diameters of 100 mm. Operating temperature: from -40°C to +100°C.

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 15, 152.4, 2, 60 / 120, 60/ 120

Reinforcement

steel spiral coated with PVC
