Is the JIC straight connection with BSP socket in carbon steel, type GE-BE compatible with hydraulic systems using rectangular cross-section elastomer seals and external BSP threads?

Yes. The JIC straight connection with BSP socket in carbon steel, type GE-BE (Straight JIC 37Â° fitting with external BSP thread, rectangular cross-section elastomer seal, carbon steel, galvanized) is compatible with hydraulic systems that use rectangular crossâsection elastomer seals and external BSP threads. The GE-BE design uses a JIC 37Â° sealing face combined with an external BSP thread sized and finished to accept a mating BSP female port that contains the rectangular elastomer seal. Key compatibility points: - Seal type: The fitting is specified for a rectangular crossâsection elastomer seal, so it matches systems using that seal form. - Threading: It provides external BSP threads to engage with internal BSP ports. - Materials: Carbon steel, galvanized . suitable for typical hydraulic service; verify corrosion resistance and pressure rating for your application. - Sealing principle: JIC 37Â° face plus elastomer backup requires the mating port to be designed for the rectangular seal; ensure correct groove dimensions and seal material compatibility (fluid, temperature). Check pressure ratings, exact thread sizes, groove geometry and elastomer material compatibility for your system before installation.

Does JIC straight connection with BSP socket in carbon steel, type GE-BE use rectangular elastomer seals with external BSP threads?

Yes. The JIC straight connection with BSP socket in carbon steel, type GE-BE uses a rectangular cross-section elastomer seal and has external BSP threads, per the description "Straight JIC 37Â° fitting with external BSP thread (rectangular cross-section elastomer seal). Material: carbon steel, galvanized."

Can JIC straight connection with BSP socket in carbon steel, type GE-BE accept rectangular elastomer seals on external BSP threads?

Yes. a JIC straight connection with BSP socket in carbon steel, type GE-BE (Straight JIC 37Â° fitting with external BSP thread (rectangular cross-section elastomer seal). Material: carbon steel, galvanized) can accept a rectangular elastomer seal on the external BSP threads, provided the mating BSP socket is designed for a rectangular (ISO 11926/ISO 1179-style) elastomer seal and dimensions/tolerances match. Key conditions: - Seal type compatibility: The external BSP thread on the GE-BE must be the variant intended to work with a rectangular crossâsection elastomer seal (not a metal-to-metal JIC seat). - Correct sealing face/profile: The mating BSP socket must include the appropriate rectangular groove/face to compress the elastomer seal against the external thread shoulder. - Dimensional/tolerance match: Thread size, pitch, shoulder location and groove dimensions must conform to the standard for BSP thread with rectangular elastomer sealing to ensure proper compression and leak tightness. - Material and galvanization: Carbon steel, galvanized construction is compatible with elastomer seals; select seal material (NBR, FKM, EPDM, etc.) compatible with fluid, temperature and galvanic considerations. - Pressure/temperature ratings: Confirm the seal material and assembly meet system pressure and temperature requirements; elastomer seals have lower limits than metal seats. - Assembly practice: Ensure correct torque and avoid damage to the elastomer during installation. If any of the above conditions are not met (e.g., the external thread/profile is the JIC 37Â° metal-seating type rather than the BSP rectangular-seal variant), the rectangular elastomer seal will not function correctly. Recommended: verify part variant/specification or consult manufacturer drawing to confirm the GE-BE external BSP thread is the rectangular-elastomer-seal version before assembly.

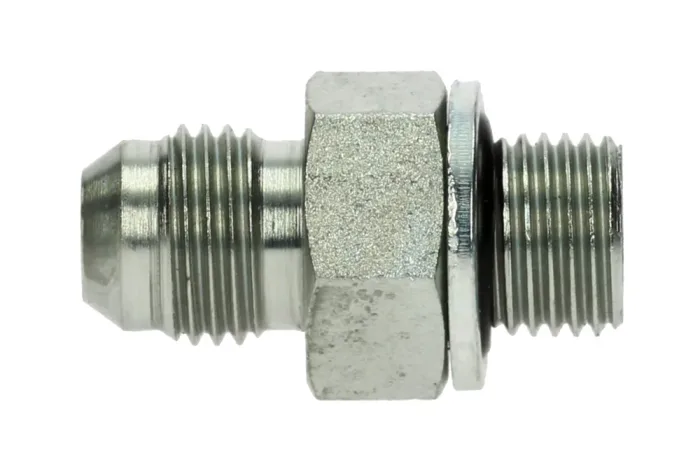

Fitting straight JIC with BSP male of carbon steel, type GE-BE

Additional information

Material	CS – steel (cast iron)
Standard length [m]	15

Fitting straight JIC 37° with BSP male thread (elastomer gasket with a rectangular cross-section). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-GE-07-BE-02	Fitting male JIC 7/16"-20 / 1/8" BSP male	-	350	In stock	Enquiry
HJ-GE-07-BE-04	Fitting male JIC 7/16"-20 / 1/4" BSP male	-	350	In stock	Enquiry
HJ-GE-07-BE-06	Fitting male JIC 7/16"-20 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-07-BE-08	Fitting male JIC 7/16"-20 / 1/2" BSP male	-	350	In stock	Enquiry
HJ-GE-08-BE-02	Fitting male JIC 1/2"-20 / 1/8" BSP male	-	350	In stock	Enquiry
HJ-GE-08-BE-04	Fitting male JIC 1/2"-20 / 1/4" BSP male	-	350	In stock	Enquiry
HJ-GE-08-BE-06	Fitting male JIC 1/2"-20 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-09-BE-02	Fitting male JIC 9/16"-18 / 1/8" BSP male	-	350	In stock	Enquiry
HJ-GE-09-BE-04	Fitting male JIC 9/16"-18 / 1/4" BSP male	-	350	In stock	Enquiry
HJ-GE-09-BE-06	Fitting male JIC 9/16"-18 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-09-BE-08	Fitting male JIC 9/16"-18 / 1/2" BSP male	-	350	In stock	Enquiry
HJ-GE-12-BE-04	Fitting male JIC 3/4"-16 / 1/4" BSP male	-	350	In stock	Enquiry
HJ-GE-12-BE-06	Fitting male JIC 3/4"-16 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-12-BE-08	Fitting male JIC 3/4"-16 / 1/2" BSP male	-	350	In stock	Enquiry
HJ-GE-12-BE-12	Fitting male JIC 3/4"-16 / 3/4" BSP male	-	350	In stock	Enquiry
HJ-GE-14-BE-06	Fitting male JIC 7/8"-14 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-14-BE-08	Fitting male JIC 7/8"-14 / 1/2" BSP male	-	350	In stock	Enquiry
HJ-GE-14-BE-12	Fitting male JIC 7/8"-14 / 3/4" BSP male	-	350	In stock	Enquiry
HJ-GE-17-BE-06	Fitting male JIC 1.1/16"-12 / 3/8" BSP male	-	350	In stock	Enquiry
HJ-GE-17-BE-08	Fitting male JIC 1.1/16"-12 / 1/2" BSP male	-	350	In stock	Enquiry
HJ-GE-17-BE-12	Fitting male JIC 1.1/16"-12 / 3/4" BSP male	-	350	In stock	Enquiry
HJ-GE-17-BE-16	Fitting male JIC 1.1/16"-12 / 1" BSP male	-	290	In stock	Enquiry
HJ-GE-21-BE-12	Fitting male JIC 1.5/16"-12 / 3/4" BSP male	-	290	In stock	Enquiry
HJ-GE-21-BE-16	Fitting male JIC 1.5/16"-12 / 1" BSP male	-	290	In stock	Enquiry
HJ-GE-21-BE-20	Fitting male JIC 1.5/16"-12 / 1.1/4" BSP male	-	290	In stock	Enquiry
HJ-GE-26-BE-16	Fitting male JIC 1.5/8"-12 / 1" BSP male	-	240	In stock	Enquiry
HJ-GE-26-BE-20	Fitting male JIC 1.5/8"-12 / 1.1/4" BSP male	-	240	In stock	Enquiry
HJ-GE-26-BE-24	Fitting male JIC 1.5/8"-12 / 1.1/2" BSP male	-	240	In stock	Enquiry
HJ-GE-30-BE-20	Fitting male JIC 1.7/8"-12 / 1.1/4" BSP male	-	240	In stock	Enquiry
HJ-GE-30-BE-24	Fitting male JIC 1.7/8"-12 / 1.1/2" BSP male	-	240	In stock	Enquiry
