Can JIC straight fitting with carbon steel NPT socket, type GE-NT, be safely sealed on the thread with Teflon tape or should I use an anaerobic sealant?

You can safely use either PTFE (Teflon) tape or an anaerobic thread sealant on a JIC straight fitting with carbon steel NPT socket, type GE-NT, but choose based on application specifics: - PTFE tape: suitable for many hydraulic and low-to-medium pressure applications. Use proper technique (wrap 3â5 turns clockwise looking at the male thread, avoid tape on the first thread to prevent contamination of the fitting seat). PTFE is clean, easy to apply and non-hardening, but it can extrude under very high pressure or vibration and offers no structural bonding. - Anaerobic sealant: provides a more secure, vibration-resistant, leak-proof seal and fills minor thread imperfections. Preferred for high-pressure systems, dynamic/vibrating installations, or when a hard seal is needed. Ensure compatibility with galvanization and system fluids (pick a product rated for carbon steel and hydraulic fluids). Allow proper cure time and follow manufacturer torque recommendations. Important note on JIC geometry: The JIC straight fitting seal is primarily at the 37Â° flare face; the NPT thread is a pressure-containing/installation thread and is commonly sealed on the threads. Do not rely on PTFE or sealant to replace correct flare seating.ensure the JIC flare is properly assembled and torqued. Recommendation: For routine hydraulic uses where reassembly may be needed, PTFE tape is acceptable. For high-pressure, vibration-prone, or critical systems, use an appropriate anaerobic sealant compatible with carbon steel and hydraulic fluid.

Is JIC straight fitting with carbon steel NPT socket, type GE-NT, safe to seal on threads using Teflon tape or anaerobic sealant?

Yes. The JIC straight fitting with carbon steel NPT socket, type GE-NT is designed to seal on the NPT threads, so using PTFE (Teflon) tape or an anaerobic thread sealant is acceptable for achieving a leak-tight joint. Ensure you apply tape or sealant correctly (wrap tape clockwise from the second thread, 2â3 wraps; use an appropriate anaerobic product compatible with steel and hydraulic fluids), avoid overfilling the fitting bore, and tighten to the manufacturerâs recommended torque. Inspect for galvanization damage and avoid combining thread sealant with thread dope intended for pipe threads that may contaminate system ports.

Can JIC straight fitting with carbon steel NPT socket, type GE-NT, use PTFE tape or anaerobic sealant on external NPT threads?

Yes. JIC straight fitting with carbon steel NPT socket, type GE-NT can use PTFE (Teflon) tape or an anaerobic thread sealant on the external NPT threads. Both sealing methods are acceptable for pipe-threaded connections where the seal is made on the threads (as indicated in the product description). Choose the sealing method and application technique based on these practical points: - PTFE tape: Use a good-quality, plumber-grade PTFE tape suitable for hydraulic/fluid systems. Wrap 3â5 turns clockwise (looking at the male thread) to avoid unwrapping during assembly. Keep tape away from the first thread to prevent contamination of the sealing face and system. PTFE provides reliable sealing, is compatible with many fluids, and allows disassembly. - Anaerobic sealant: Use an anaerobic pipe thread sealant rated for carbon steel and compatible with the system fluid and temperature. Apply an even, appropriate bead on the male NPT threads, avoiding excess that could enter the fluid path. Anaerobic sealants give strong, vibration-resistant seals and are suitable when leak-tight, semi-permanent joints are desired. - Installation torque and cleanliness: Ensure threads are clean, undamaged, and properly engaged. Tighten to recommended torque for the size and material to avoid galling or thread damage; over-tightening can deform sealing surfaces or cause cracks in plated finishes. Follow manufacturer torque or assembly guidance if available. - Galvanized surface: The fitting is carbon steel, galvanized. Some sealants bond differently to plated surfacesâverify chemical compatibility and adhesion with galvanized steel. PTFE tape is generally unaffected by galvanizing. - Reusability and maintenance: PTFE tape allows easier disassembly and re-use; anaerobic sealants often require heat or mechanical methods to break the bond and may be more permanent. In summary, both PTFE tape and properly specified anaerobic thread sealants can be used on the external NPT threads of JIC straight fitting with carbon steel NPT socket, type GE-NTâselect the method based on service conditions, compatibility, and whether you want the joint to be removable.

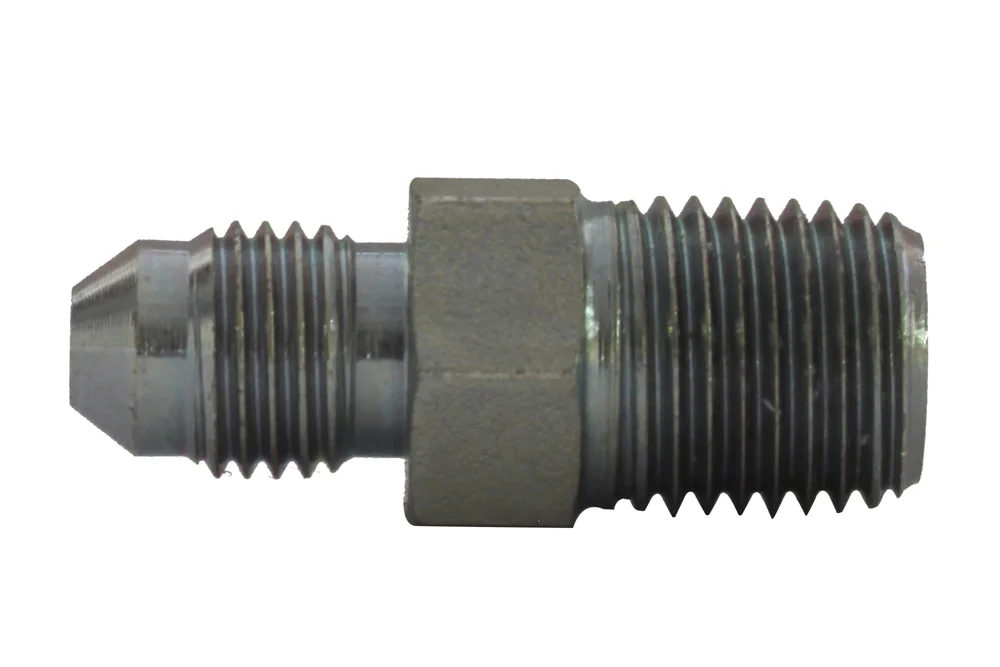

JIC straight fitting with carbon steel NPT socket, type GE-NT

Additional information

Material	CS – steel (cast iron)

Straight JIC 37° fitting with external NPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-GE-07-NT-02	GZ JIC 7/16"-20 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-GE-07-NT-04	GZ JIC 7/16"-20 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-GE-07-NT-06	GZ JIC 7/16"-20 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-GE-07-NT-08	GZ JIC 7/16"-20 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-GE-08-NT-02	GZ JIC 1/2"-20 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-GE-08-NT-04	GZ JIC 1/2"-20 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-GE-09-NT-02	GZ JIC 9/16"-18 / GZ NPT 1/8" fitting	-	350	In stock	Enquiry
HJ-GE-09-NT-04	GZ JIC 9/16"-18 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-GE-09-NT-06	GZ JIC 9/16"-18 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-GE-09-NT-08	GZ JIC 9/16"-18 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-GE-12-NT-04	GZ JIC 3/4"-16 / GZ NPT 1/4" fitting	-	350	In stock	Enquiry
HJ-GE-12-NT-06	GZ JIC 3/4"-16 fitting / GZ NPT 3/8"	-	350	In stock	Enquiry
HJ-GE-12-NT-08	GZ JIC 3/4"-16 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-GE-12-NT-12	GZ JIC 3/4"-16 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-GE-14-NT-06	GZ JIC 7/8"-14 / GZ NPT 3/8" fitting	-	350	In stock	Enquiry
HJ-GE-14-NT-08	GZ JIC 7/8"-14 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-GE-14-NT-12	GZ JIC 7/8"-14 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-GE-17-NT-08	GZ JIC 1.1/16"-12 / GZ NPT 1/2" fitting	-	350	In stock	Enquiry
HJ-GE-17-NT-12	GZ JIC 1.1/16"-12 / GZ NPT 3/4" fitting	-	350	In stock	Enquiry
HJ-GE-17-NT-16	GZ JIC 1.1/16"-12 / GZ NPT 1"	-	290	In stock	Enquiry
HJ-GE-21-NT-12	GZ JIC 1.5/16"-12 / GZ NPT 3/4" fitting	-	290	In stock	Enquiry
HJ-GE-21-NT-16	GZ JIC 1.5/16"-12 / GZ NPT 1"	-	290	In stock	Enquiry
HJ-GE-26-NT-16	GZ JIC 1.5/8"-12 / GZ NPT 1"	-	240	In stock	Enquiry
HJ-GE-26-NT-20	GZ JIC 1.5/8"-12 / GZ NPT 1.1/4" fitting	-	240	In stock	Enquiry
HJ-GE-30-NT-20	GZ JIC 1.7/8"-12 / GZ NPT 1.1/4" fitting	-	240	In stock	Enquiry
HJ-GE-30-NT-24	GZ JIC 1.7/8"-12 / GZ NPT 1.1/2" fitting	-	240	In stock	Enquiry
