Can NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 be crimped onto 4SP/4SH/R13/R15 hoses with TI-N sleeve without cutting the hose rubber?

Yes. The NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 is specifically designed for crimping onto 4SP/4SH/R13/R15 hoses using a TIâN crimping sleeve without cutting the hose rubber. Key points supporting this: - Design: It is a NON SKIVE end fitting, meaning the hose cover is not required to be removed prior to assembly. - Sealing: External metric thread with sealing on a 24Â° cone plus Oâring (CES) ensures reliable sealing when properly assembled. - Compatibility: Intended for crimping in hose types 4SP, 4SH, R13, and R15 using TIâN sleeve as stated. - Series & material: Heavy series carbon steel, galvanized, suitable for highâpressure hydraulic applications and standard crimping procedures. Important: Correct sleeve selection, crimping machine settings, and following the manufacturerâs crimp profile and assembly instructions are essential to achieve a proper, leakâfree crimp without cutting the hose rubber.

Is NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 compatible with TI-N crimp sleeve for 4SP/4SH/R13/R15 hoses without cutting the hose rubber?

Yes. The NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 is designed for crimping in hoses type 4SP, 4SH, R13, and R15 using the TI-N crimping sleeve with installation without cutting the hose rubber. It features sealing on a 24Â° cone plus O-ring (CES) and is compatible with the TI-N sleeve for those hose types.

Can NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 be installed on 4SP/4SH/R13/R15 hoses using TI-N sleeve without skiving?

Yes. NON SKIVE CES straight end, heavy series, carbon steel, type NMW112 Format can be installed on 4SP/4SH/R13/R15 hoses using the TI-N sleeve without skiving. The fitting is specifically described as a Straight NON SKIVE end fitting with external metric thread, with sealing on a 24Â° cone, Oâring (CES), heavy series, intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TIâN crimping sleeve, and installation is stated as without cutting the hose rubber. Material compatibility (carbon steel, galvanized) and the TIâN sleeve design allow crimping over the intact hose cover, providing the required mechanical retention and sealing via the 24Â° cone and Oâring. Ensure correct matching of hose dimensions, TIâN sleeve size, and crimping parameters per manufacturer specifications and perform quality checks (visual, dimensional, and pressure testing) after crimping.

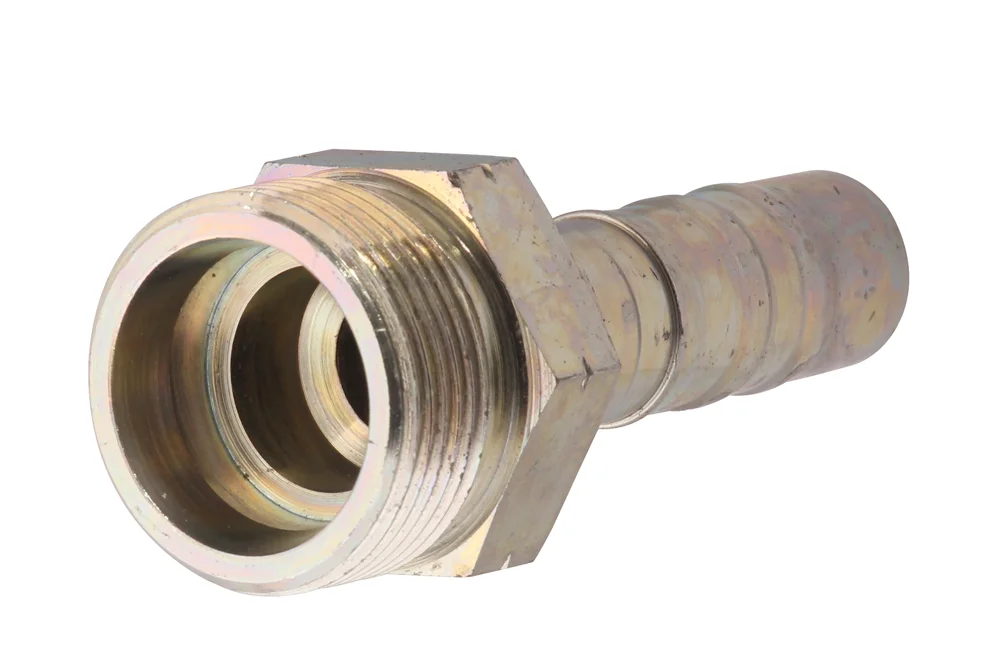

NON SKIVE CES straight end, heavy series, carbon steel, type NMW112

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Straight NON SKIVE end fitting with external metric thread, with sealing on a 24° cone, O-ring (CES), heavy series, intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve. Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NMZ112-30-12	End. NON SKIVE GZ M30x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMZ112-36-12	End. NON SKIVE GZ M36x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMZ112-36-16	End. NON SKIVE GZ M36x2, hose 1"	25	380	In stock	Enquiry
TI-NMZ112-42-16	End. NON SKIVE GZ M42x2, hose 1"	25	380	In stock	Enquiry
TI-NMZ112-42-20	End. NON SKIVE GZ M42x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMZ112-52-20	End. NON SKIVE GZ M52x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMZ112-52-24	End. NON SKIVE GZ M52x2, hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight NON SKIVE end fitting with external metric thread, with sealing on a 24° cone, O-ring (CES), heavy series, intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve. Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
