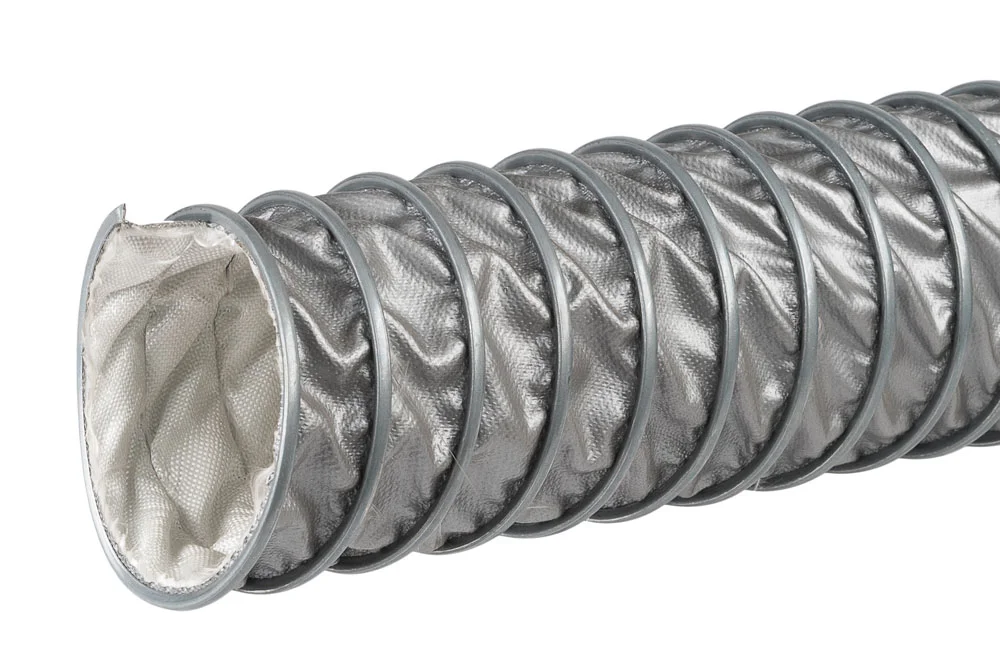

Extraction hose for the transfer of air, fumes and vapors up to 450°C GRIPFLEX 450

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

450

Minimum operating temperature [°C]

-50

Vacuum resistance

yes

Standard length [m]

10, 2, 50, 60 / 120

Reinforcement

external spiral made of galvanized steel wire and sheet metal

Lightweight, highly flexible and bendable, temperature-resistant two-layer suction and discharge hose designed for the removal and transfer of vapors, fumes, and high-temperature air. Flame-retardant, chemically resistant, with fairly good resistance to hot sparks. Used in the construction of furnaces (metal and glass foundries, ceramic and chemical industries), vehicles (exhaust gas discharge systems, engine testing stations, etc.), aerospace and military applications. Characterized by high compressibility – up to 1:6, strong construction, and impact resistance due to the external spiral. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Standard length: from 2 to 10 m – contact Tubes International. Hose material: 2 layers of glass fabric, with the outer layer coated in silicone (gray). Reinforcement: external spiral made of galvanized steel wire and sheet. Operating temperature: from -50°C to +450°C (temporarily up to +500°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TS-GRIP450-050GRIPFLEX hose 450 50 mm500.9In stock
Enquiry
TS-GRIP450-060GRIPFLEX hose 450 60 mm600.78In stock
Enquiry
TS-GRIP450-065GRIPFLEX hose 450 65 mm650.68In stock
Enquiry
TS-GRIP450-070GRIPFLEX hose 450 70 mm700.67In stock
Enquiry
TS-GRIP450-075GRIPFLEX hose 450 75 mm750.62In stock
Enquiry
TS-GRIP450-080GRIPFLEX hose 450 80 mm800.61In stock
Enquiry
TS-GRIP450-090GRIPFLEX hose 450 90 mm900.56In stock
Enquiry
TS-GRIP450-100GRIPFLEX hose 450 100 mm1000.51In stock
Enquiry
TS-GRIP450-110GRIPFLEX hose 450 110 mm1100.48In stock
Enquiry
TS-GRIP450-120GRIPFLEX hose 450 120 mm1200.36In stock
Enquiry
TS-GRIP450-125GRIPFLEX hose 450 125 mm1250.33In stock
Enquiry
TS-GRIP450-130GRIPFLEX hose 450 130 mm1300.28In stock
Enquiry
TS-GRIP450-140GRIPFLEX hose 450 140 mm1400.25In stock
Enquiry
TS-GRIP450-150GRIPFLEX hose 450 150 mm1500.22In stock
Enquiry
TS-GRIP450-160GRIPFLEX hose 450 160 mm1600.21In stock
Enquiry
TS-GRIP450-170GRIPFLEX hose 450 170 mm1600.19In stock
Enquiry
TS-GRIP450-175GRIPFLEX hose 450 175 mm1800.185In stock
Enquiry
TS-GRIP450-178GRIPFLEX hose 450 178 mm1800.17In stock
Enquiry
TS-GRIP450-180GRIPFLEX hose 450 180 mm1800.17In stock
Enquiry
TS-GRIP450-200GRIPFLEX hose 450 200 mm2000.15In stock
Enquiry
TS-GRIP450-215GRIPFLEX hose 450 215 mm2200.13In stock
Enquiry
TS-GRIP450-225GRIPFLEX hose 450 225 mm2250.12In stock
Enquiry
TS-GRIP450-242GRIPFLEX hose 450 242 mm2500.11In stock
Enquiry
TS-GRIP450-250GRIPFLEX hose 450 250 mm2500.1In stock
Enquiry
TS-GRIP450-275GRIPFLEX hose 450 275 mm2750.08In stock
Enquiry
TS-GRIP450-300GRIPFLEX hose 450 300 mm3000.08In stock
Enquiry
TS-GRIP450-315GRIPFLEX hose 450 315 mm3000.06In stock
Enquiry
TS-GRIP450-320GRIPFLEX hose 450 320 mm3250.06In stock
Enquiry
TS-GRIP450-325GRIPFLEX hose 450 325 mm3250.06In stock
Enquiry
TS-GRIP450-350GRIPFLEX hose 450 350 mm3500.05In stock
Enquiry
TS-GRIP450-375GRIPFLEX hose 450 375 mm3500.05In stock
Enquiry
TS-GRIP450-400GRIPFLEX hose 450 400 mm4000.05In stock
Enquiry
TS-GRIP450-450GRIPFLEX hose 450 450 mm4500.04In stock
Enquiry
TS-GRIP450-500GRIPFLEX hose 450 500 mm5000.04In stock
Enquiry
TS-GRIP450-600GRIPFLEX hose 450 600 mm6000.04In stock
Enquiry
TS-GRIP450-700GRIPFLEX hose 450 700 mm7000.03In stock
Enquiry
TS-GRIP450-800GRIPFLEX hose 450 800 mm8000.02In stock
Enquiry
TS-GRIP450-900GRIPFLEX hose 450 900 mm9000.02In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Lightweight, highly flexible and bendable, temperature-resistant two-layer suction and discharge hose designed for the removal and transfer of vapors, fumes, and high-temperature air. Flame-retardant, chemically resistant, with fairly good resistance to hot sparks. Used in the construction of furnaces (metal and glass foundries, ceramic and chemical industries), vehicles (exhaust gas discharge systems, engine testing stations, etc.), aerospace and military applications. Characterized by high compressibility – up to 1:6, strong construction, and impact resistance due to the external spiral. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Standard length: from 2 to 10 m – contact Tubes International. Hose material: 2 layers of glass fabric, with the outer layer coated in silicone (gray). Reinforcement: external spiral made of galvanized steel wire and sheet. Operating temperature: from -50°C to +450°C (temporarily up to +500°C).

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

450

Minimum operating temperature [°C]

-50

Vacuum resistance

yes

Standard length [m]

10, 2, 50, 60 / 120

Reinforcement

external spiral made of galvanized steel wire and sheet metal
