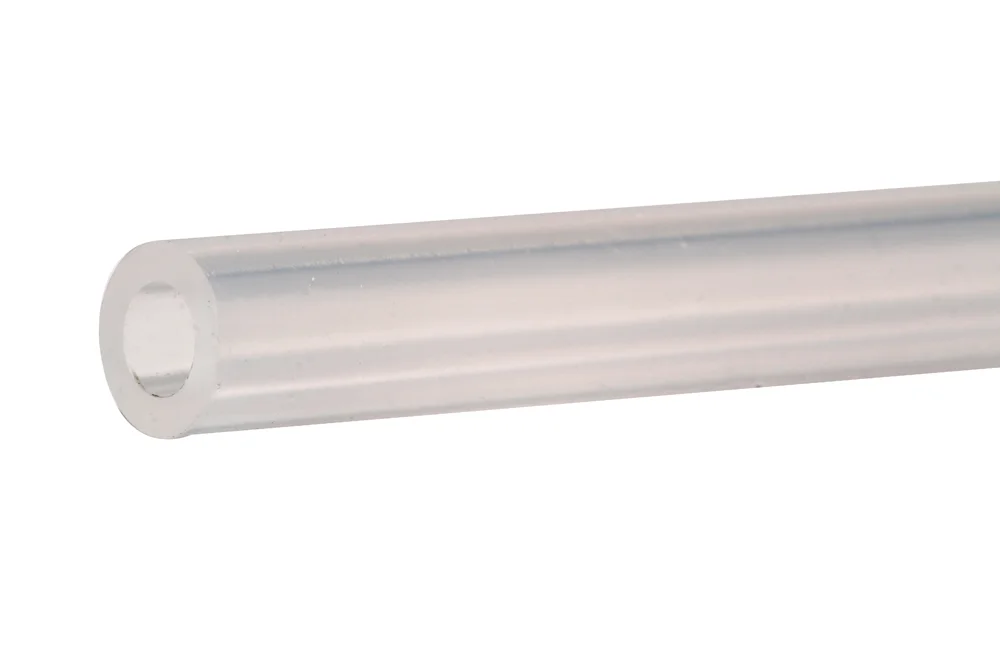

Ultra-smooth silicone hose for pharmaceutical and biotechnology applications TYGON® 3350
Colorless, semi-transparent, flexible hose made of platinum-cured silicone rubber. Used in the pharmaceutical, cosmetic, and biotechnology industries, medical devices, cell culture, sterile filling lines, water for injection (WFI), chemistry and blood analyzers, and liquid chromatography. Can be used in peristaltic pumps – moderate lifespan. Characterized by an exceptionally smooth inner surface that prevents the deposition and adhesion of contaminants inside the hose and the growth of bacteria. This facilitates complete cleaning and sterilization of the hose. The smooth inner layer also reduces flow resistance through the hose. Low extractability, non-toxicity, non-hemolytic, and non-pyrogenic ensure total fluid purity in sensitive applications. Meets hygiene requirements of US FDA 21 CFR 177.2600, NSF-51, 3-A, and USP Class VI as well as ISO 10993 for contact with blood, bodily fluids, and tissues for up to 30 days. Sterilization possible by steam (30 min, 1 bar, 121°C), ethylene oxide, or radiation (up to 2.5 Mrad). Full roll length of the hose is 15 m. Hose available in inch and metric sizes. Working pressure defined relative to burst pressure with a safety factor of 1:5. Material: silicone (platinum). Maximum operating temperature: +204°C. Brittleness temperature: -80°C. Hardness: 50° Shore (A). Density: 1.14 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
VE-T3301-13 | TYGON hose 3350 0.8x2.4 mm | 1 | 1.52 | |
VE-T3302-13 | TYGON hose 3350 1.6x3.2 mm | 2 | 0.97 | |
VE-T3302-23 | TYGON hose 3350 1.6x4.8 mm | 2 | 1.52 | |
VE-T3303-13 | Hose TYGON 3350 2.4x4 mm | 2 | 0.76 | |
VE-T3303-23 | TYGON hose 3350 2.4x5.6 mm | 2 | 1.24 | |
VE-T3304-13 | Hose TYGON 3350 3.2x4.8 mm | 3 | 0.62 | |
VE-T3304-23 | Hose TYGON 3350 3.2x6.4 mm | 3 | 0.97 | |
VE-T3305-13 | Hose TYGON 3350 4x5.6 mm | 4 | 0.48 | |
VE-T3306-13 | TYGON hose 3350 4.8x6.4 mm | 5 | 0.48 | |
VE-T3306-23 | Hose TYGON 3350 4.8x8 mm | 5 | 0.76 | |
VE-T3306-33 | TYGON hose 3350 4.8x9.6 mm | 5 | 0.97 | |
VE-T3306-43 | TYGON hose 3350 4.8x11.2 mm | 5 | 1.24 | |
VE-T3308-13 | TYGON hose 3350 6.4x8 mm | 6 | 0.34 | |
VE-T3308-23 | TYGON hose 3350 6.4x9.6 mm | 6 | 0.62 | |
VE-T3308-33 | Hose TYGON 3350 6.4x11.2 mm | 6 | 0.83 | |
VE-T3308-43 | TYGON hose 3350 6.4x12.8 mm | 6 | 0.97 | |
VE-T330A-053 | TYGON hose 3350 1x2 mm | 1 | 0.62 | |
VE-T330A-103 | TYGON hose 3350 1x3 mm | 1 | 1.52 | |
VE-T330B-103 | Hose TYGON 3350 2x4 mm | 2 | 0.62 | |
VE-T330C-103 | TYGON hose 3350 3x5 mm | 3 | 0.62 | |
VE-T330D-153 | TYGON hose 3350 3x6 mm | 3 | 0.97 | |
VE-T330E-203 | TYGON hose 3350 3x7 mm | 3 | 1.1 | |
VE-T330F-153 | TYGON hose 3350 4x7 mm | 4 | 0.69 | |
VE-T330G-203 | TYGON hose 3350 4x8 mm | 4 | 0.76 | |
VE-T330H-153 | TYGON hose 3350 5x8 mm | 5 | 0.48 | |
VE-T330I-153 | Hose TYGON 3350 6x9 mm | 6 | 0.41 | |
VE-T330J-203 | TYGON hose 3350 6x10 mm | 6 | 0.62 | |
VE-T330K-303 | TYGON hose 3350 6x12 mm | 6 | 0.83 | |
VE-T330L-153 | TYGON hose 3350 7x10 mm | 6 | 0.41 | |
VE-T330M-153 | Hose TYGON 3350 8x11 mm | 8 | 0.48 | |
VE-T330N-203 | Hose TYGON 3350 8x12 mm | 8 | 0.41 | |
VE-T330O-303 | TYGON hose 3350 8x14 mm | 8 | 0.69 | |
VE-T330P-203 | Hose TYGON 3350 10x14 mm | 10 | 0.38 | |
VE-T330Q-203 | TYGON hose 3350 12x16 mm | 12 | 0.34 | |
VE-T330R-303 | Hose TYGON 3350 15x21 mm | 16 | 0.41 | |
VE-T330S-303 | Hose TYGON 3350 18x24 mm | 18 | 0.34 | |
VE-T330T-353 | Hose TYGON 3350 20x27 mm | 20 | 0.28 | |
VE-T3310-23 | Hose TYGON 3350 8x11.2 mm | 8 | 0.48 | |
VE-T3310-33 | Hose TYGON 3350 8x12.8 mm | 8 | 0.69 | |
VE-T3312-23 | Hose TYGON 3350 9.5x12.7 mm | 10 | 0.62 | |
VE-T3312-33 | Hose TYGON 3350 9.5x14.3 mm | 10 | 0.76 | |
VE-T3312-43 | Hose TYGON 3350 9.5x15.9 mm | 10 | 0.83 | |
VE-T3314-23 | Hose TYGON 3350 11.1x14.3 mm | 12 | 0.28 | |
VE-T3314-33 | Hose TYGON 3350 11.1x15.9 mm | 12 | 0.55 | |
VE-T3316-23 | Hose TYGON 3350 12.7x15.9 mm | 12 | 0.34 | |
VE-T3316-33 | Hose TYGON 3350 12.7x17.5 mm | 12 | 0.48 | |
VE-T3316-43 | Hose TYGON 3350 12.7x19.1 mm | 12 | 0.62 | |
VE-T3320-33 | Hose TYGON 3350 15.9x20.7 mm | 16 | 0.41 | |
VE-T3320-43 | Hose TYGON 3350 15.9x22.3 mm | 16 | 0.48 | |
VE-T3324-43 | Hose TYGON 3350 19x25.4 mm | 20 | 0.48 | |
VE-T3332-43 | Hose TYGON 3350 25.4x31.8 mm | 25 | 0.34 | |
VE-T3340-43 | Hose TYGON 3350 31.8x38.2 mm | 32 | 0.34 |
Colorless, semi-transparent, flexible hose made of platinum-cured silicone rubber. Used in the pharmaceutical, cosmetic, and biotechnology industries, medical devices, cell culture, sterile filling lines, water for injection (WFI), chemistry and blood analyzers, and liquid chromatography. Can be used in peristaltic pumps – moderate lifespan. Characterized by an exceptionally smooth inner surface that prevents the deposition and adhesion of contaminants inside the hose and the growth of bacteria. This facilitates complete cleaning and sterilization of the hose. The smooth inner layer also reduces flow resistance through the hose. Low extractability, non-toxicity, non-hemolytic, and non-pyrogenic ensure total fluid purity in sensitive applications. Meets hygiene requirements of US FDA 21 CFR 177.2600, NSF-51, 3-A, and USP Class VI as well as ISO 10993 for contact with blood, bodily fluids, and tissues for up to 30 days. Sterilization possible by steam (30 min, 1 bar, 121°C), ethylene oxide, or radiation (up to 2.5 Mrad). Full roll length of the hose is 15 m. Hose available in inch and metric sizes. Working pressure defined relative to burst pressure with a safety factor of 1:5. Material: silicone (platinum). Maximum operating temperature: +204°C. Brittleness temperature: -80°C. Hardness: 50° Shore (A). Density: 1.14 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
Additional information
Material | VMQ – silicone |
---|---|
Maximum operating temperature [°C] | 204 |
Vacuum resistance | yes |
Standard length [m] | 15, 25, 30 |
Additional information
Material | VMQ – silicone |
---|---|
Maximum operating temperature [°C] | 204 |
Vacuum resistance | yes |
Standard length [m] | 15, 25, 30 |
