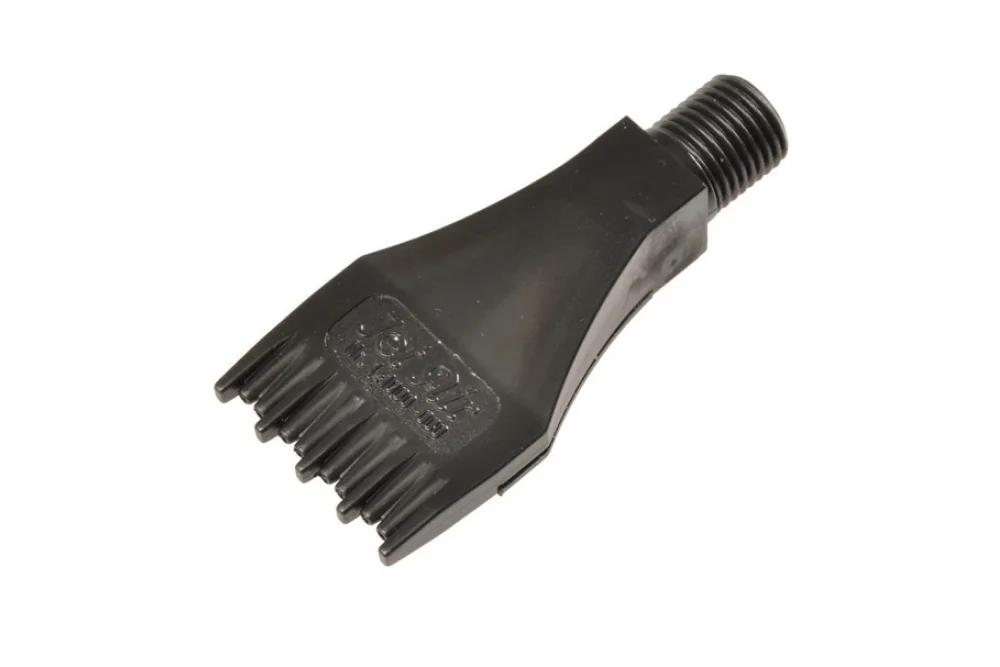

8-channel comb nozzle, black acetal
8-channel comb nozzle, flat jet, finished with a 1/4″ BSP external thread. Designed for blowing off various contaminants from larger surfaces: liquids, fine chips, shavings, etc. Characterized by high blowing force at low noise levels. Ideal for the construction of air knives. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Material: acetal. Working pressure: up to 10 bar. Operating temperature: from -20°C to +60°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-141000-000 | Flat nozzle 8-stream, GZ 1/4" BSP, black acetal | - | 10 |
8-channel comb nozzle, flat jet, finished with a 1/4″ BSP external thread. Designed for blowing off various contaminants from larger surfaces: liquids, fine chips, shavings, etc. Characterized by high blowing force at low noise levels. Ideal for the construction of air knives. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Material: acetal. Working pressure: up to 10 bar. Operating temperature: from -20°C to +60°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
