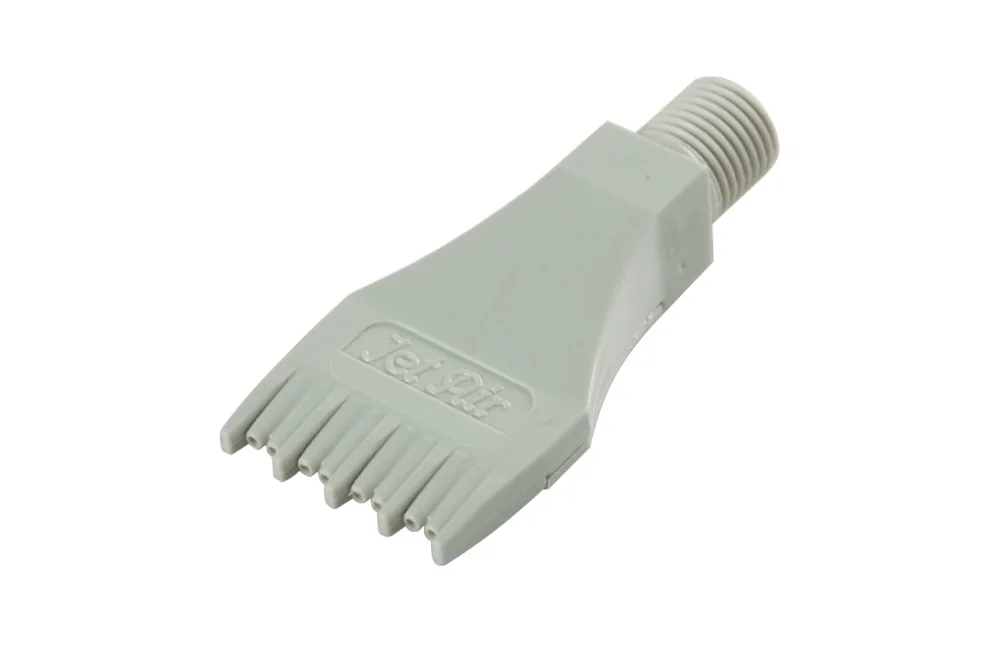

8-channel comb nozzle, high-temperature, gray ULTEM1000 material
8-channel comb nozzle, flat jet, finished with a 1/4″ BSP external thread. Designed for blowing off various contaminants from larger surfaces: liquids, fine chips, shavings, etc. Characterized by high blowing force at low noise levels. Ideal for the construction of air knives. Suitable for harsh conditions, e.g., at very high temperatures. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Material: ULTEM1000. Working pressure: up to 10 bar. Operating temperature: from -20°C to +200°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-141001-000 | Flat nozzle 8-stream, GZ 1/4" BSP, gray ULTEM 1000 | - | 10 |
8-channel comb nozzle, flat jet, finished with a 1/4″ BSP external thread. Designed for blowing off various contaminants from larger surfaces: liquids, fine chips, shavings, etc. Characterized by high blowing force at low noise levels. Ideal for the construction of air knives. Suitable for harsh conditions, e.g., at very high temperatures. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Material: ULTEM1000. Working pressure: up to 10 bar. Operating temperature: from -20°C to +200°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
