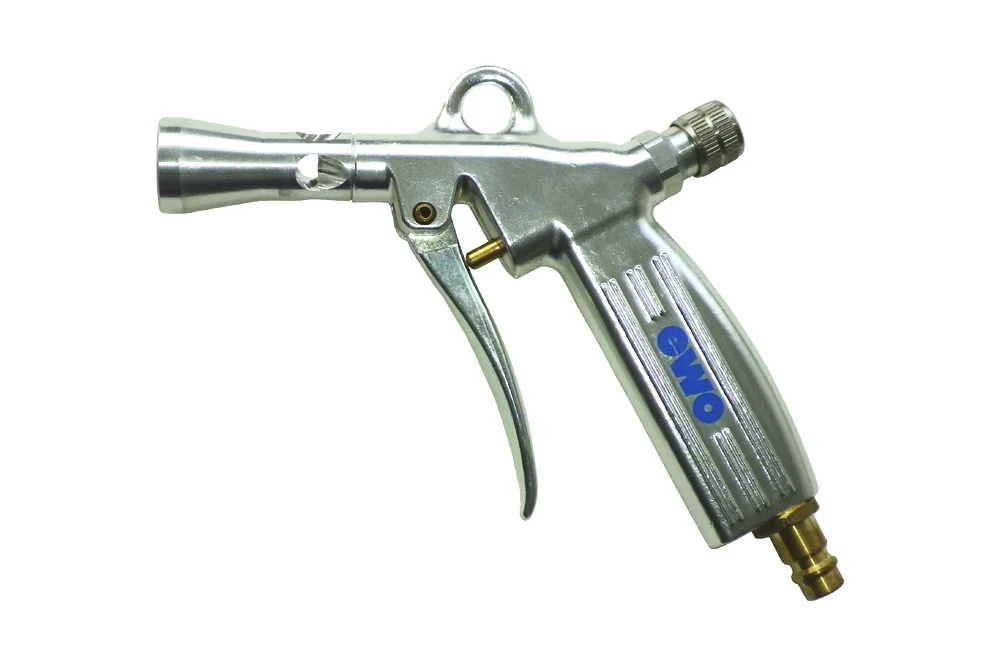

Air gun with FULL-JET nozzle, with regulating valve, aluminum
High-quality aluminum compressed air gun designed for removing all contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by lever pressure. Equipped with a pressure reducing valve for adjusting maximum flow according to application. Made of forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Ideal for use even in harsh working conditions. The gun is equipped with a FULL-JET nozzle with a hole diameter of 2.5 mm, interchangeable, with an external connection thread M12x1.25, which features a significantly wider air stream and greater power at a pressure of 2 bar, compared to a standard nozzle with a hole diameter of 1.5 mm. Other nozzles can be installed instead of the FULL-JET nozzle – see EWO gun accessories. Depending on the connection, the gun is available with a EUROSTANDARD 7.2 plug or a hose end with diameters of 6 mm, 9 mm, and 13 mm. Material: aluminum (forging). Nozzle hole diameter: 2.5 mm. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| EW-269324E | Air gun with d. Full-Jet, end 6 mm (valve) | - | 6 | |
| EW-269344E | Air gun with d. Full-Jet, end 9 mm (valve) | - | 6 | |
| EW-269354E | Air gun with d. Full-Jet, end 13 mm (valve) | - | 6 | |
| EW-269374E | Air gun, Full-Jet nozzle, DN 7.2 plug (valve) | - | 6 |
High-quality aluminum compressed air gun designed for removing all contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by lever pressure. Equipped with a pressure reducing valve for adjusting maximum flow according to application. Made of forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Ideal for use even in harsh working conditions. The gun is equipped with a FULL-JET nozzle with a hole diameter of 2.5 mm, interchangeable, with an external connection thread M12x1.25, which features a significantly wider air stream and greater power at a pressure of 2 bar, compared to a standard nozzle with a hole diameter of 1.5 mm. Other nozzles can be installed instead of the FULL-JET nozzle – see EWO gun accessories. Depending on the connection, the gun is available with a EUROSTANDARD 7.2 plug or a hose end with diameters of 6 mm, 9 mm, and 13 mm. Material: aluminum (forging). Nozzle hole diameter: 2.5 mm. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
