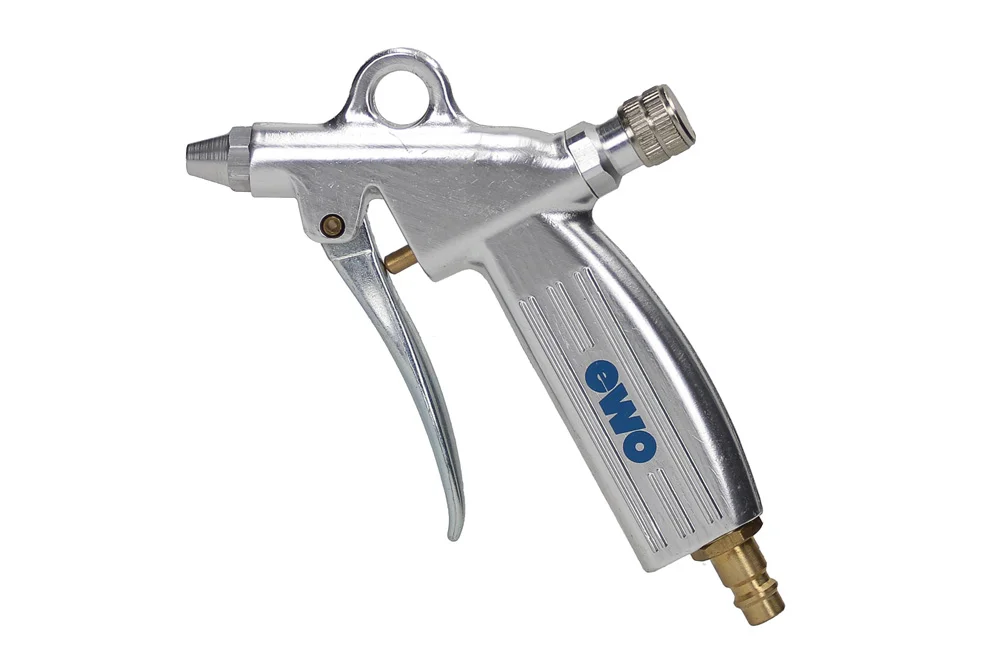

Air gun with standard nozzle, with regulating valve, aluminum
High-quality aluminum compressed air gun designed for removing all contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Equipped with a pressure reducing valve for adjusting maximum flow according to application. Made of forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Can be used with water. Ideal for even the most challenging working conditions. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, interchangeable, with an external connection thread M12x1.25. Instead of the standard nozzle, other nozzles can be installed – see EWO gun accessories. Depending on the connection, we distinguish between a gun finished with a EUROSTANDARD 7.2 plug or a hose end with diameters of 6 mm, 9 mm, and 13 mm. Material: aluminum (forging). Nozzle hole diameter: 1.5 mm. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| EW-26911E | Air gun, standard nozzle, hole diameter 1.5 mm, end 6 mm (valve) | - | 10 | |
| EW-26917E | Air gun, standard nozzle, hole diameter 1.5 mm, end 9 mm (valve) | - | 10 | |
| EW-26918E | Air gun, standard nozzle, hole diameter 1.5 mm, length 13 mm (valve) | - | 10 | |
| EW-26941E | Air gun, standard nozzle, hole diameter 1.5 mm, plug DN 7.2 (valve) | - | 10 |
High-quality aluminum compressed air gun designed for removing all contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Equipped with a pressure reducing valve for adjusting maximum flow according to application. Made of forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Can be used with water. Ideal for even the most challenging working conditions. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, interchangeable, with an external connection thread M12x1.25. Instead of the standard nozzle, other nozzles can be installed – see EWO gun accessories. Depending on the connection, we distinguish between a gun finished with a EUROSTANDARD 7.2 plug or a hose end with diameters of 6 mm, 9 mm, and 13 mm. Material: aluminum (forging). Nozzle hole diameter: 1.5 mm. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
