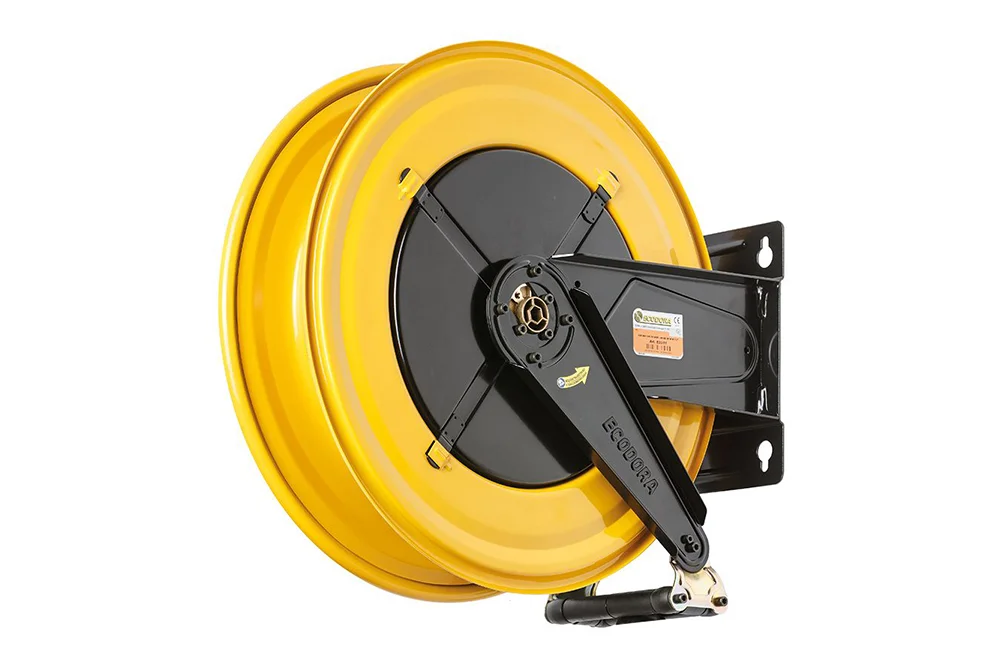

ECODORA E-530 automatic hose reel machine, carbon steel
Automatic drum hose reel for cold and hot water, oil, lubricants, and other media. The retractable spring tested for 25,000 winding and unwinding cycles. Compliant with ATEX directive 94/9 IIB 2GD c T4 T135C X. Includes hose bumper. The drum is not equipped with a hose, which must be ordered separately. Rotating suspension or additional fixed suspension for quick disassembly (e.g., in winter) ordered separately. Advantages: rotating connection made of AISI 304 steel, viton sealing. Drum material: powder-coated carbon steel. Sealing: viton. Operating temperature: up to +130°C (without hose).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| ED-530-15 | E-530 drum for 1" hose / 8 m, carbon steel | 25 | 20 | |
| ED-530-20 | E-530 drum for 1/2" hose / 25 m, carbon steel | 12 | 150 | |
| ED-530-35 | E-530 drum for 3/8" hose / 25 m, carbon steel | 10 | 400 |
Automatic drum hose reel for cold and hot water, oil, lubricants, and other media. The retractable spring tested for 25,000 winding and unwinding cycles. Compliant with ATEX directive 94/9 IIB 2GD c T4 T135C X. Includes hose bumper. The drum is not equipped with a hose, which must be ordered separately. Rotating suspension or additional fixed suspension for quick disassembly (e.g., in winter) ordered separately. Advantages: rotating connection made of AISI 304 steel, viton sealing. Drum material: powder-coated carbon steel. Sealing: viton. Operating temperature: up to +130°C (without hose).
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Maximum operating temperature [°C] | 130 |
