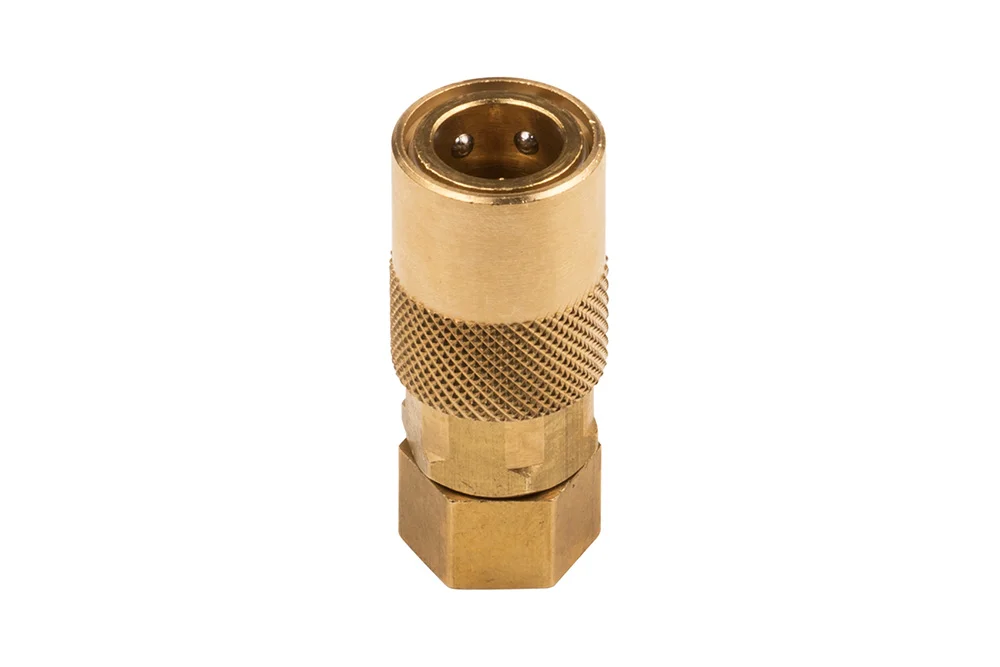

Socket DN 9 quick coupling with female thread, TST 9 series, brass
DN 9 quick coupling socket with internal BSP and NPT thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 15 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| FW-HK9-DG13 | Socket DN 9 with 1/4" BSP female thread, without valve | - | 15 | |
| FW-HK9-DG17 | Socket DN 9 with 3/8" BSP female thread, without valve | - | 15 | |
| FW-HK9-DG21 | Socket DN 9 with 1/2" BSP female thread, without valve | - | 15 | |
| FW-HK9-NG13 | Socket DN 9 with 1/4" NPT female thread, without valve | - | 15 | |
| FW-HK9-NG17 | Socket DN 9 with 3/8" NPT female thread, without valve | - | 15 | |
| FW-HVK9-DG13 | Socket DN 9 with 1/4" BSP female thread, with valve | - | 15 | |
| FW-HVK9-DG17 | Socket DN 9 with 3/8" BSP female thread, with valve | - | 15 | |
| FW-HVK9-DG21 | Socket DN 9 with 1/2" BSP female thread, with valve | - | 15 | |
| FW-HVK9-NG13 | Socket DN 9 with 1/4" NPT female thread, with valve | - | 15 | |
| FW-HVK9-NG17 | Socket DN 9 with 3/8" NPT female thread, with valve | - | 15 |
DN 9 quick coupling socket with internal BSP and NPT thread, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 15 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
Additional information
| Material | B – brass (bronze) |
|---|
Additional information
| Material | B – brass (bronze) |
|---|
