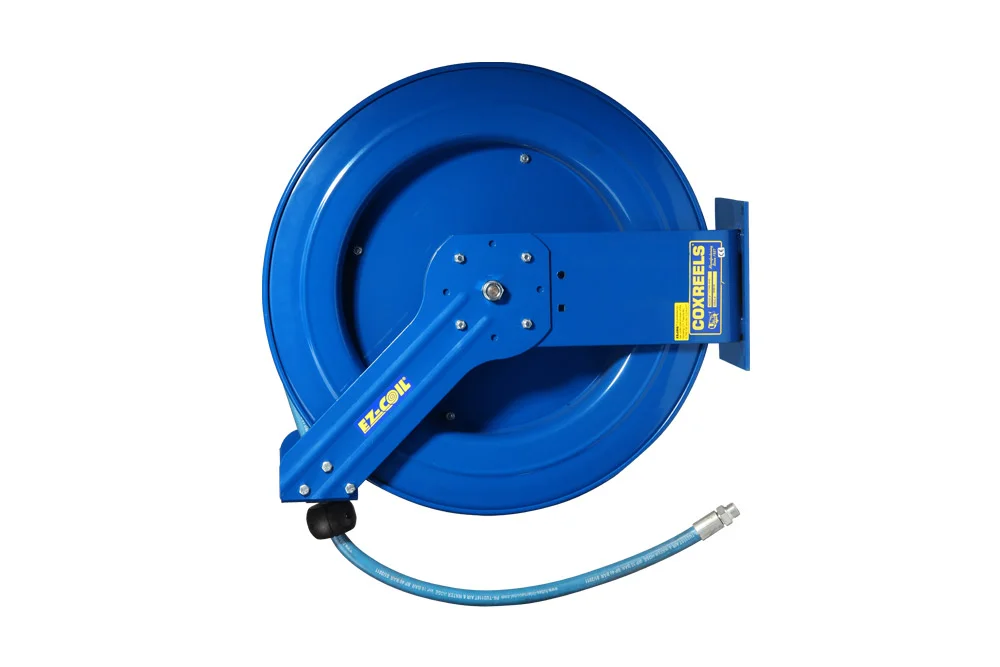

EZ-COIL T-series hose reel winder TU2116T, carbon steel
Steel drum powder-coated, intended for the chemical industry, manufacturing plants, repair workshops, etc. It features a unique EZ-Coil® spring mechanism that allows for automatic hose retraction up to 80% slower than traditional spring systems. This system enhances operator safety, extends the lifespan of the drum, swivel coupling, and hose. The drum is equipped with a TUBES 2116 T hose with an inner diameter of 13 mm, for the transmission of air and water, ending with a GZ 1/2″ BSP fitting. The mounted bumper prevents the hose from retracting. Drum material: carbon steel. Swivel coupling material: brass. Fittings, adapters, and sleeves: carbon steel. Operating temperature: up to +65°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| TU-01-11-2874 | EZ TSHL drum with hose TU2116 DN13 Lc=30m | 12 | 10 |
Steel drum powder-coated, intended for the chemical industry, manufacturing plants, repair workshops, etc. It features a unique EZ-Coil® spring mechanism that allows for automatic hose retraction up to 80% slower than traditional spring systems. This system enhances operator safety, extends the lifespan of the drum, swivel coupling, and hose. The drum is equipped with a TUBES 2116 T hose with an inner diameter of 13 mm, for the transmission of air and water, ending with a GZ 1/2″ BSP fitting. The mounted bumper prevents the hose from retracting. Drum material: carbon steel. Swivel coupling material: brass. Fittings, adapters, and sleeves: carbon steel. Operating temperature: up to +65°C.
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Maximum operating temperature [°C] | 65 |
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Maximum operating temperature [°C] | 65 |
