PNEULIGHT wheel inflation gun
Functional and ergonomic air pump gun for inflating wheels – without calibration. For all standard tire valves VG 8 (passenger cars, motorcycles, bicycles, etc.). Equipped with a 63 mm analog manometer (accuracy class – 1.6) in a rubber shield with a dual measurement scale (bar, psi). The lightweight and handy gun body is made of high-strength plastic. Wheel inflation occurs by pressing the lever, while deflation is done with a separate button located on the gun body (A). A 500 mm rubber hose with a swivel coupling is used for connecting to the wheel. Gun material: blue polyamide (PA6 GK30) reinforced with fiberglass (body, lever), Hostaform@ C (piston). Sealing: NBR, PU. Working pressure: 10 bar (recommended: 4 ÷ 6 bar). Operating temperature: from -10°C to +50°C.
List of product variants

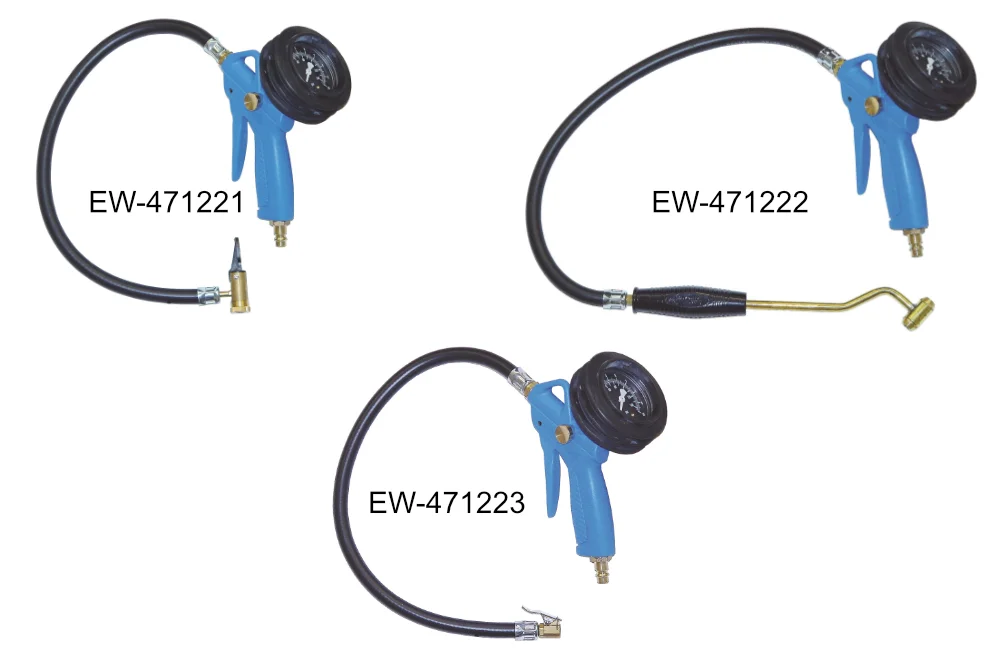

| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| EW-471221 | Pump gun. PNEULIGHT, no caliber, lever tip, DN7.2 plug. | - | 10 | |
| EW-471222 | Pump gun. PNEULIGHT, no caliber, dual plug end, DN7.2 plug. | - | 10 | |
| EW-471223 | Pump gun. PNEULIGHT, no caliber, clamp end, plug DN7.2 | - | 10 |
