Is the Flat gasket for SUPERCAT flanges, NBR compatible with fuel and oil applications?

Flat gasket for SUPERCAT flanges, NBR . compatibility with fuel and oil: NBR (nitrile rubber) is widely used for seals and gaskets in applications involving oils, fuels, and hydrocarbons due to its good resistance to mineral oils, gasoline, diesel and lubricants. Therefore Flat gasket for SUPERCAT flanges, NBR is generally compatible with fuel and oil applications, provided operating conditions remain within typical NBR limits: temperature roughly -30Â°C to +100Â°C (short peaks up to ~120Â°C may be possible), and exposure to alkylates, aliphatic hydrocarbons and hydraulic oils. However, NBR has poor resistance to certain chemicals (aromatic hydrocarbons, strong acids/alkalis, ketones, esters) and to prolonged high temperatures, ozone and weathering. For critical or prolonged fuel/oil exposure, high temperatures, aggressive additives, or uncertain chemical composition, verify compatibility with supplier data sheets, perform application-specific testing, or consider alternative materials (e.g., FKM/Viton) if needed.

Can the Flat gasket for SUPERCAT flanges, NBR withstand temperatures above 100Â°C during continuous operation?

Flat gasket for SUPERCAT flanges, NBR cannot reliably withstand continuous operation above 100Â°C. NBR (nitrile rubber) typically has an upper continuous service limit around 80â100Â°C depending on formulation and loading; prolonged exposure above 100Â°C accelerates thermal degradation, loss of elasticity and sealing ability. Short-term peaks somewhat above 100Â°C may be tolerated, but for continuous service at or above 100Â°C choose a gasket material rated for higher temperatures (e.g., EPDM, FKM/Viton, graphite) and verify with manufacturer specifications.

Does the Flat gasket for SUPERCAT flanges, NBR meet industry standards for pressure ratings and leak prevention?

Yes. the Flat gasket for SUPERCAT flanges, NBR generally meets common industry expectations for pressure ratings and leak prevention when used within its material limits. NBR (nitrile rubber) offers good resistance to oils, fuels, and moderate pressures, providing effective sealing for many industrial flange applications. Its elastomeric nature allows the Flat gasket for SUPERCAT flanges, NBR to conform to flange surfaces, filling imperfections and maintaining a reliable seal under typical operating pressures and temperatures suited to NBR (generally up to ~100â120Â°C, and often rated for low to moderate pressures depending on flange class and gasket thickness). However, compliance with specific industry standards and pressure ratings depends on several factors: the exact NBR formulation, gasket thickness and dimensions, flange class and bolt load, installation quality, and the operating media and temperature. For high-pressure systems, aggressive chemicals, elevated temperatures above NBRâs service range, or critical leak-tightness requirements, alternative gasket materials or certified products may be necessary. Always verify manufacturer specifications, pressure/temperature ratings, and any applicable standards (e.g., ASME, EN) for the particular Flat gasket for SUPERCAT flanges, NBR variant before use.

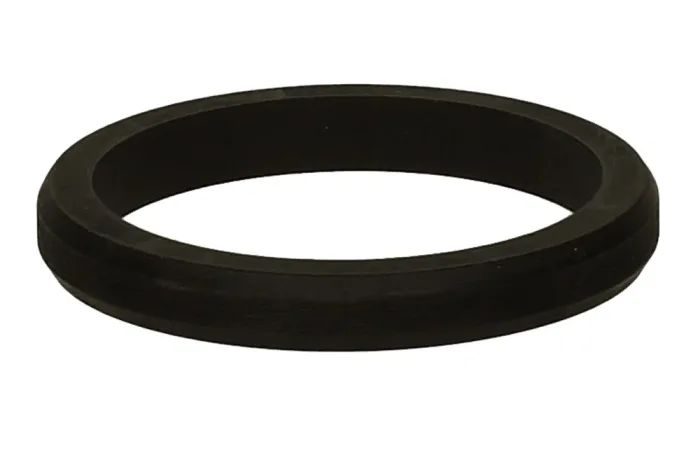

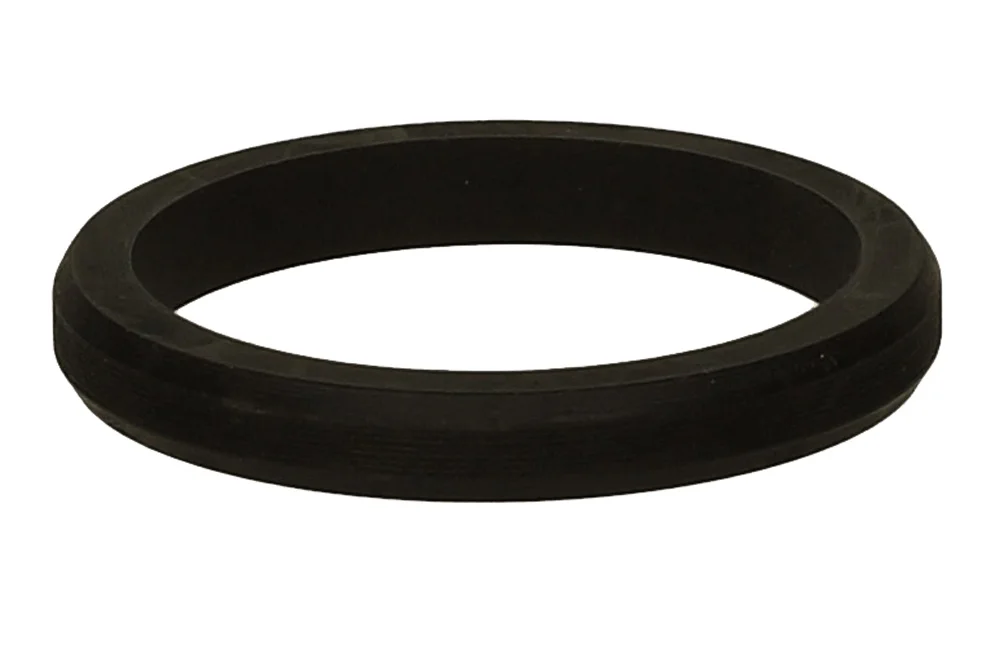

Flat gasket for SUPERCAT flanges, NBR

All products, Fittings for high-pressure hoses/

Additional information

Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-30

Flat gasket for SUPERCAT flanges. Material: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-USK110-12CAT	Flat gasket 25.4x3.5x5 mm, NBR	-	-	In stock	Enquiry
TI-USK110-16CAT	Flat gasket 31.8x3.5x5 mm, NBR	-	-	In stock	Enquiry
TI-USK110-20CAT	Flat gasket 38.1x3.5x5 mm, NBR	-	-	In stock	Enquiry
TI-USK110-24CAT	Flat gasket 44.5x3.5x5 mm, NBR	-	-	In stock	Enquiry
TI-USK110-32CAT	Flat gasket 63.9x3.5x5 mm, NBR	-	-	In stock	Enquiry
