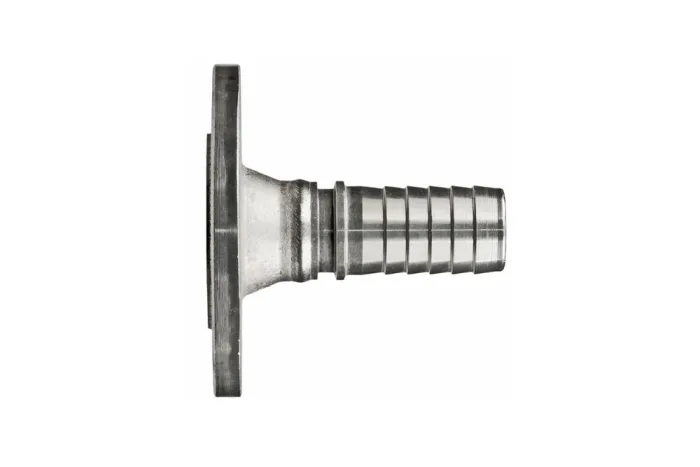

FSS fixed flange end for steam hose to EN 14473, stainless steel
FSS end with a fixed flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: stainless steel AISI 316. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| RS-FSA1-015-013-SS | FSS end with fixed collar ASA 1/2", hose 1/2", AISI 316 | 12 | 18 | |
| RS-FSA1-020-019-SS | FSS end with fixed collar ASA 3/4", hose 3/4", AISI 316 | 20 | 18 | |
| RS-FSA1-025-025-SS | FSS end with fixed collar ASA 1", hose 1", AISI 316 | 25 | 18 | |
| RS-FSA1-032-032-SS | FSS end with fixed collar ASA 1.1/4", hose 1.1/4", AISI 316 | 32 | 18 | |
| RS-FSA1-040-038-SS | FSS end with fixed collar ASA 1.1/2", hose 1.1/2", AISI 316 | 38 | 18 | |
| RS-FSA1-050-050-SS | FSS end with fixed collar ASA 2", hose 2", AISI 316 | 50 | 18 | |
| RS-FSA3-015-013-SS | FSS end with fixed collar ASA 300 1/2", hose 1/2", AISI 316 | 12 | 18 | |
| RS-FSA3-020-019-SS | FSS end with fixed collar ASA 300 3/4", hose 3/4", AISI 316 | 20 | 18 | |
| RS-FSA3-025-025-SS | FSS end with fixed collar ASA 300 1", hose 1", AISI 316 | 25 | 18 | |
| RS-FSA3-032-032-SS | FSS end with fixed collar ASA 300 1.1/4", hose 1.1/4", AISI 316 | 32 | 18 | |
| RS-FSA3-040-038-SS | FSS end with fixed collar ASA 300 1.1/2", hose 1.1/2", AISI 316 | 38 | 18 | |
| RS-FSA3-050-050-SS | FSS end with fixed collar ASA 300 2", hose 2", AISI 316 | 50 | 18 | |
| RS-FSS1-015-013-SS | FSS end with fixed collar DN15 PN40, hose 1/2", AISI 316 | 12 | 18 | |
| RS-FSS1-020-019-SS | FSS end with fixed collar DN20 PN40, hose 3/4", AISI 316 | 20 | 18 | |
| RS-FSS1-025-019-SS | FSS end with fixed collar DN25 PN40, hose 3/4", AISI 316 | 20 | 18 | |
| RS-FSS1-025-025-SS | FSS end with fixed collar DN25 PN40, hose 1", AISI 316 | 25 | 18 | |
| RS-FSS1-032-032-SS | FSS end with fixed flange DN32 PN40, hose 1.1/4", AISI 316 | 32 | 18 | |
| RS-FSS1-040-038-SS | FSS end with fixed flange DN40 PN40, hose 1.1/2", AISI 316 | 38 | 18 | |
| RS-FSS1-050-050-SS | FSS end with fixed flange DN50 PN16, hose 2", AISI 316 | 50 | 18 | |
| RS-FSS3-050-050-SS | FSS end with fixed flange DN50 PN40, hose 2", AISI 316 | 50 | 18 |
FSS end with a fixed flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: stainless steel AISI 316. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
Additional information
| Material | SS – stainless steel |
|---|
Additional information
| Material | SS – stainless steel |
|---|
