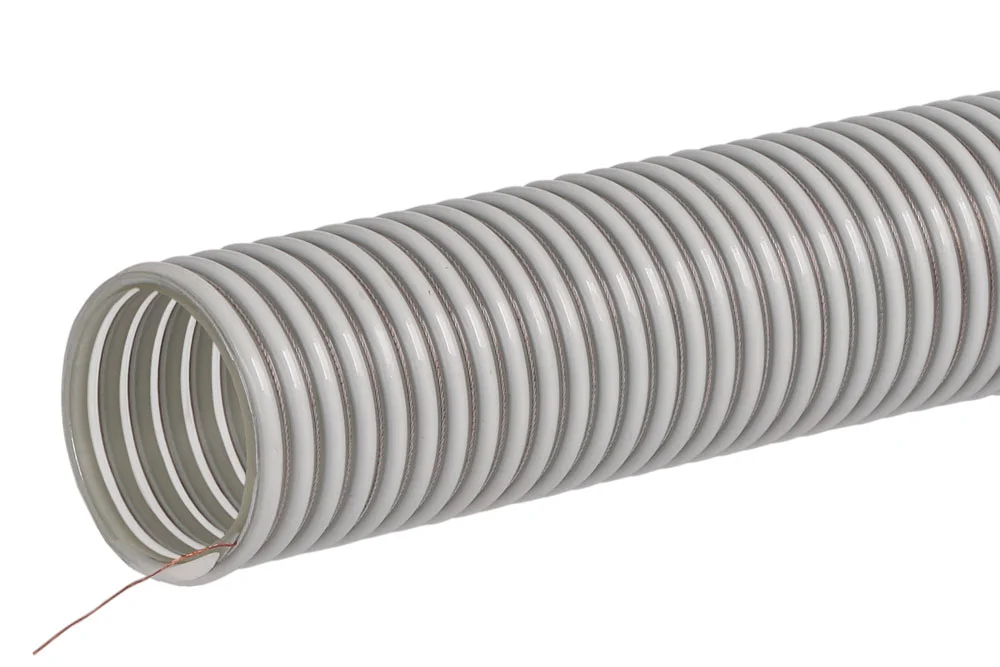

Abrasion-Resistant PU Suction Hose with Copper Wire for Plastics, Granules & Abrasives, Smooth Interior, Corrugated Exterior, -5°C to +60°C
Strong suction hose designed for the transfer of dry or liquid abrasive substances, granules, etc. Externally corrugated, internally smooth. The inner layer is made of transparent, abrasion-resistant polyurethane. The hose features a copper wire arranged in a spiral, which discharges electric charges when grounded or connected to a fitting. Widely used in plastic processing in applications requiring greater resistance to abrasion, puncturing, and cutting of the hose. Particularly recommended for plastic regrind with relatively sharp edges. Inner layer: transparent polyurethane. Reinforcement: hard PVC spiral. Hose material: transparent PVC. Working pressure: from 3 bar to 7 bar – depending on the hose diameter and temperature. Vacuum: from 0.69 bar to 0.74 bar – depending on the hose diameter and temperature. Operating temperature: from -5°C to +60°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| AP-APD120-PUAS-032 | APD120 PU hose 32 mm, antistatic | 32 | 7 | |
| AP-APD120-PUAS-038 | APD120 PU hose 38 mm, antistatic | 38 | 7 | |
| AP-APD120-PUAS-040 | APD120 PU hose 40 mm, antistatic | 40 | 7 | |
| AP-APD120-PUAS-045 | APD120 PU hose 45 mm, antistatic | 45 | 6 | |
| AP-APD120-PUAS-051 | APD120 PU hose 51 mm, antistatic | 50 | 6 | |
| AP-APD120-PUAS-060 | APD120 PU hose 60 mm, antistatic | 60 | 6 | |
| AP-APD120-PUAS-065 | APD120 PU hose 65 mm, antistatic | 65 | 5 | |
| AP-APD120-PUAS-070 | APD120 PU hose 70 mm, antistatic | 70 | 5 | |
| AP-APD120-PUAS-075 | APD120 PU hose 75 mm, antistatic | 75 | 4 | |
| AP-APD120-PUAS-102 | APD120 PU hose 102 mm, antistatic | 100 | 3 |
Strong suction hose designed for the transfer of dry or liquid abrasive substances, granules, etc. Externally corrugated, internally smooth. The inner layer is made of transparent, abrasion-resistant polyurethane. The hose features a copper wire arranged in a spiral, which discharges electric charges when grounded or connected to a fitting. Widely used in plastic processing in applications requiring greater resistance to abrasion, puncturing, and cutting of the hose. Particularly recommended for plastic regrind with relatively sharp edges. Inner layer: transparent polyurethane. Reinforcement: hard PVC spiral. Hose material: transparent PVC. Working pressure: from 3 bar to 7 bar – depending on the hose diameter and temperature. Vacuum: from 0.69 bar to 0.74 bar – depending on the hose diameter and temperature. Operating temperature: from -5°C to +60°C.
Additional information
| Material | PU – polyurethane |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -5 |
| Vacuum resistance | yes |
| Standard length [m] | 30 |
| Reinforcement | PVC spiral |
Additional information
| Material | PU – polyurethane |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -5 |
| Vacuum resistance | yes |
| Standard length [m] | 30 |
| Reinforcement | PVC spiral |
