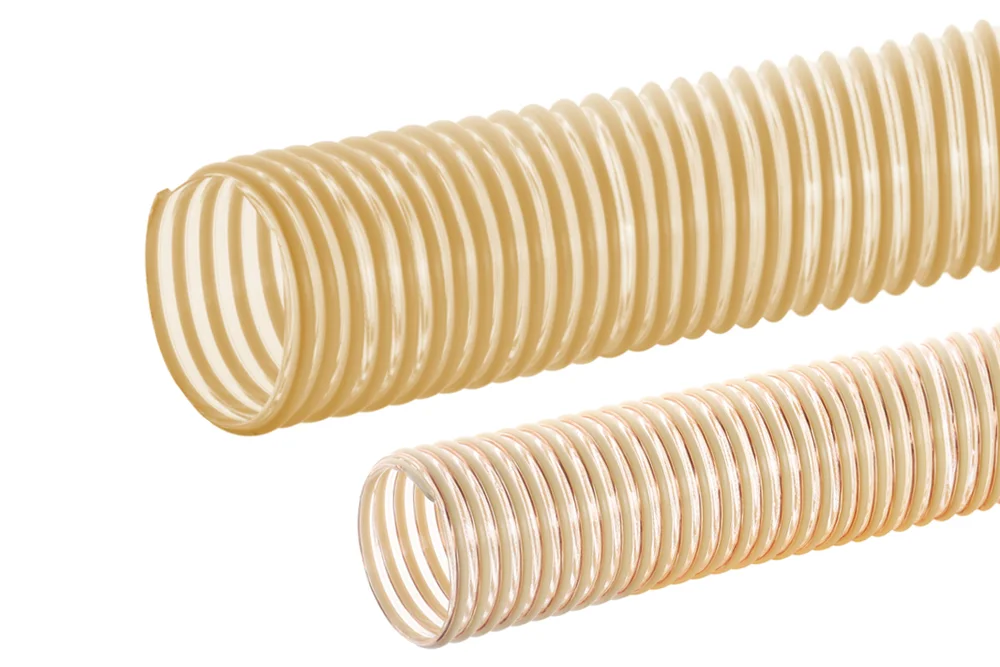

Flexible Antistatic PU Hose for Food, Dust, and Granules – Abrasion Resistant, Crush Proof, FDA & EU Compliant, -40°C to +80°C
Light, flexible, bendable, and almost smooth inside hose designed for the extraction and transport of dust, powders, granules, grains, flakes, and similar lightweight materials with abrasive properties. Made from polyether-polyurethane, it has good resistance to abrasion, ozone, weather conditions, hydrolysis, and biological corrosion. Suitable for contact with food for the transport of bulk and liquid food materials, including fatty or oily substances. Not recommended for milk and its derivatives. Reinforcement with a hard PVC spiral provides good crush resistance. The antistatic version of the hose features a copper antistatic wire embedded on the outer side of the hose along the reinforcing spiral. Effective grounding of the wire ensures a sufficient level of electrostatic charge dissipation for many applications. Particularly used in the agri-food industry, plastics, building materials, etc. The WIND STAR PU hose complies with European requirements 10/2011/EU (simulants A, B, C, D2, and E) and American FDA 21 CFR 177.2600 “d”, “e”, “f” (dry, liquid-water, fatty). Additional information regarding food and pharmaceutical applications – see the section “Hoses for food products.” Hose material: transparent polyether-polyurethane. Reinforcement: hard PVC spiral. Operating temperature: from -40°C to +80°C (working pressure dependent on temperature).
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
SO-WINDSTAR-PU-020 | Hose WIND STAR PU 20 mm | 20 | - | |
SO-WINDSTAR-PU-025 | Hose WIND STAR PU 25 mm | 25 | - | |
SO-WINDSTAR-PU-030 | WIND STAR PU hose 30 mm | 30 | - | |
SO-WINDSTAR-PU-032 | WIND STAR PU hose 32 mm | 32 | - | |
SO-WINDSTAR-PU-035 | WIND STAR PU hose 35 mm | 35 | - | |
SO-WINDSTAR-PU-038 | WIND STAR PU hose 38 mm | 38 | - | |
SO-WINDSTAR-PU-040 | WIND STAR PU hose 40 mm | 40 | - | |
SO-WINDSTAR-PU-045 | WIND STAR PU hose 45 mm | 45 | - | |
SO-WINDSTAR-PU-051 | Hose WIND STAR PU 51 mm | 50 | - | |
SO-WINDSTAR-PU-060 | Hose WIND STAR PU 60 mm | 60 | - | |
SO-WINDSTAR-PU-063 | WIND STAR PU hose 63 mm | 65 | - | |
SO-WINDSTAR-PU-070 | WIND STAR PU hose 70 mm | 70 | - | |
SO-WINDSTAR-PU-076 | WIND STAR PU hose 76 mm | 75 | - | |
SO-WINDSTAR-PU-080 | Hose WIND STAR PU 80 mm | 80 | - | |
SO-WINDSTAR-PU-090 | WIND STAR PU hose 90 mm | 90 | - | |
SO-WINDSTAR-PU-100 | Hose WIND STAR PU 100 mm | 100 | - | |
SO-WINDSTAR-PU-102 | Hose WIND STAR PU 102 mm | 100 | - | |
SO-WINDSTAR-PU-110 | WIND STAR PU hose 110 mm | 110 | - | |
SO-WINDSTAR-PU-120 | Hose WIND STAR PU 120 mm | 120 | - | |
SO-WINDSTAR-PU-127 | WIND STAR PU hose 127 mm | 125 | - | |
SO-WINDSTAR-PU-130 | Hose WIND STAR PU 130 mm | 130 | - | |
SO-WINDSTAR-PU-140 | Hose WIND STAR PU 140 mm | 140 | - | |
SO-WINDSTAR-PU-150 | WIND STAR PU hose 150 mm | 150 | - | |
SO-WINDSTAR-PU-152 | WIND STAR PU hose 152 mm | 150 | - | |
SO-WINDSTAR-PU-160 | Hose WIND STAR PU 160 mm | 160 | - | |
SO-WINDSTAR-PU-180 | Hose WIND STAR PU 180 mm | 180 | - | |
SO-WINDSTAR-PU-200 | Hose WIND STAR PU 200 mm | 200 | - | |
SO-WINDSTAR-PU-250 | Hose WIND STAR PU 250 mm | 250 | - | |
SO-WINDSTAR-PU-300 | Hose WIND STAR PU 300 mm | 300 | - | |
SO-WINDSTAR-PUAS-030 | WIND STAR PU hose 30 mm, antistatic | 30 | - | |
SO-WINDSTAR-PUAS-032 | WIND STAR PU hose 32 mm, antistatic | 32 | - | |
SO-WINDSTAR-PUAS-035 | WIND STAR PU hose 35 mm, antistatic | 35 | - | |
SO-WINDSTAR-PUAS-038 | WIND STAR PU hose 38 mm, antistatic | 38 | - | |
SO-WINDSTAR-PUAS-040 | WIND STAR PU hose 40 mm, antistatic | 40 | - | |
SO-WINDSTAR-PUAS-045 | WIND STAR PU hose 45 mm, antistatic | 45 | - | |
SO-WINDSTAR-PUAS-051 | WIND STAR PU hose 51 mm, antistatic | 50 | - | |
SO-WINDSTAR-PUAS-060 | WIND STAR PU hose 60 mm, antistatic | 60 | - | |
SO-WINDSTAR-PUAS-063 | WIND STAR PU hose 63 mm, antistatic | 65 | - | |
SO-WINDSTAR-PUAS-070 | WIND STAR PU hose 70 mm, antistatic | 70 | - | |
SO-WINDSTAR-PUAS-076 | WIND STAR PU hose 76 mm, antistatic | 75 | - | |
SO-WINDSTAR-PUAS-080 | WIND STAR PU hose 80 mm, antistatic | 80 | - | |
SO-WINDSTAR-PUAS-090 | WIND STAR PU hose 90 mm, antistatic | 90 | - | |
SO-WINDSTAR-PUAS-100 | WIND STAR PU hose 100 mm, antistatic | 100 | - | |
SO-WINDSTAR-PUAS-102 | WIND STAR PU hose 102 mm, antistatic | 100 | - | |
SO-WINDSTAR-PUAS-110 | WIND STAR PU hose 110 mm, antistatic | 110 | - | |
SO-WINDSTAR-PUAS-120 | WIND STAR PU hose 120 mm, antistatic | 120 | - | |
SO-WINDSTAR-PUAS-127 | WIND STAR PU hose 127 mm, antistatic | 130 | - | |
SO-WINDSTAR-PUAS-130 | WIND STAR PU hose 130 mm, antistatic | 130 | - | |
SO-WINDSTAR-PUAS-140 | WIND STAR PU hose 140 mm, antistatic | 140 | - | |
SO-WINDSTAR-PUAS-150 | WIND STAR PU hose 150 mm, antistatic | 150 | - | |
SO-WINDSTAR-PUAS-152 | WIND STAR PU hose 152 mm, antistatic | 150 | - | |
SO-WINDSTAR-PUAS-160 | WIND STAR PU hose 160 mm, antistatic | 160 | - | |
SO-WINDSTAR-PUAS-180 | Hose WIND STAR PU 180 mm, antistatic | 180 | - | |
SO-WINDSTAR-PUAS-200 | WIND STAR PU hose 200 mm, antistatic | 200 | - | |
SO-WINDSTAR-PUAS-250 | Hose WIND STAR PU 250 mm, antistatic | 250 | - | |
SO-WINDSTAR-PUAS-300 | Hose WIND STAR PU 300 mm, antistatic | 300 | - |
Light, flexible, bendable, and almost smooth inside hose designed for the extraction and transport of dust, powders, granules, grains, flakes, and similar lightweight materials with abrasive properties. Made from polyether-polyurethane, it has good resistance to abrasion, ozone, weather conditions, hydrolysis, and biological corrosion. Suitable for contact with food for the transport of bulk and liquid food materials, including fatty or oily substances. Not recommended for milk and its derivatives. Reinforcement with a hard PVC spiral provides good crush resistance. The antistatic version of the hose features a copper antistatic wire embedded on the outer side of the hose along the reinforcing spiral. Effective grounding of the wire ensures a sufficient level of electrostatic charge dissipation for many applications. Particularly used in the agri-food industry, plastics, building materials, etc. The WIND STAR PU hose complies with European requirements 10/2011/EU (simulants A, B, C, D2, and E) and American FDA 21 CFR 177.2600 “d”, “e”, “f” (dry, liquid-water, fatty). Additional information regarding food and pharmaceutical applications – see the section “Hoses for food products.” Hose material: transparent polyether-polyurethane. Reinforcement: hard PVC spiral. Operating temperature: from -40°C to +80°C (working pressure dependent on temperature).
Additional information
Material | PU – polyurethane |
---|---|
Maximum operating temperature [°C] | 80 |
Minimum operating temperature [°C] | -40 |
Vacuum resistance | yes |
Standard length [m] | 10, 20, 30 |
Reinforcement | PVC spiral |
Additional information
Material | PU – polyurethane |
---|---|
Maximum operating temperature [°C] | 80 |
Minimum operating temperature [°C] | -40 |
Vacuum resistance | yes |
Standard length [m] | 10, 20, 30 |
Reinforcement | PVC spiral |
